TAO_Notify_EventChannelFactory Class Reference

Implementation of CosNotifyChannelAdmin::EventChannelFactory. More...

#include <EventChannelFactory.h>

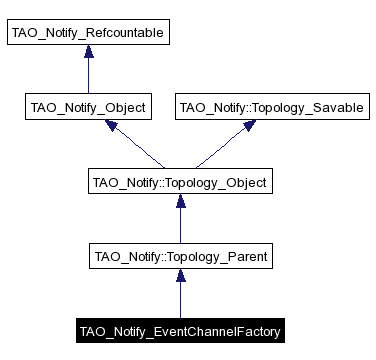

Inheritance diagram for TAO_Notify_EventChannelFactory:

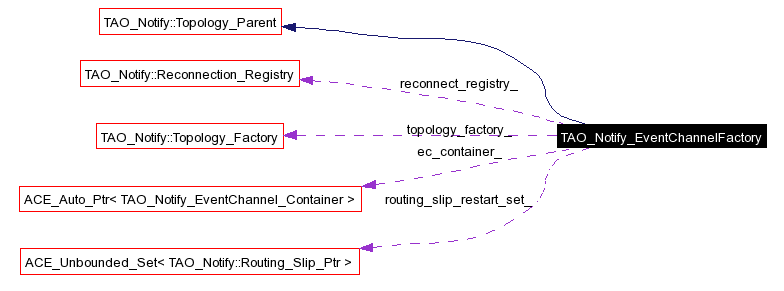

[legend]Collaboration diagram for TAO_Notify_EventChannelFactory:

[legend]List of all members.


Public Types
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_EventChannelFactory >	Ptr
Public Member Functions
	TAO_Notify_EventChannelFactory (void)
	Constuctor.
void	init (PortableServer::POA_ptr poa)
	Init the factory.
virtual	~TAO_Notify_EventChannelFactory ()
	Destructor.
virtual void	_add_ref ()
	= ServantBase Methods
virtual void	_remove_ref ()
void	remove (TAO_Notify_EventChannel *channel)
	Remove <channel> from the <ec_container_>.
virtual CosNotifyFilter::FilterFactory_ptr	get_default_filter_factory ()
	Accesor for the default filter factory shared by all EC's.
void	load_topology ()
void	set_topology_factory (TAO_Notify::Topology_Factory *sf)
virtual bool	is_persistent () const
	Should this object be saved?
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)
virtual bool	change_to_parent ()
	Send change to parent.
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
CosNotifyChannelAdmin::EventChannelFactory_ptr	activate_self ()
virtual void	reconnect ()
bool	handle_change ()
	handle change notifications
void	load_event_persistence ()
virtual void	save_topology () throw (CORBA::SystemException)
TAO_Notify_ProxyConsumer *	find_proxy_consumer (TAO_Notify::IdVec &id_path, size_t position)
TAO_Notify_ProxySupplier *	find_proxy_supplier (TAO_Notify::IdVec &id_path, size_t position)
TAO_Notify_Object *	follow_id_path (TAO_Notify::IdVec &id_path, size_t position)
virtual TAO_Notify_Object::ID	get_id () const
	Find the id associated with topology object.
Private Types
typedef ACE_Unbounded_Set< TAO_Notify::Routing_Slip_Ptr >	Routing_Slip_Set
typedef TAO_Notify_Container_T< TAO_Notify_EventChannel >	TAO_Notify_EventChannel_Container
Private Member Functions
virtual void	destroy () throw ( CORBA::SystemException )
	= NotifyExt methods
virtual int	shutdown ()
	shutdown
virtual NotifyExt::ReconnectionRegistry::ReconnectionID	register_callback (NotifyExt::ReconnectionCallback_ptr reconnection) throw (CORBA::SystemException)
virtual void	unregister_callback (NotifyExt::ReconnectionRegistry::ReconnectionID id) throw (CORBA::SystemException)
virtual CORBA::Boolean	is_alive () throw (CORBA::SystemException)
virtual ::CosNotifyChannelAdmin::EventChannel_ptr	create_channel (const CosNotification::QoSProperties &initial_qos, const CosNotification::AdminProperties &initial_admin, CosNotifyChannelAdmin::ChannelID_out id) throw (CORBA::SystemException, CosNotification::UnsupportedQoS, CosNotification::UnsupportedAdmin)
	= CosNotifyChannelAdmin Methods
virtual ::CosNotifyChannelAdmin::ChannelIDSeq *	get_all_channels () throw (CORBA::SystemException)
virtual ::CosNotifyChannelAdmin::EventChannel_ptr	get_event_channel (CosNotifyChannelAdmin::ChannelID id) throw (CORBA::SystemException, CosNotifyChannelAdmin::ChannelNotFound)
TAO_Notify_EventChannel_Container &	ec_container ()
virtual void	release (void)
	Release this object.
Private Attributes
CosNotifyFilter::FilterFactory_var	default_filter_factory_
	= Data Members The default filter factory.
ACE_Auto_Ptr< TAO_Notify_EventChannel_Container >	ec_container_
	Container for Event Channels.
TAO_SYNCH_MUTEX	topology_save_lock_
CosNotifyChannelAdmin::EventChannelFactory_var	channel_factory_
short	topology_save_seq_
	change-in-progress detector to avoid duplicates
TAO_Notify::Topology_Factory *	topology_factory_
TAO_Notify::Reconnection_Registry	reconnect_registry_
bool	loading_topology_
Routing_Slip_Set	routing_slip_restart_set_
Friends
class	TAO_Notify_Builder

Detailed Description

Implementation of CosNotifyChannelAdmin::EventChannelFactory.

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_EventChannelFactory > TAO_Notify_EventChannelFactory::Ptr

Reimplemented from TAO_Notify_Refcountable.

typedef ACE_Unbounded_Set<TAO_Notify::Routing_Slip_Ptr> TAO_Notify_EventChannelFactory::Routing_Slip_Set [private]

typedef TAO_Notify_Container_T<TAO_Notify_EventChannel> TAO_Notify_EventChannelFactory::TAO_Notify_EventChannel_Container [private]

Constructor & Destructor Documentation

TAO_Notify_EventChannelFactory::TAO_Notify_EventChannelFactory ( void )

Constuctor.

TAO_Notify_EventChannelFactory::~TAO_Notify_EventChannelFactory ( ) [virtual]

Destructor.

Member Function Documentation

virtual void TAO_Notify_EventChannelFactory::_add_ref ( ) [virtual]

= ServantBase Methods

virtual void TAO_Notify_EventChannelFactory::_remove_ref ( ) [virtual]

CosNotifyChannelAdmin::EventChannelFactory_ptr TAO_Notify_EventChannelFactory::activate_self ( )

bool TAO_Notify_EventChannelFactory::change_to_parent ( ) [virtual]

Send change to parent.
Override this if you don't expect to have a parent (top level of tree) private virtual because this should only be called from send_change()
Returns:
false if save will never happen

Reimplemented from TAO_Notify::Topology_Object.

CosNotifyChannelAdmin::EventChannel_ptr TAO_Notify_EventChannelFactory::create_channel ( const CosNotification::QoSProperties & initial_qos,

const CosNotification::AdminProperties & initial_admin,

CosNotifyChannelAdmin::ChannelID_out id

) throw (CORBA::SystemException, CosNotification::UnsupportedQoS, CosNotification::UnsupportedAdmin) [private]

= CosNotifyChannelAdmin Methods

void TAO_Notify_EventChannelFactory::destroy ( ) throw ( CORBA::SystemException ) [private, virtual]

= NotifyExt methods

TAO_Notify_EventChannelFactory::TAO_Notify_EventChannel_Container & TAO_Notify_EventChannelFactory::ec_container ( ) [private]

TAO_Notify_ProxyConsumer * TAO_Notify_EventChannelFactory::find_proxy_consumer ( TAO_Notify::IdVec & id_path,

size_t position

)

TAO_Notify_ProxySupplier * TAO_Notify_EventChannelFactory::find_proxy_supplier ( TAO_Notify::IdVec & id_path,

size_t position

)

TAO_Notify_Object* TAO_Notify_EventChannelFactory::follow_id_path ( TAO_Notify::IdVec & id_path,

size_t position

)

CosNotifyChannelAdmin::ChannelIDSeq * TAO_Notify_EventChannelFactory::get_all_channels ( ) throw (CORBA::SystemException) [private]

virtual CosNotifyFilter::FilterFactory_ptr TAO_Notify_EventChannelFactory::get_default_filter_factory ( ) [virtual]

Accesor for the default filter factory shared by all EC's.

CosNotifyChannelAdmin::EventChannel_ptr TAO_Notify_EventChannelFactory::get_event_channel ( CosNotifyChannelAdmin::ChannelID id ) throw (CORBA::SystemException, CosNotifyChannelAdmin::ChannelNotFound) [private]

TAO_Notify_Object::ID TAO_Notify_EventChannelFactory::get_id ( ) const [virtual]

Find the id associated with topology object.
A bit of a hack because id is unknown to Topology_Object the get_id returns the same thing as id -- we just need someone to find it for us.
Reimplemented from TAO_Notify::Topology_Object.

bool TAO_Notify_EventChannelFactory::handle_change ( )

handle change notifications

void TAO_Notify_EventChannelFactory::init ( PortableServer::POA_ptr poa )

Init the factory.

virtual CORBA::Boolean TAO_Notify_EventChannelFactory::is_alive ( ) throw (CORBA::SystemException) [private, virtual]

bool TAO_Notify_EventChannelFactory::is_persistent ( ) const [virtual]

Should this object be saved?
This is a way for send_change() and save_persistent() to find out if this object has a persistent QoS connection property.
Returns:
true (default) if object should be saved.

Reimplemented from TAO_Notify::Topology_Object.

TAO_Notify::Topology_Object * TAO_Notify_EventChannelFactory::load_child ( const ACE_CString & type,

CORBA::Long id,

const TAO_Notify::NVPList & attrs

) [virtual]

void TAO_Notify_EventChannelFactory::load_event_persistence ( )

void TAO_Notify_EventChannelFactory::load_topology ( )

Use the registered Topology_Factory to create a loader, and load the topology. If no Topology_Factory is registered then nothing will be loaded.

void TAO_Notify_EventChannelFactory::reconnect ( ) [virtual]

NotifyExt::ReconnectionRegistry::ReconnectionID TAO_Notify_EventChannelFactory::register_callback ( NotifyExt::ReconnectionCallback_ptr reconnection ) throw (CORBA::SystemException) [private, virtual]

void TAO_Notify_EventChannelFactory::release ( void ) [private, virtual]

Release this object.

Implements TAO_Notify_Refcountable.

void TAO_Notify_EventChannelFactory::remove ( TAO_Notify_EventChannel * channel )

Remove <channel> from the <ec_container_>.

void TAO_Notify_EventChannelFactory::save_persistent ( TAO_Notify::Topology_Saver & saver ) [virtual]

void TAO_Notify_EventChannelFactory::save_topology ( ) throw (CORBA::SystemException) [virtual]

void TAO_Notify_EventChannelFactory::set_topology_factory ( TAO_Notify::Topology_Factory * sf )

Use the passed in saver factory to generate topology saver objects. Does not take ownership.

int TAO_Notify_EventChannelFactory::shutdown ( ) [private, virtual]

shutdown

Reimplemented from TAO_Notify_Object.

void TAO_Notify_EventChannelFactory::unregister_callback ( NotifyExt::ReconnectionRegistry::ReconnectionID id ) throw (CORBA::SystemException) [private, virtual]
