TAO_StreamCtrl Class Reference

Implementation the A/V StreamCtrl class. this class is used to control the stream. It should be subclassed by applications that want to provide more control features. More...

#include <AVStreams_i.h>

Inheritance diagram for TAO_StreamCtrl:

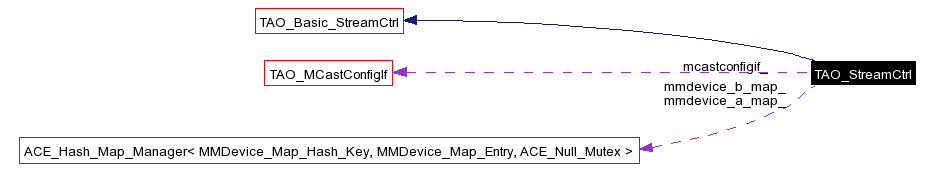

[legend]Collaboration diagram for TAO_StreamCtrl:

[legend]List of all members.


Public Member Functions
	TAO_StreamCtrl (void)
	Default Constructor.
virtual	~TAO_StreamCtrl (void)
	virtual destructor.
virtual void	stop (const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::noSuchFlow)
virtual void	start (const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::noSuchFlow)
virtual void	destroy (const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::noSuchFlow)
virtual CORBA::Boolean	bind_devs (AVStreams::MMDevice_ptr a_party, AVStreams::MMDevice_ptr b_party, AVStreams::streamQoS &the_qos, const AVStreams::flowSpec &the_flows ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::streamOpFailed, AVStreams::noSuchFlow, AVStreams::QoSRequestFailed)
virtual CORBA::Boolean	bind (AVStreams::StreamEndPoint_A_ptr a_party, AVStreams::StreamEndPoint_B_ptr b_party, AVStreams::streamQoS &the_qos, const AVStreams::flowSpec &the_flows ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::streamOpFailed, AVStreams::noSuchFlow, AVStreams::QoSRequestFailed)
virtual void	unbind_dev (AVStreams::MMDevice_ptr dev, const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::streamOpFailed, AVStreams::noSuchFlow)
virtual void	unbind_party (AVStreams::StreamEndPoint_ptr the_ep, const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::streamOpFailed, AVStreams::noSuchFlow)
	Unbind the_ep from the stream. Empty the_spec means apply to all flows.
virtual void	unbind (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::streamOpFailed)
	unbind the stream. Same effect as Basic_StreamCtrl::destroy ()
virtual AVStreams::VDev_ptr	get_related_vdev (AVStreams::MMDevice_ptr adev, AVStreams::StreamEndPoint_out sep ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::streamOpFailed)
virtual CORBA::Boolean	modify_QoS (AVStreams::streamQoS &new_qos, const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::noSuchFlow, AVStreams::QoSRequestFailed)
Protected Types
typedef ACE_Hash_Map_Manager< MMDevice_Map_Hash_Key, MMDevice_Map_Entry, ACE_Null_Mutex >	MMDevice_Map
typedef ACE_Hash_Map_Iterator< MMDevice_Map_Hash_Key, MMDevice_Map_Entry, ACE_Null_Mutex >	MMDevice_Map_Iterator
Protected Attributes
MMDevice_Map	mmdevice_a_map_
MMDevice_Map	mmdevice_b_map_
TAO_MCastConfigIf *	mcastconfigif_
AVStreams::MCastConfigIf_var	mcastconfigif_ptr_
AVStreams::StreamCtrl_var	streamctrl_
CORBA::ULong	source_id_

Detailed Description

Implementation the A/V StreamCtrl class. this class is used to control the stream. It should be subclassed by applications that want to provide more control features.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager<MMDevice_Map_Hash_Key,MMDevice_Map_Entry,ACE_Null_Mutex> TAO_StreamCtrl::MMDevice_Map [protected]

typedef ACE_Hash_Map_Iterator<MMDevice_Map_Hash_Key,MMDevice_Map_Entry,ACE_Null_Mutex> TAO_StreamCtrl::MMDevice_Map_Iterator [protected]

Constructor & Destructor Documentation

TAO_StreamCtrl::TAO_StreamCtrl ( void )

Default Constructor.

TAO_StreamCtrl::~TAO_StreamCtrl ( void ) [virtual]

virtual destructor.

Member Function Documentation

virtual CORBA::Boolean TAO_StreamCtrl::bind ( AVStreams::StreamEndPoint_A_ptr a_party,

AVStreams::StreamEndPoint_B_ptr b_party,

AVStreams::streamQoS & the_qos,

const AVStreams::flowSpec &the_flows ACE_ENV_ARG_DECL_WITH_DEFAULTS

) throw (CORBA::SystemException, AVStreams::streamOpFailed, AVStreams::noSuchFlow, AVStreams::QoSRequestFailed) [virtual]

Establish a connection between two streamendpoints. This can be used if the streamendpoints have been created independent of a MMDevice

virtual CORBA::Boolean TAO_StreamCtrl::bind_devs ( AVStreams::MMDevice_ptr a_party,

AVStreams::MMDevice_ptr b_party,

AVStreams::streamQoS & the_qos,

const AVStreams::flowSpec &the_flows ACE_ENV_ARG_DECL_WITH_DEFAULTS

) throw (CORBA::SystemException, AVStreams::streamOpFailed, AVStreams::noSuchFlow, AVStreams::QoSRequestFailed) [virtual]

Establish a stream between a_party and b_party, with qos the_qos, and for the flows in the_flows if the_flows is empty, bind all the flows Causes a connection to be established between the StreamEndpoints. Returns success/failure

virtual void TAO_StreamCtrl::destroy ( const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, AVStreams::noSuchFlow) [virtual]

Tears down the stream. This will close the connection, and delete the streamendpoint and vdev associated with this stream Empty the_spec means apply operation to all flows
Reimplemented from TAO_Basic_StreamCtrl.

AVStreams::VDev_ptr TAO_StreamCtrl::get_related_vdev ( AVStreams::MMDevice_ptr adev,

AVStreams::StreamEndPoint_out sep ACE_ENV_ARG_DECL_WITH_DEFAULTS

) throw (CORBA::SystemException, AVStreams::streamOpFailed) [virtual]

virtual CORBA::Boolean TAO_StreamCtrl::modify_QoS ( AVStreams::streamQoS & new_qos,

const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS

) throw (CORBA::SystemException, AVStreams::noSuchFlow, AVStreams::QoSRequestFailed) [virtual]

Changes the QoS associated with the stream Empty the_spec means apply operation to all flows
Reimplemented from TAO_Basic_StreamCtrl.

virtual void TAO_StreamCtrl::start ( const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, AVStreams::noSuchFlow) [virtual]

Start the transfer of data in the stream. Empty the_spec means apply operation to all flows
Reimplemented from TAO_Basic_StreamCtrl.

virtual void TAO_StreamCtrl::stop ( const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, AVStreams::noSuchFlow) [virtual]

Stop the transfer of data of the stream Empty the_spec means apply operation to all flows
Reimplemented from TAO_Basic_StreamCtrl.

virtual void TAO_StreamCtrl::unbind ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, AVStreams::streamOpFailed) [virtual]

unbind the stream. Same effect as Basic_StreamCtrl::destroy ()

virtual void TAO_StreamCtrl::unbind_dev ( AVStreams::MMDevice_ptr dev,

const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS

) throw (CORBA::SystemException, AVStreams::streamOpFailed, AVStreams::noSuchFlow) [virtual]

virtual void TAO_StreamCtrl::unbind_party ( AVStreams::StreamEndPoint_ptr the_ep,

const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS

) throw (CORBA::SystemException, AVStreams::streamOpFailed, AVStreams::noSuchFlow) [virtual]

Unbind the_ep from the stream. Empty the_spec means apply to all flows.
