RTCP_SDES_Packet Class Reference

The Source Description packet is sent by all members of a session. At a minimum, the canonical name (or CNAME) is sent with each RTCP packet. Other items such as name, email, or location are included less frequently. More...

#include <RTCP_Packet.h>

Inheritance diagram for RTCP_SDES_Packet:

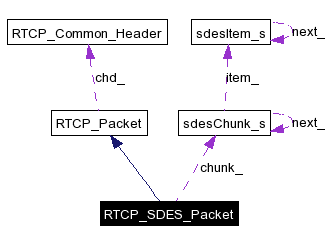

[legend]Collaboration diagram for RTCP_SDES_Packet:

[legend]List of all members.

Public Member Functions
	RTCP_SDES_Packet (char *buffer, int *len)
	Constructor for incoming SDES packets.
	RTCP_SDES_Packet (void)
	Constructor for outgoing SDES packets.
virtual	~RTCP_SDES_Packet (void)
	Destructor.
void	add_item (ACE_UINT32 ssrc, unsigned char type, unsigned char length, const char *data)
void	add_priv_item (ACE_UINT32 ssrc, unsigned char nameLength, const char *name, unsigned char dataLength, const char *data)
unsigned int	packet_size (void)
	Returns the size of the packet in bytes.
void	dump (void)
	Prints the contents of the packet.
ACE_UINT32	ssrc (void)
Private Member Functions
void	build_packet (void)
	Used to create the byte representation of the RTCP packet.
void	add_chunk (ACE_UINT32 ssrc)
	Add a chunk to the packet.
Private Attributes
unsigned long	num_chunks_
sdesChunk_t *	chunk_
	A linked list of chunks for this packet (only 1 for non-mixers).

---

Detailed Description

The Source Description packet is sent by all members of a session. At a minimum, the canonical name (or CNAME) is sent with each RTCP packet. Other items such as name, email, or location are included less frequently.

---

Constructor & Destructor Documentation

RTCP_SDES_Packet::RTCP_SDES_Packet (  char *  buffer, int *  len )

Constructor for incoming SDES packets.

RTCP_SDES_Packet::RTCP_SDES_Packet (  void   )

Constructor for outgoing SDES packets.

RTCP_SDES_Packet::~RTCP_SDES_Packet (  void   )  [virtual]

Destructor.

---

Member Function Documentation

void RTCP_SDES_Packet::add_chunk (  ACE_UINT32  ssrc  )  [private]

Add a chunk to the packet.

void RTCP_SDES_Packet::add_item (  ACE_UINT32  ssrc, unsigned char  type, unsigned char  length, const char *  data )

This will add a standard item of type and length for the ssrc specified. When the first item for a ssrc is added, a chunk is created. Subsequent items for that ssrc are added to the same chunk. New chunks are created for each unique ssrc.

void RTCP_SDES_Packet::add_priv_item (  ACE_UINT32  ssrc, unsigned char  nameLength, const char *  name, unsigned char  dataLength, const char *  data )

This will add a private item using the name and data for the ssrc specified. When the first item for a ssrc is added, a chunk is created. Subsequent items for that ssrc are added to the same chunk. New chunks are created for each unique ssrc.

void RTCP_SDES_Packet::build_packet (  void   )  [private, virtual]

Used to create the byte representation of the RTCP packet. Implements RTCP_Packet.

void RTCP_SDES_Packet::dump (  void   )

Prints the contents of the packet.

unsigned int RTCP_SDES_Packet::packet_size (  void   )  [virtual]

Returns the size of the packet in bytes. Implements RTCP_Packet.

ACE_UINT32 RTCP_SDES_Packet::ssrc (  void   )  [inline]

This returns the synchronization source id for this packet. This assumes that this source is only receiving messages from end systems (i.e. only one source id per SDES)

---

Member Data Documentation

sdesChunk_t* RTCP_SDES_Packet::chunk_ [private]

A linked list of chunks for this packet (only 1 for non-mixers).

unsigned long RTCP_SDES_Packet::num_chunks_ [private]

The number of chunks contained in this packet. 1 for end systems, 1+ for mixers

---

The documentation for this class was generated from the following files:

• RTCP_Packet.h
• RTCP_Packet.cpp

---
