#include <Acceptor.h>

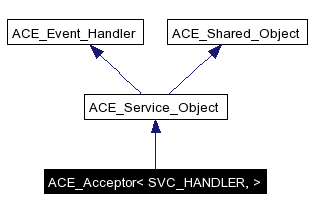

Inheritance diagram for ACE_Acceptor< SVC_HANDLER, >:
Public Types | |
typedef ACE_PEER_ACCEPTOR_ADDR | addr_type |
typedef ACE_PEER_ACCEPTOR | acceptor_type |
typedef SVC_HANDLER | handler_type |
typedef ACE_TYPENAME SVC_HANDLER::stream_type | stream_type |
Public Member Functions | |
ACE_Acceptor (ACE_Reactor *=0, int use_select=1) | |
"Do-nothing" constructor. | |
ACE_Acceptor (const ACE_PEER_ACCEPTOR_ADDR &local_addr, ACE_Reactor *=ACE_Reactor::instance(), int flags=0, int use_select=1, int reuse_addr=1) | |
virtual int | open (const ACE_PEER_ACCEPTOR_ADDR &local_addr, ACE_Reactor *reactor=ACE_Reactor::instance(), int flags=0, int use_select=1, int reuse_addr=1) |
virtual | ~ACE_Acceptor (void) |
Close down the Acceptor's resources. | |
virtual | operator ACE_PEER_ACCEPTOR & () const |
Return the underlying PEER_ACCEPTOR object. | |
virtual ACE_PEER_ACCEPTOR & | acceptor (void) const |
Return the underlying PEER_ACCEPTOR object. | |
virtual ACE_HANDLE | get_handle (void) const |
Returns the listening acceptor's {ACE_HANDLE}. | |
virtual int | close (void) |
Close down the Acceptor. | |
void | dump (void) const |
Dump the state of an object. | |
virtual int | suspend (void) |
This method calls {Reactor::suspend}. | |
virtual int | resume (void) |
This method calls {Reactor::resume}. | |
Public Attributes | |
ACE_ALLOC_HOOK_DECLARE | |
Declare the dynamic allocation hooks. | |
Protected Member Functions | |
virtual int | make_svc_handler (SVC_HANDLER *&sh) |
virtual int | accept_svc_handler (SVC_HANDLER *svc_handler) |
virtual int | activate_svc_handler (SVC_HANDLER *svc_handler) |
virtual int | handle_close (ACE_HANDLE=ACE_INVALID_HANDLE, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK) |
virtual int | handle_input (ACE_HANDLE) |
virtual int | init (int argc, ACE_TCHAR *argv[]) |
virtual int | fini (void) |
Calls {handle_close}. | |
virtual int | info (ACE_TCHAR **buf, size_t) const |
Default version returns address info in {buf}. | |
Protected Attributes | |
ACE_PEER_ACCEPTOR | peer_acceptor_ |
Concrete factory for accepting connections from clients... | |
ACE_PEER_ACCEPTOR_ADDR | peer_acceptor_addr_ |
Needed to reopen the socket if {accept} fails. | |
int | flags_ |
int | use_select_ |
int | reuse_addr_ |
Needed to reopen the socket if {accept} fails. |
Implements the basic strategy for passively establishing connections with clients. An ACE_Acceptor is parameterized by concrete types that conform to the interfaces of PEER_ACCEPTOR and SVC_HANDLER. The PEER_ACCEPTOR is instantiated with a transport mechanism that passively establishes connections. The SVC_HANDLER is instantiated with a concrete type that performs the application-specific service. An ACE_Acceptor inherits from ACE_Service_Object, which in turn inherits from ACE_Event_Handler. This enables the ACE_Reactor to dispatch the ACE_Acceptor's handle_input method when connection events occur. The handle_input method performs the ACE_Acceptor's default creation, connection establishment, and service activation strategies. These strategies can be overridden by subclasses individually or as a group.
|
|
|
|
|
|
|
|
|
"Do-nothing" constructor.
|
|
Initialize and register {this} with the Reactor and listen for connection requests at the designated {local_addr}. {flags} indicates how {SVC_HANDLER}'s should be initialized prior to being activated. Right now, the only flag that is processed is {ACE_NONBLOCK}, which enabled non-blocking I/O on the {SVC_HANDLER} when it is opened. If {use_select} is non-zero then {select} is used to determine when to break out of the {accept} loop. {reuse_addr} is passed down to the {PEER_ACCEPTOR}. If it is non-zero this will allow the OS to reuse this listen port. |
|
Close down the Acceptor's resources.
|
|
Bridge method for accepting the new connection into the <svc_handler>. The default behavior delegates to the PEER_ACCEPTOR::accept. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
Return the underlying PEER_ACCEPTOR object.
Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
Bridge method for activating a {svc_handler} with the appropriate concurrency strategy. The default behavior of this method is to activate the SVC_HANDLER by calling its {open} method (which allows the SVC_HANDLER to define its own concurrency strategy). However, subclasses can override this strategy to do more sophisticated concurrency activations (such as making the SVC_HANDLER as an "active object" via multi-threading or multi-processing). Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
Close down the Acceptor.
|
|
Dump the state of an object.
Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
Calls {handle_close}.
Reimplemented from ACE_Shared_Object. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
Returns the listening acceptor's {ACE_HANDLE}.
Reimplemented from ACE_Event_Handler. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
Perform termination activities when {this} is removed from the {reactor}. Reimplemented from ACE_Event_Handler. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
Accepts all pending connections from clients, and creates and activates SVC_HANDLERs. Reimplemented from ACE_Event_Handler. |
|
Default version returns address info in {buf}.
Reimplemented from ACE_Shared_Object. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful. Reimplemented from ACE_Shared_Object. |
|
Bridge method for creating a SVC_HANDLER. The default is to create a new {SVC_HANDLER} if {sh} == 0, else {sh} is unchanged. However, subclasses can override this policy to perform SVC_HANDLER creation in any way that they like (such as creating subclass instances of SVC_HANDLER, using a singleton, dynamically linking the handler, etc.). Returns -1 on failure, else 0. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
Open the contained
The
Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
Return the underlying PEER_ACCEPTOR object.
Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
This method calls {Reactor::resume}.
Reimplemented from ACE_Service_Object. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
This method calls {Reactor::suspend}.
Reimplemented from ACE_Service_Object. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
Declare the dynamic allocation hooks.
Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >. |
|
Flags that indicate how {SVC_HANDLER}'s should be initialized prior to being activated. Right now, the only flag that is processed is {ACE_NONBLOCK}, which enabled non-blocking I/O on the {SVC_HANDLER} when it is opened. |
|
Concrete factory for accepting connections from clients...
|
|
Needed to reopen the socket if {accept} fails.
|
|
Needed to reopen the socket if {accept} fails.
|
|
Flag that indicates whether it shall use {select} in the {accept}-loop. |
