TAO_Thread_Lane Class Reference

Class representing the thread lane inside a thread pool. More...

#include <Thread_Pool.h>

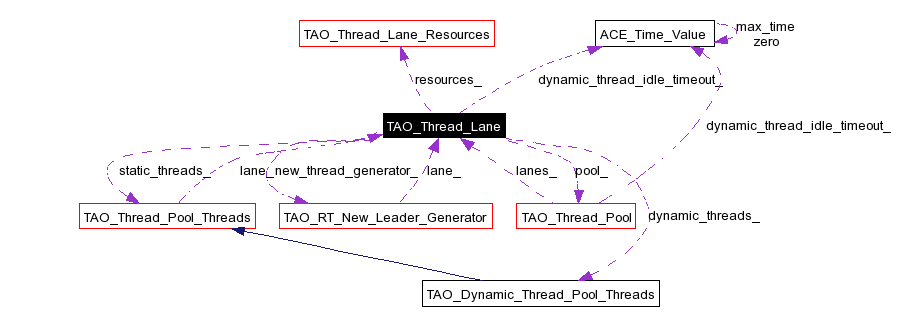

Collaboration diagram for TAO_Thread_Lane:

[legend]List of all members.

Accessors
TAO_Thread_Pool &	pool (void) const
CORBA::ULong	id (void) const
CORBA::Short	lane_priority (void) const
CORBA::ULong	static_threads (void) const
CORBA::ULong	dynamic_threads (void) const
CORBA::ULong	current_threads (void) const
CORBA::Short	native_priority (void) const
TAO_Thread_Lane_Resources &	resources (void)
ACE_Time_Value const &	dynamic_thread_idle_timeout (void) const
Public Member Functions
	TAO_Thread_Lane (TAO_Thread_Pool &pool, CORBA::ULong id, CORBA::Short lane_priority, CORBA::ULong static_threads, CORBA::ULong dynamic_threads, ACE_Time_Value const &dynamic_thread_idle_timeout ACE_ENV_ARG_DECL)
	Constructor.
	~TAO_Thread_Lane (void)
	Destructor.
void	open (ACE_ENV_SINGLE_ARG_DECL)
	Open the lane.
void	finalize (void)
	Finalize the resources.
void	shutdown_reactor (void)
	Shutdown the reactor.
void	wait (void)
	Wait for threads to exit.
int	is_collocated (const TAO_MProfile &mprofile)
	Does mprofile belong to us?
int	create_static_threads (void)
	Create the static threads - only called once.
void	shutting_down (void)
bool	new_dynamic_thread (void)
Private Member Functions
void	validate_and_map_priority (ACE_ENV_SINGLE_ARG_DECL)
	Validate lane's priority and map it to a native value.
int	create_threads_i (TAO_Thread_Pool_Threads &thread_pool, CORBA::ULong number_of_threads)
int	create_dynamic_threads (CORBA::ULong number_of_threads)
Private Attributes
TAO_Thread_Pool &	pool_
	The Thread Pool to which this lane belongs.
CORBA::ULong const	id_
	The id of this lane.
CORBA::Short	lane_priority_
bool	shutdown_
CORBA::ULong const	static_threads_number_
	Number of static threads.
CORBA::ULong const	dynamic_threads_number_
	Maximum number of threads we are allowed to create.
TAO_Thread_Pool_Threads	static_threads_
	Array with all static threads.
TAO_Dynamic_Thread_Pool_Threads	dynamic_threads_
	Array with all dynamic threads.
TAO_RT_New_Leader_Generator	new_thread_generator_
TAO_Thread_Lane_Resources	resources_
CORBA::Short	native_priority_
ACE_Time_Value const	dynamic_thread_idle_timeout_
ACE_SYNCH_MUTEX	lock_
	Lock to guard all members of the lane.

---

Detailed Description

Class representing the thread lane inside a thread pool.

---

Constructor & Destructor Documentation

TAO_Thread_Lane::TAO_Thread_Lane (  TAO_Thread_Pool &  pool, CORBA::ULong  id, CORBA::Short  lane_priority, CORBA::ULong  static_threads, CORBA::ULong  dynamic_threads, ACE_Time_Value const &dynamic_thread_idle_timeout  ACE_ENV_ARG_DECL )

Constructor.

TAO_Thread_Lane::~TAO_Thread_Lane (  void   )

Destructor.

---

Member Function Documentation

int TAO_Thread_Lane::create_dynamic_threads (  CORBA::ULong  number_of_threads  )  [private]

Create number_of_threads of dynamic threads. Can be called multiple times.

int TAO_Thread_Lane::create_static_threads (  void   )

Create the static threads - only called once.

int TAO_Thread_Lane::create_threads_i (  TAO_Thread_Pool_Threads &  thread_pool, CORBA::ULong  number_of_threads )  [private]

CORBA::ULong TAO_Thread_Lane::current_threads (  void   )  const

ACE_INLINE ACE_Time_Value const & TAO_Thread_Lane::dynamic_thread_idle_timeout (  void   )  const

ACE_INLINE CORBA::ULong TAO_Thread_Lane::dynamic_threads (  void   )  const

void TAO_Thread_Lane::finalize (  void   )

Finalize the resources.

ACE_INLINE CORBA::ULong TAO_Thread_Lane::id (  void   )  const

int TAO_Thread_Lane::is_collocated (  const TAO_MProfile &  mprofile  )

Does mprofile belong to us?

ACE_INLINE CORBA::Short TAO_Thread_Lane::lane_priority (  void   )  const

ACE_INLINE CORBA::Short TAO_Thread_Lane::native_priority (  void   )  const

bool TAO_Thread_Lane::new_dynamic_thread (  void   )

It can be that no thread can be created because the number of threads is equal to the maximum we can have or the Thread Lane is shutting down. Return values: true  A new thread is created false  No thread could be created

void TAO_Thread_Lane::open (  ACE_ENV_SINGLE_ARG_DECL   )

Open the lane.

ACE_INLINE TAO_Thread_Pool & TAO_Thread_Lane::pool (  void   )  const

ACE_INLINE TAO_Thread_Lane_Resources & TAO_Thread_Lane::resources (  void   )

void TAO_Thread_Lane::shutdown_reactor (  void   )

Shutdown the reactor.

void TAO_Thread_Lane::shutting_down (  void   )

Mark that this lane is shutting down, we then don't create any dynamic threads anymore. When the pool is shutting down the leader follower loop is called which can cause a request to create a new dynamic thread but we shouldn't create a new one.

ACE_INLINE CORBA::ULong TAO_Thread_Lane::static_threads (  void   )  const

void TAO_Thread_Lane::validate_and_map_priority (  ACE_ENV_SINGLE_ARG_DECL   )  [private]

Validate lane's priority and map it to a native value.

void TAO_Thread_Lane::wait (  void   )

Wait for threads to exit.

---

Member Data Documentation

ACE_Time_Value const TAO_Thread_Lane::dynamic_thread_idle_timeout_ [private]

TAO_Dynamic_Thread_Pool_Threads TAO_Thread_Lane::dynamic_threads_ [private]

Array with all dynamic threads.

CORBA::ULong const TAO_Thread_Lane::dynamic_threads_number_ [private]

Maximum number of threads we are allowed to create.

CORBA::ULong const TAO_Thread_Lane::id_ [private]

The id of this lane.

CORBA::Short TAO_Thread_Lane::lane_priority_ [private]

ACE_SYNCH_MUTEX TAO_Thread_Lane::lock_ [mutable, private]

Lock to guard all members of the lane.

CORBA::Short TAO_Thread_Lane::native_priority_ [private]

TAO_RT_New_Leader_Generator TAO_Thread_Lane::new_thread_generator_ [private]

TAO_Thread_Pool& TAO_Thread_Lane::pool_ [private]

The Thread Pool to which this lane belongs.

TAO_Thread_Lane_Resources TAO_Thread_Lane::resources_ [private]

bool TAO_Thread_Lane::shutdown_ [private]

This boolean is set when we are shutting down, then we will not create any new dynamic threads

TAO_Thread_Pool_Threads TAO_Thread_Lane::static_threads_ [private]

Array with all static threads.

CORBA::ULong const TAO_Thread_Lane::static_threads_number_ [private]

Number of static threads.

---

The documentation for this class was generated from the following files:

• Thread_Pool.h
• Thread_Pool.cpp
• Thread_Pool.inl

---
