TAO_PriorityBandedConnectionPolicy Class Reference

RTCORBA::PriorityBandedConnectionPolicy implementation. More...

#include <RT_Policy_i.h>

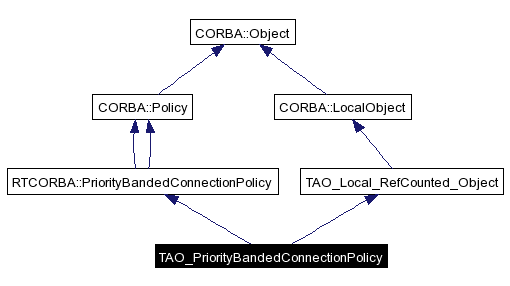

Inheritance diagram for TAO_PriorityBandedConnectionPolicy:

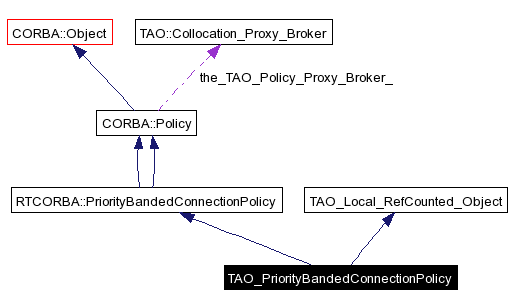

[legend]Collaboration diagram for TAO_PriorityBandedConnectionPolicy:

[legend]List of all members.

Public Member Functions
	TAO_PriorityBandedConnectionPolicy (const RTCORBA::PriorityBands &bands)
	Constructor.
	TAO_PriorityBandedConnectionPolicy (const TAO_PriorityBandedConnectionPolicy &rhs)
	Copy constructor.
RTCORBA::PriorityBands &	priority_bands_rep (void)
RTCORBA::PriorityBands *	priority_bands (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
CORBA::PolicyType	policy_type (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
CORBA::Policy_ptr	copy (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
void	destroy (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
CORBA::Boolean	_tao_encode (TAO_OutputCDR &out_cdr)
	This method writes a CDR representation of the current object.
CORBA::Boolean	_tao_decode (TAO_InputCDR &in_cdr)
	This method reads the object state from a CDR representation.
TAO_Cached_Policy_Type	_tao_cached_type (void) const
TAO_Policy_Scope	_tao_scope (void) const
Static Public Member Functions
CORBA::Policy_ptr	create (const CORBA::Any &val ACE_ENV_ARG_DECL)
Protected Member Functions
virtual	~TAO_PriorityBandedConnectionPolicy (void)
	TAO_PriorityBandedConnectionPolicy (void)
Private Attributes
RTCORBA::PriorityBands	priority_bands_
	Attribute.
Friends
class	TAO_RT_PolicyFactory

---

Detailed Description

RTCORBA::PriorityBandedConnectionPolicy implementation.

RT CORBA provides facility for a client to communicate with a server via multiple connections, aka bands, with each connection handling invocations that are made at a different CORBA priority. This policy allows the specification of the number of such bands and their priorities.

---

Constructor & Destructor Documentation

TAO_PriorityBandedConnectionPolicy::TAO_PriorityBandedConnectionPolicy (  const RTCORBA::PriorityBands &  bands  )

Constructor.

TAO_PriorityBandedConnectionPolicy::TAO_PriorityBandedConnectionPolicy (  const TAO_PriorityBandedConnectionPolicy &  rhs  )

Copy constructor.

TAO_PriorityBandedConnectionPolicy::~TAO_PriorityBandedConnectionPolicy (  void   )  [protected, virtual]

Protected destructor to enforce proper memory management of this reference counted object.

TAO_PriorityBandedConnectionPolicy::TAO_PriorityBandedConnectionPolicy (  void   )  [protected]

---

Member Function Documentation

TAO_Cached_Policy_Type TAO_PriorityBandedConnectionPolicy::_tao_cached_type (  void   )  const [virtual]

Implements CORBA::Policy.

CORBA::Boolean TAO_PriorityBandedConnectionPolicy::_tao_decode (  TAO_InputCDR &  in_cdr  )  [virtual]

This method reads the object state from a CDR representation. Implements CORBA::Policy.

CORBA::Boolean TAO_PriorityBandedConnectionPolicy::_tao_encode (  TAO_OutputCDR &  out_cdr  )  [virtual]

This method writes a CDR representation of the current object. Implements CORBA::Policy.

TAO_Policy_Scope TAO_PriorityBandedConnectionPolicy::_tao_scope (  void   )  const [virtual]

Implements CORBA::Policy.

CORBA::Policy_ptr TAO_PriorityBandedConnectionPolicy::copy (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  throw (CORBA::SystemException) [virtual]

Implements RTCORBA::PriorityBandedConnectionPolicy.

CORBA::Policy_ptr TAO_PriorityBandedConnectionPolicy::create (  const CORBA::Any &val  ACE_ENV_ARG_DECL  )  [static]

Helper method for the implementation of CORBA::ORB::create_policy.

void TAO_PriorityBandedConnectionPolicy::destroy (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  throw (CORBA::SystemException) [virtual]

Implements RTCORBA::PriorityBandedConnectionPolicy.

CORBA::PolicyType TAO_PriorityBandedConnectionPolicy::policy_type (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  throw (CORBA::SystemException) [virtual]

Implements CORBA::Policy.

RTCORBA::PriorityBands * TAO_PriorityBandedConnectionPolicy::priority_bands (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  throw (CORBA::SystemException) [virtual]

Implements RTCORBA::PriorityBandedConnectionPolicy.

RTCORBA::PriorityBands & TAO_PriorityBandedConnectionPolicy::priority_bands_rep (  void   )

Accessor to the underlying priority bands of the policy (does not make a copy like the idl accessor <priority_bands> implementation below.)

---

Friends And Related Function Documentation

friend class TAO_RT_PolicyFactory [friend]

This constructor is used by TAO_RT_PolicyFactory when decoding policies from tagged components in an IOR.

---

Member Data Documentation

RTCORBA::PriorityBands TAO_PriorityBandedConnectionPolicy::priority_bands_ [private]

Attribute.

---

The documentation for this class was generated from the following files:

• RT_Policy_i.h
• RT_Policy_i.cpp

---
