TAO / tao / RTCORBA

RTCORBA.pidl File Reference

Pre-compiled IDL source for the RTCORBA module. More...

import "IOP.pidl";
import "TimeBase.pidl";
import "Policy.pidl";

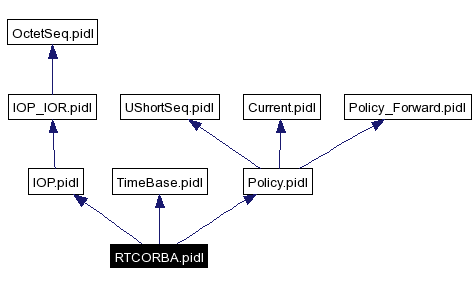

Include dependency graph for RTCORBA.pidl:

This graph shows which files directly or indirectly include this file:


Namespaces
namespace	RTCORBA
Classes
struct	RTCORBA::ThreadpoolLane
interface	RTCORBA::PriorityModelPolicy
interface	RTCORBA::ThreadpoolPolicy
interface	RTCORBA::ProtocolProperties
struct	RTCORBA::Protocol
interface	RTCORBA::ServerProtocolPolicy
interface	RTCORBA::ClientProtocolPolicy
interface	RTCORBA::PrivateConnectionPolicy
interface	RTCORBA::TCPProtocolProperties
interface	RTCORBA::GIOPProtocolProperties
interface	RTCORBA::UnixDomainProtocolProperties
interface	RTCORBA::SharedMemoryProtocolProperties
interface	RTCORBA::UserDatagramProtocolProperties
interface	RTCORBA::StreamControlProtocolProperties
struct	RTCORBA::PriorityBand
interface	RTCORBA::PriorityBandedConnectionPolicy
interface	RTCORBA::Current
interface	RTCORBA::Mutex
interface	RTCORBA::RTORB
exception	RTCORBA::RTORB::MutexNotFound
exception	RTCORBA::RTORB::InvalidThreadpool
Typedefs
typedef short	NativePriority
typedef short	Priority
typedef long	NetworkPriority
typedef unsigned long	ThreadpoolId
typedef sequence< ThreadpoolLane >	ThreadpoolLanes
typedef sequence< Protocol >	ProtocolList
typedef sequence< PriorityBand >	PriorityBands
Enumerations
enum	PriorityModel { CLIENT_PROPAGATED, SERVER_DECLARED }
Variables
const Priority	minPriority = 0
const Priority	maxPriority = 32767
native	PriorityMapping
native	PriorityTransform
native	NetworkPriorityMapping
const CORBA::PolicyType	PRIORITY_MODEL_POLICY_TYPE = 40
const CORBA::PolicyType	THREADPOOL_POLICY_TYPE = 41
const CORBA::PolicyType	SERVER_PROTOCOL_POLICY_TYPE = 42
const CORBA::PolicyType	CLIENT_PROTOCOL_POLICY_TYPE = 43
const CORBA::PolicyType	PRIVATE_CONNECTION_POLICY_TYPE = 44
const CORBA::PolicyType	PRIORITY_BANDED_CONNECTION_POLICY_TYPE = 45

Detailed Description

Pre-compiled IDL source for the RTCORBA module.

Id: RTCORBA.pidl,v 1.13 2005/04/12 08:13:33 jwillemsen Exp

The RTCORBA module specified in CORBA v2.4.2 Chapter 24 (February, 2001).

Changes to the original OMG idl:

1. Two TAO-specific interfaces, UnixDomainProtocolProperties and SharedMemoryProtocolProperties, have been added to allow configuration of TAO's UIOP and SHMEM pluggable protocols through RTCORBA Protocol Policies. 2. TAO-specific support for named mutexes has been added. 3. Added RT_ORB::create_tcp_protocol_properties which seems to come and go from the formal specification, but is needed.

This file was used to generate the code in RTCORBAC.{h,inl,cpp}. The steps to regenerate the code are as follows:

1. Run the tao_idl compiler on the pidl file. The command used for this is:

tao_idl -o orig -Gp -Gd -Ge 1 -Sci -I../.. -Wb,export_macro=TAO_RTCORBA_Export -Wb,export_include="rtcorba_export.h" -Wb,pre_include="ace/pre.h" -Wb,post_include="ace/post.h" RTCORBA.pidl

2. Then apply the patches in tao/RTCORBA/diffs to the generated code. The patches provide the following fixes: 1) remove several unnecessary includes, e.g., corba.h, stream.h, Policy.h, 3) add anything else we need into the namespace, i.e., TAO_Priority_Mapping, and 4) fix "nested_class" occurrences in the .cpp.

Apply patches using the following commands:

patch < diffs/RTCORBA.diff

Note: The diffs were generated with these commands:

for i in RTCORBAC.{h,inl,cpp}; do diff -wBbu orig/$i $i done > diffs/RTCORBA.diff
