TAO::Invocation_Base Class Reference

The base class for the invocation object. More...

#include <Invocation_Base.h>

Inheritance diagram for TAO::Invocation_Base:

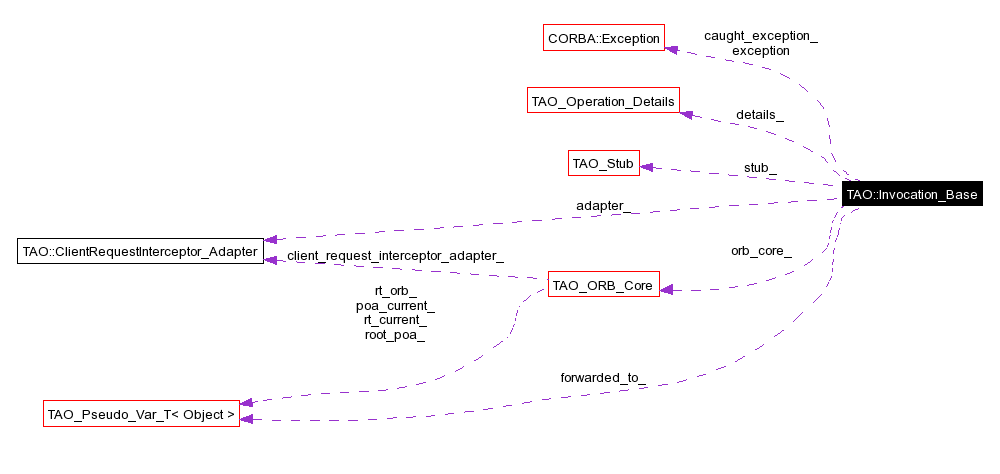

[legend]Collaboration diagram for TAO::Invocation_Base:

[legend]List of all members.

[NOHEADER]
size_t &	stack_size (void)
CORBA::Exception *	caught_exception (void)
TAO::Invocation_Status	invoke_status (void) const
	Invoke status.
PortableInterceptor::ReplyStatus	reply_status (void) const
void exception CORBA::Exception *	exception
	Change the exception status.
Invocation_Status	send_request_interception (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException)
Invocation_Status	receive_reply_interception (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException)
Invocation_Status	receive_other_interception (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException)
PortableInterceptor::ReplyStatus	handle_any_exception (CORBA::Exception *e ACE_ENV_ARG_DECL)
PortableInterceptor::ReplyStatus	handle_all_exception (ACE_ENV_SINGLE_ARG_DECL)
ClientRequestInterceptor_Adapter *	adapter_
	The client requestor adapter.
size_t	stack_size_
TAO::Invocation_Status	invoke_status_
CORBA::Exception *	caught_exception_
	Pointer to the caught exception.
Public Member Functions
virtual	~Invocation_Base (void)
TAO_ORB_Core *	orb_core (void) const
TAO_Stub *	stub (void) const
CORBA::Object_ptr	forwarded_reference (void)
void	forwarded_reference (CORBA::Object_ptr o)
TAO_Service_Context &	request_service_context (void)
	Accessors for the service context list.
TAO_Service_Context &	reply_service_context (void)
CORBA::Object_ptr	steal_forwarded_reference (void)
	Return the forwarded object location by loosing ownership.
bool	is_forwarded (void) const
	Did the invocation got forwarded to a new location?
void	reply_received (Invocation_Status s)
	Mutator to set the reply status of the invocation.
CORBA::Object_ptr	effective_target (void) const
	Return the effective target of the invocation.
CORBA::Object_ptr	target (void) const
	Return the target object.
CORBA::Boolean	response_expected (void) const
	Does this invocation return a response?
TAO_Operation_Details &	operation_details (void)
	The operaton details of the invocation.
Protected Member Functions
	Invocation_Base (CORBA::Object_ptr otarget, CORBA::Object_ptr target, TAO_Stub *stub, TAO_Operation_Details &op, bool response_expected)
Protected Attributes
TAO_Operation_Details &	details_
	The operation details on which we are operating on.
CORBA::Object_var	forwarded_to_
	Forwarded object reference.
bool	response_expected_
	Is response expected?
Private Member Functions
	Invocation_Base (const Invocation_Base &)
Invocation_Base &	operator= (const Invocation_Base &)
Private Attributes
CORBA::Object_ptr	otarget_
	The original target on which the invocation was started.
CORBA::Object_ptr	target_
	The effective target on which the invocation is on.
TAO_ORB_Core *	orb_core_
	Cache the ORB_Core.
TAO_Stub *	stub_
	The original target on which the invocation was started.

---

Detailed Description

The base class for the invocation object.

This class is the base of the invocation object hiererachy. This hierarchy is classified based on the type of invocation and the mode of invocation. One of the objects from the hierarchy is created on the stack for every invocation.

In addition this class encapsulates the essential details that are required for PortableInterceptors to function correctly. Further this class also provides some helper and accessor methods that are used by clients.

---

Constructor & Destructor Documentation

TAO::Invocation_Base::~Invocation_Base (  void   )  [virtual]

TAO::Invocation_Base::Invocation_Base (  CORBA::Object_ptr  otarget, CORBA::Object_ptr  target, TAO_Stub *  stub, TAO_Operation_Details &  op, bool  response_expected )  [protected]

Parameters: otarget  The original target on which this invocation was started. target  the target on which this invocation is flowing ie. the effective target op  operation details of the invocation on target response_expected  flag to indicate whether the operation encapsulated by op returns a response or not.

TAO::Invocation_Base::Invocation_Base (  const Invocation_Base &   )  [private]

---

Member Function Documentation

CORBA::Exception* TAO::Invocation_Base::caught_exception (  void   )

Note: It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

ACE_INLINE CORBA::Object_ptr TAO::Invocation_Base::effective_target (  void   )  const

Return the effective target of the invocation. Please see the PortableInterceptor specification in the CORBA spec to understand what effective target means.

ACE_INLINE void TAO::Invocation_Base::forwarded_reference (  CORBA::Object_ptr  o  )

ACE_INLINE CORBA::Object_ptr TAO::Invocation_Base::forwarded_reference (  void   )

These access methods have to be public so that the PortableInterceptor can use them

PortableInterceptor::ReplyStatus TAO::Invocation_Base::handle_all_exception (  ACE_ENV_SINGLE_ARG_DECL   )  [protected]

Note: It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

PortableInterceptor::ReplyStatus TAO::Invocation_Base::handle_any_exception (  CORBA::Exception *e  ACE_ENV_ARG_DECL  )  [protected]

Helper methods to handle interception calls when exceptions are thrown by the PortableInterceptor.

TAO::Invocation_Status TAO::Invocation_Base::invoke_status (  void   )  const

Invoke status.

ACE_INLINE bool TAO::Invocation_Base::is_forwarded (  void   )  const

Did the invocation got forwarded to a new location?

ACE_INLINE TAO_Operation_Details & TAO::Invocation_Base::operation_details (  void   )

The operaton details of the invocation.

Invocation_Base& TAO::Invocation_Base::operator= (  const Invocation_Base &   )  [private]

ACE_INLINE TAO_ORB_Core * TAO::Invocation_Base::orb_core (  void   )  const

Invocation_Status TAO::Invocation_Base::receive_other_interception (  ACE_ENV_SINGLE_ARG_DECL   )  throw (CORBA::SystemException) [protected]

Helper method to invoke receive_other interception call to all the registered interceptors.

Invocation_Status TAO::Invocation_Base::receive_reply_interception (  ACE_ENV_SINGLE_ARG_DECL   )  throw (CORBA::SystemException) [protected]

Helper method to invoke receive_reply interception call to all the registered interceptors.

void TAO::Invocation_Base::reply_received (  Invocation_Status  s  )

Mutator to set the reply status of the invocation.

TAO_Service_Context & TAO::Invocation_Base::reply_service_context (  void   )

PortableInterceptor::ReplyStatus TAO::Invocation_Base::reply_status (  void   )  const

Note: It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

TAO_Service_Context & TAO::Invocation_Base::request_service_context (  void   )

Accessors for the service context list. The service context lists are actually cached elsewhere. Providing this accessor helps the PI to access this list in both remote and collocated mode.

ACE_INLINE CORBA::Boolean TAO::Invocation_Base::response_expected (  void   )  const

Does this invocation return a response?

Invocation_Status TAO::Invocation_Base::send_request_interception (  ACE_ENV_SINGLE_ARG_DECL   )  throw (CORBA::SystemException) [protected]

Helper method to invoke send_request interception call to all the registered interceptors.

size_t& TAO::Invocation_Base::stack_size (  void   )

Note: It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

ACE_INLINE CORBA::Object_ptr TAO::Invocation_Base::steal_forwarded_reference (  void   )

Return the forwarded object location by loosing ownership.

ACE_INLINE TAO_Stub * TAO::Invocation_Base::stub (  void   )  const

ACE_INLINE CORBA::Object_ptr TAO::Invocation_Base::target (  void   )  const

Return the target object.

---

Member Data Documentation

ClientRequestInterceptor_Adapter* TAO::Invocation_Base::adapter_ [protected]

The client requestor adapter.

CORBA::Exception* TAO::Invocation_Base::caught_exception_ [private]

Pointer to the caught exception.

TAO_Operation_Details& TAO::Invocation_Base::details_ [protected]

The operation details on which we are operating on.

void TAO::Invocation_Base::exception

Change the exception status.

CORBA::Object_var TAO::Invocation_Base::forwarded_to_ [protected]

Forwarded object reference.

TAO::Invocation_Status TAO::Invocation_Base::invoke_status_ [protected]

Note: It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

TAO_ORB_Core* TAO::Invocation_Base::orb_core_ [private]

Cache the ORB_Core.

CORBA::Object_ptr TAO::Invocation_Base::otarget_ [private]

The original target on which the invocation was started. The following object reference pointers are *not* duplicated. They are cached for portable interceptors, and they just live for the lifetime of the request. Hence there is no point in duplicating the pointers.

bool TAO::Invocation_Base::response_expected_ [protected]

Is response expected?

size_t TAO::Invocation_Base::stack_size_ [protected]

Note: It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

TAO_Stub* TAO::Invocation_Base::stub_ [private]

The original target on which the invocation was started. The following object reference pointers are *not* duplicated. They are cached for portable interceptors, and they just live for the lifetime of the request. Hence there is no point in duplicating the pointers.

CORBA::Object_ptr TAO::Invocation_Base::target_ [private]

The effective target on which the invocation is on.

---

The documentation for this class was generated from the following files:

• Invocation_Base.h
• Invocation_Base.cpp
• Invocation_Base.inl

---
