TAO_SCIOP_Connection_Handler Class Reference

Handles requests on a single connection. More...

#include <SCIOP_Connection_Handler.h>

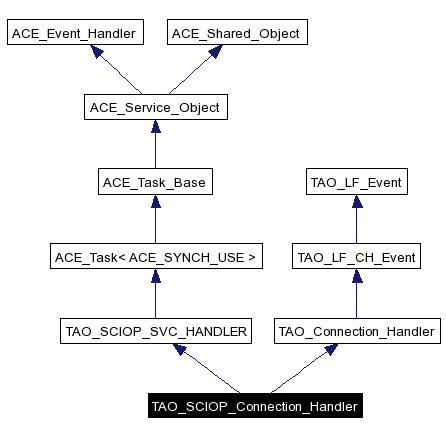

Inheritance diagram for TAO_SCIOP_Connection_Handler:

[legend]Collaboration diagram for TAO_SCIOP_Connection_Handler:

[legend]List of all members.

Public Member Functions
	TAO_SCIOP_Connection_Handler (ACE_Thread_Manager *t=0)
	TAO_SCIOP_Connection_Handler (TAO_ORB_Core *orb_core, CORBA::Boolean flag)
	Constructor.
	~TAO_SCIOP_Connection_Handler (void)
	Destructor.
virtual int	open (void *)
int	close (u_long=0)
int	add_transport_to_cache (void)
	Add ourselves to Cache.
int	process_listen_point_list (IIOP::ListenPointList &listen_list)
	Process the <listen_list>.
int	set_dscp_codepoint (CORBA::Boolean set_network_priority)
	Set Diff-Serv codepoint on outgoing packets.
virtual int	open_handler (void *)
Event Handler overloads
virtual int	resume_handler (void)
virtual int	close_connection (void)
virtual int	handle_input (ACE_HANDLE)
virtual int	handle_output (ACE_HANDLE)
virtual int	handle_close (ACE_HANDLE, ACE_Reactor_Mask)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
Protected Member Functions
	TAO_SCIOP_Connection_Handler (TAO_ORB_Core *orb_core)
	Constructor that could be used by the derived classes.
TAO_Connection Handler overloads
virtual int	release_os_resources (void)
Private Attributes
int	dscp_codepoint_
	Stores the type of service value.

---

Detailed Description

Handles requests on a single connection.

The Connection handler which is common for the Acceptor and the Connector

---

Constructor & Destructor Documentation

TAO_SCIOP_Connection_Handler::TAO_SCIOP_Connection_Handler (  ACE_Thread_Manager *  t = 0  )

TAO_SCIOP_Connection_Handler::TAO_SCIOP_Connection_Handler (  TAO_ORB_Core *  orb_core, CORBA::Boolean  flag )

Constructor.

TAO_SCIOP_Connection_Handler::~TAO_SCIOP_Connection_Handler (  void   )

Destructor.

TAO_SCIOP_Connection_Handler::TAO_SCIOP_Connection_Handler (  TAO_ORB_Core *  orb_core  )  [protected]

Constructor that could be used by the derived classes. Sometimes new pluggbale protocols which have similarties with IIOP may be tempted to this class for their use. Classical example being that of IIOP_SSL_Connection_Handler. This constructor just initializes its base class and sets all of its contents to the default value, if any

---

Member Function Documentation

int TAO_SCIOP_Connection_Handler::add_transport_to_cache (  void   )

Add ourselves to Cache.

int TAO_SCIOP_Connection_Handler::close (  u_long  = 0  )  [virtual]

Close called by the Acceptor or Connector when connection establishment fails. Reimplemented from ACE_Svc_Handler<, >.

int TAO_SCIOP_Connection_Handler::close_connection (  void   )  [virtual]

Implements TAO_Connection_Handler.

int TAO_SCIOP_Connection_Handler::handle_close (  ACE_HANDLE  , ACE_Reactor_Mask  )  [virtual]

Reimplemented from ACE_Svc_Handler<, >.

int TAO_SCIOP_Connection_Handler::handle_input (  ACE_HANDLE   )  [virtual]

Implements TAO_Connection_Handler.

int TAO_SCIOP_Connection_Handler::handle_output (  ACE_HANDLE   )  [virtual]

Reimplemented from ACE_Event_Handler.

int TAO_SCIOP_Connection_Handler::handle_timeout (  const ACE_Time_Value &  current_time, const void *  act = 0 )  [virtual]

Reimplemented from ACE_Svc_Handler<, >.

int TAO_SCIOP_Connection_Handler::open (  void *   )  [virtual]

Called by the <strategy_acceptor> when the handler is completely connected. Argument is unused. Reimplemented from ACE_Svc_Handler<, >.

int TAO_SCIOP_Connection_Handler::open_handler (  void *   )  [virtual]

Connection_Handler overloads Implements TAO_Connection_Handler.

int TAO_SCIOP_Connection_Handler::process_listen_point_list (  IIOP::ListenPointList &  listen_list  )

Process the <listen_list>.

int TAO_SCIOP_Connection_Handler::release_os_resources (  void   )  [protected, virtual]

Reimplemented from TAO_Connection_Handler.

int TAO_SCIOP_Connection_Handler::resume_handler (  void   )  [virtual]

Reimplemented from ACE_Event_Handler.

int TAO_SCIOP_Connection_Handler::set_dscp_codepoint (  CORBA::Boolean  set_network_priority  )  [virtual]

Set Diff-Serv codepoint on outgoing packets. Reimplemented from TAO_Connection_Handler.

---

Member Data Documentation

int TAO_SCIOP_Connection_Handler::dscp_codepoint_ [private]

Stores the type of service value.

---

The documentation for this class was generated from the following files:

• SCIOP_Connection_Handler.h
• SCIOP_Connection_Handler.cpp

---
