TAO_EC_ProxyPushConsumer Class Reference

ProxyPushConsumer. More...

#include <EC_ProxyConsumer.h>

Inheritance diagram for TAO_EC_ProxyPushConsumer:

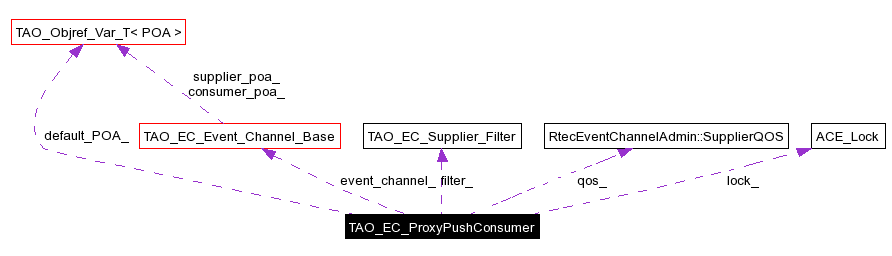

[legend]Collaboration diagram for TAO_EC_ProxyPushConsumer:

[legend]List of all members.

Public Types
typedef RtecEventChannelAdmin::ProxyPushConsumer	Interface
typedef RtecEventChannelAdmin::ProxyPushConsumer_var	_var_type
typedef RtecEventChannelAdmin::ProxyPushConsumer_ptr	_ptr_type
Public Member Functions
	TAO_EC_ProxyPushConsumer (TAO_EC_Event_Channel_Base *event_channel)
	constructor...
virtual	~TAO_EC_ProxyPushConsumer (void)
	destructor...
virtual void	disconnect_push_consumer (ACE_ENV_SINGLE_ARG_DECL)=0
	Disconnect this from.
CORBA::Boolean	is_connected (void) const
	Return 0 if no supplier is connected...
RtecEventComm::PushSupplier_ptr	supplier (void) const
const RtecEventChannelAdmin::SupplierQOS &	publications (void) const
	The QoS (subscription) used to connect to the EC.
CORBA::Boolean	supplier_non_existent (CORBA::Boolean_out disconnected ACE_ENV_ARG_DECL)
virtual void	connected (TAO_EC_ProxyPushSupplier *supplier ACE_ENV_ARG_DECL)
virtual void	reconnected (TAO_EC_ProxyPushSupplier *supplier ACE_ENV_ARG_DECL)
virtual void	disconnected (TAO_EC_ProxyPushSupplier *supplier ACE_ENV_ARG_DECL)
virtual void	connected (TAO_EC_ProxyPushConsumer *consumer ACE_ENV_ARG_DECL)
virtual void	reconnected (TAO_EC_ProxyPushConsumer *consumer ACE_ENV_ARG_DECL)
virtual void	disconnected (TAO_EC_ProxyPushConsumer *consumer ACE_ENV_ARG_DECL)
virtual void	shutdown (ACE_ENV_SINGLE_ARG_DECL_NOT_USED)
	The event channel is shutting down.
const RtecEventChannelAdmin::SupplierQOS &	publications_i (void) const
CORBA::ULong	_incr_refcnt (void)
	Increment and decrement the reference count.
CORBA::ULong	_decr_refcnt (void)
Public Attributes
virtual void virtual activate(RtecEventChannelAdmin::ProxyPushConsumer_ptr &proxy ACE_ENV_ARG_DECL) ACE_THROW_SPEC((CORBA voi	deactivate )(ACE_ENV_SINGLE_ARG_DECL)
	Deactivate from the POA.
Protected Member Functions
void	supplier (RtecEventComm::PushSupplier_ptr supplier)
void	supplier_i (RtecEventComm::PushSupplier_ptr supplier)
CORBA::Boolean	is_connected_i (void) const
	The private version (without locking) of is_connected().
TAO_EC_Supplier_Filter *	filter_i (void) const
	Return the current filter, assumes the locks are held.
void	cleanup_i (void)
	Release the filter and the supplier.
Protected Attributes
TAO_EC_Event_Channel_Base *	event_channel_
	The supplier admin, used for activation and memory managment.
ACE_Lock *	lock_
	The locking strategy.
CORBA::ULong	refcount_
	The reference count.
RtecEventComm::PushSupplier_var	supplier_
	The supplier....
int	connected_
RtecEventChannelAdmin::SupplierQOS	qos_
	The publication and QoS information...
PortableServer::POA_var	default_POA_
	Store the default POA.
TAO_EC_Supplier_Filter *	filter_
	The strategy to do filtering close to the supplier.
Private Member Functions
virtual void	shutdown_hook (ACE_ENV_SINGLE_ARG_DECL)
	Template method hooks.
virtual void	refcount_zero_hook (void)
Friends
class	TAO_EC_ProxyPushConsumer_Guard

---

Detailed Description

ProxyPushConsumer.

Implement the RtecEventChannelAdmin::ProxyPushConsumer interface, remember that this class is used to communicate with a PushSupplier, so, in effect, this is the ambassador for a supplier inside the event channel.

Memory Management

It makes a copy of the SupplierQOS and the supplier object reference. It uses bind/unbind to control the lifetime of the Supplier_Filter object. The object commits suicide when disconnect_push_consumer() is called.

Locking

No provisions for locking, access must be serialized externally.

---

Member Typedef Documentation

typedef RtecEventChannelAdmin::ProxyPushConsumer_ptr TAO_EC_ProxyPushConsumer::_ptr_type

typedef RtecEventChannelAdmin::ProxyPushConsumer_var TAO_EC_ProxyPushConsumer::_var_type

typedef RtecEventChannelAdmin::ProxyPushConsumer TAO_EC_ProxyPushConsumer::Interface

---

Constructor & Destructor Documentation

TAO_EC_ProxyPushConsumer::TAO_EC_ProxyPushConsumer (  TAO_EC_Event_Channel_Base *  event_channel  )

constructor...

TAO_EC_ProxyPushConsumer::~TAO_EC_ProxyPushConsumer (  void   )  [virtual]

destructor...

---

Member Function Documentation

CORBA::ULong TAO_EC_ProxyPushConsumer::_decr_refcnt (  void   )

CORBA::ULong TAO_EC_ProxyPushConsumer::_incr_refcnt (  void   )

Increment and decrement the reference count.

void TAO_EC_ProxyPushConsumer::cleanup_i (  void   )  [protected]

Release the filter and the supplier.

virtual void TAO_EC_ProxyPushConsumer::connected (  TAO_EC_ProxyPushConsumer *consumer  ACE_ENV_ARG_DECL  )  [virtual]

Usually implemented as no-ops, but some configurations may require this methods.

void TAO_EC_ProxyPushConsumer::connected (  TAO_EC_ProxyPushSupplier *supplier  ACE_ENV_ARG_DECL  )  [virtual]

Concrete implementations can use this methods to keep track of the consumers interested in this events.

virtual void TAO_EC_ProxyPushConsumer::disconnect_push_consumer (  ACE_ENV_SINGLE_ARG_DECL   )  [pure virtual]

Disconnect this from.

virtual void TAO_EC_ProxyPushConsumer::disconnected (  TAO_EC_ProxyPushConsumer *consumer  ACE_ENV_ARG_DECL  )  [virtual]

void TAO_EC_ProxyPushConsumer::disconnected (  TAO_EC_ProxyPushSupplier *supplier  ACE_ENV_ARG_DECL  )  [virtual]

ACE_INLINE TAO_EC_Supplier_Filter * TAO_EC_ProxyPushConsumer::filter_i (  void   )  const [protected]

Return the current filter, assumes the locks are held.

ACE_INLINE CORBA::Boolean TAO_EC_ProxyPushConsumer::is_connected (  void   )  const

Return 0 if no supplier is connected...

ACE_INLINE CORBA::Boolean TAO_EC_ProxyPushConsumer::is_connected_i (  void   )  const [protected]

The private version (without locking) of is_connected().

ACE_INLINE const RtecEventChannelAdmin::SupplierQOS & TAO_EC_ProxyPushConsumer::publications (  void   )  const

The QoS (subscription) used to connect to the EC.

ACE_INLINE const RtecEventChannelAdmin::SupplierQOS & TAO_EC_ProxyPushConsumer::publications_i (  void   )  const

The QoS (subscription) used to connect to the EC, assumes the locks are held, use with care!

virtual void TAO_EC_ProxyPushConsumer::reconnected (  TAO_EC_ProxyPushConsumer *consumer  ACE_ENV_ARG_DECL  )  [virtual]

void TAO_EC_ProxyPushConsumer::reconnected (  TAO_EC_ProxyPushSupplier *supplier  ACE_ENV_ARG_DECL  )  [virtual]

void TAO_EC_ProxyPushConsumer::refcount_zero_hook (  void   )  [private, virtual]

void TAO_EC_ProxyPushConsumer::shutdown (  ACE_ENV_SINGLE_ARG_DECL_NOT_USED   )  [virtual]

The event channel is shutting down.

void TAO_EC_ProxyPushConsumer::shutdown_hook (  ACE_ENV_SINGLE_ARG_DECL   )  [private, virtual]

Template method hooks.

ACE_INLINE void TAO_EC_ProxyPushConsumer::supplier (  RtecEventComm::PushSupplier_ptr  supplier  )  [protected]

Set the supplier, used by some implementations to change the policies used when invoking operations on the supplier.

ACE_INLINE RtecEventComm::PushSupplier_ptr TAO_EC_ProxyPushConsumer::supplier (  void   )  const

Return the consumer object reference. It returns nil() if it has not connected yet.

ACE_INLINE void TAO_EC_ProxyPushConsumer::supplier_i (  RtecEventComm::PushSupplier_ptr  supplier  )  [protected]

CORBA::Boolean TAO_EC_ProxyPushConsumer::supplier_non_existent (  CORBA::Boolean_out disconnected  ACE_ENV_ARG_DECL  )

Invoke the _non_existent() pseudo-operation on the supplier. If it is disconnected then it returns true and sets the <disconnected> flag.

---

Friends And Related Function Documentation

friend class TAO_EC_ProxyPushConsumer_Guard [friend]

---

Member Data Documentation

int TAO_EC_ProxyPushConsumer::connected_ [protected]

If the flag is not zero then we are connected, notice that the supplier can be nil.

void TAO_EC_ProxyPushConsumer::deactivate

Deactivate from the POA.

PortableServer::POA_var TAO_EC_ProxyPushConsumer::default_POA_ [protected]

Store the default POA.

TAO_EC_Event_Channel_Base* TAO_EC_ProxyPushConsumer::event_channel_ [protected]

The supplier admin, used for activation and memory managment.

TAO_EC_Supplier_Filter* TAO_EC_ProxyPushConsumer::filter_ [protected]

The strategy to do filtering close to the supplier.

ACE_Lock* TAO_EC_ProxyPushConsumer::lock_ [protected]

The locking strategy.

RtecEventChannelAdmin::SupplierQOS TAO_EC_ProxyPushConsumer::qos_ [protected]

The publication and QoS information...

CORBA::ULong TAO_EC_ProxyPushConsumer::refcount_ [protected]

The reference count.

RtecEventComm::PushSupplier_var TAO_EC_ProxyPushConsumer::supplier_ [protected]

The supplier....

---

The documentation for this class was generated from the following files:

• EC_ProxyConsumer.h
• EC_ProxyConsumer.cpp
• EC_ProxyConsumer.i

---
