TAO_EC_Gateway_IIOP_Factory Class Reference

Factory for the EC_Gateway_IIOP settings. More...

#include <EC_Gateway_IIOP_Factory.h>

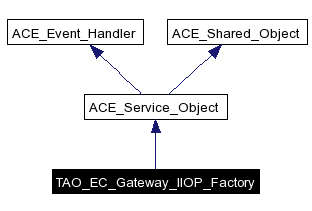

Inheritance diagram for TAO_EC_Gateway_IIOP_Factory:

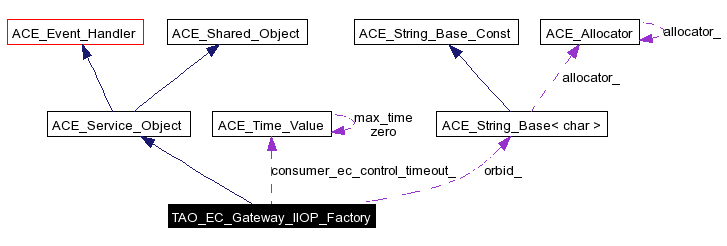

[legend]Collaboration diagram for TAO_EC_Gateway_IIOP_Factory:

[legend]List of all members.

Public Member Functions
	TAO_EC_Gateway_IIOP_Factory (void)
virtual	~TAO_EC_Gateway_IIOP_Factory (void)
TAO_ECG_ConsumerEC_Control *	create_consumerec_control (TAO_EC_Gateway_IIOP *gateway)
	Create the consumer event channel control.
void	destroy_consumerec_control (TAO_ECG_ConsumerEC_Control *x)
	Destroy consumer event channel control.
int	use_ttl (void) const
	Accessors to use_ttl flag.
int	use_consumer_proxy_map (void) const
	Accessors to use_consumer_proxy_map flag.
virtual int	init (int argc, char *argv[])
virtual int	fini (void)
Static Public Member Functions
int	init_svcs (void)
Protected Attributes
ACE_CString	orbid_
	Use this ORB to locate global resources.
int	consumer_ec_control_
	The control policy for the consumer event channel.
int	consumer_ec_control_period_
	The consumer event channel control periods in usecs.
ACE_Time_Value	consumer_ec_control_timeout_
	The control timeout in usecs for the consumer event channel.
int	use_ttl_
int	use_consumer_proxy_map_
Private Member Functions
void	unsupported_option_value (const char *option_name, const char *option_value)

---

Detailed Description

Factory for the EC_Gateway_IIOP settings.

Default configuration values can be found in ECG_Defaults.h

---

Constructor & Destructor Documentation

TAO_EC_Gateway_IIOP_Factory::TAO_EC_Gateway_IIOP_Factory (  void   )

TAO_EC_Gateway_IIOP_Factory::~TAO_EC_Gateway_IIOP_Factory (  void   )  [virtual]

---

Member Function Documentation

TAO_ECG_ConsumerEC_Control * TAO_EC_Gateway_IIOP_Factory::create_consumerec_control (  TAO_EC_Gateway_IIOP *  gateway  )

Create the consumer event channel control.

void TAO_EC_Gateway_IIOP_Factory::destroy_consumerec_control (  TAO_ECG_ConsumerEC_Control *  x  )

Destroy consumer event channel control.

int TAO_EC_Gateway_IIOP_Factory::fini (  void   )  [virtual]

Reimplemented from ACE_Shared_Object.

int TAO_EC_Gateway_IIOP_Factory::init (  int  argc, char *  argv[] )  [virtual]

int TAO_EC_Gateway_IIOP_Factory::init_svcs (  void   )  [static]

Helper function to register the Gateway into the service configurator.

void TAO_EC_Gateway_IIOP_Factory::unsupported_option_value (  const char *  option_name, const char *  option_value )  [private]

Helper for agrument parsing. Prints out an error message about unsupported option value.

ACE_INLINE int TAO_EC_Gateway_IIOP_Factory::use_consumer_proxy_map (  void   )  const

Accessors to use_consumer_proxy_map flag.

ACE_INLINE int TAO_EC_Gateway_IIOP_Factory::use_ttl (  void   )  const

Accessors to use_ttl flag.

---

Member Data Documentation

int TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_ [protected]

The control policy for the consumer event channel.

int TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_period_ [protected]

The consumer event channel control periods in usecs.

ACE_Time_Value TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_timeout_ [protected]

The control timeout in usecs for the consumer event channel.

ACE_CString TAO_EC_Gateway_IIOP_Factory::orbid_ [protected]

Use this ORB to locate global resources.

int TAO_EC_Gateway_IIOP_Factory::use_consumer_proxy_map_ [protected]

The flag for using the consumer proxy map. With 1 the consumer proxy map is used, meaning that for each unique source id we use a different proxy push consumer, if 0, we only use one proxy push consumer for all source ids.

int TAO_EC_Gateway_IIOP_Factory::use_ttl_ [protected]

If 1, we use the TTL flags, if 0, we just ignore TTL. Note: When this flag is set to 0, make sure that no recursive structures exists in the gateway setup for the same source/type combination, else one event will flow continuosly through all gateways.

---

The documentation for this class was generated from the following files:

• EC_Gateway_IIOP_Factory.h
• EC_Gateway_IIOP_Factory.cpp
• EC_Gateway_IIOP_Factory.i

---
