TAO_ECG_Mcast_Gateway Class Reference

Implement the builder for setting up Event Channel multicast gateway. NOT THREAD-SAFE. More...

#include <ECG_Mcast_Gateway.h>

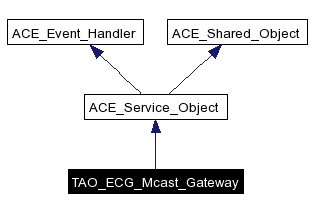

Inheritance diagram for TAO_ECG_Mcast_Gateway:

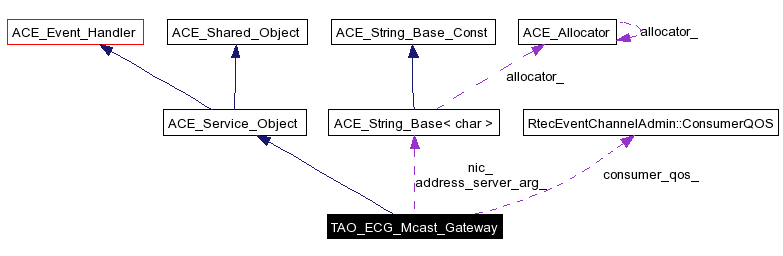

[legend]Collaboration diagram for TAO_ECG_Mcast_Gateway:

[legend]List of all members.


Public Types

enum	Service_Type { ECG_MCAST_SENDER, ECG_MCAST_RECEIVER, ECG_MCAST_TWO_WAY }
enum	Address_Server_Type { ECG_ADDRESS_SERVER_BASIC, ECG_ADDRESS_SERVER_SOURCE, ECG_ADDRESS_SERVER_TYPE }
enum	Handler_Type { ECG_HANDLER_BASIC, ECG_HANDLER_COMPLEX, ECG_HANDLER_UDP }
Public Member Functions
	TAO_ECG_Mcast_Gateway (void)
	Constructor.
int	init (const char *address_server_arg, const Attributes &attributes=Attributes())
int	init (const RtecEventChannelAdmin::ConsumerQOS &consumer_qos, const char *address_server_arg, const Attributes &attributes=Attributes())
void	run (CORBA::ORB_ptr orb, RtecEventChannelAdmin::EventChannel_ptr ec ACE_ENV_ARG_DECL)

virtual int	init (int argc, char *argv[])
virtual int	fini (void)
Static Public Member Functions
int	init_svcs (void)
Private Member Functions

void	verify_args (CORBA::ORB_ptr orb, RtecEventChannelAdmin::EventChannel_ptr ec ACE_ENV_ARG_DECL)
	Check that arguments to run() are not nil.
int	validate_configuration (void)
	Verifies configuration values specified through init() make sense.

PortableServer::ServantBase *	init_address_server (void)
TAO_EC_Servant_Var< TAO_ECG_UDP_Sender >	init_sender (RtecEventChannelAdmin::EventChannel_ptr ec, RtecUDPAdmin::AddrServer_ptr address_server, TAO_ECG_Refcounted_Endpoint endpoint_rptr ACE_ENV_ARG_DECL)
TAO_EC_Servant_Var< TAO_ECG_UDP_Receiver >	init_receiver (RtecEventChannelAdmin::EventChannel_ptr ec, RtecUDPAdmin::AddrServer_ptr address_server, TAO_ECG_Refcounted_Endpoint endpoint_rptr ACE_ENV_ARG_DECL)
TAO_ECG_Refcounted_Endpoint	init_endpoint (void)
TAO_ECG_Refcounted_Handler	init_handler (TAO_ECG_Dgram_Handler recv, RtecEventChannelAdmin::EventChannel_ptr ec, ACE_Reactor reactor ACE_ENV_ARG_DECL)
Private Attributes

Service_Type	service_type_
Handler_Type	handler_type_
Address_Server_Type	address_server_type_
ACE_CString	address_server_arg_
u_char	ttl_value_
ACE_CString	nic_
int	ip_multicast_loop_
int	non_blocking_
RtecEventChannelAdmin::ConsumerQOS	consumer_qos_

Detailed Description

Implement the builder for setting up Event Channel multicast gateway. NOT THREAD-SAFE.

This class simplifies creation of federated Event Channels by presenting a simple unified interface for creating and configuring all components needed to federate an Event Channel. Configuration options are described below.

NOTE: This class does not own any of the components it creates and its lifetime is independent of theirs. This class acts purely as a wrapper facade for creating and wiring appropriate components together.

Todo:: This class is an ACE_Service_Object, but the only reason for it is the need for easy configuration using files. Since ACE_Service_Object provides much more than that, we should look into replacing it with a more lightweight utility that would serve our needs.

CONFIGURATION OPTIONS There are two ways to use this class: 1) Use service config file to specify configuration options (which are described below), and use service configurator to obtain a an instance of configured TAO_ECG_Mcast_Gateway in your program. (See TAO/orbsvcs/tests/Event/Mcast/Common and TAO/orbsvcs/tests/Event/Mcast/Simple for an example.)

Service config file options:

-ECGService <service> Valid values: sender, receiver, two_way Specifies whether this gateway should act as a multicast sender of the events or multicast receiver, or both.

-ECGAddressServer <server_type> Valid values: basic, source, type Specifies what implementation of the address server should be used by the gateway. basic - the same multicast address is returned for all event headers. source - multicast addresses are returned based on the event source, according to the mapping provided at initialization. type - multicast addresses are returned based on the event type, according to the mapping provided at initialization.

-ECGAddressServerArg <arg> Valid value: arg is a string, whose format requirements are specific to the implementation of address server used. Arg is not interpreted by the gateway, but simply passed to the address server specified by -ECGAddressServer during initialization. THIS OPTION MUST ALWAYS BE SPECIFIED BY THE USER (there is no default value for it)

-ECGHandler <handler_type> Valid values: basic, complex, udp Specifies what implementation of event handler should be used if gateway is acting as events receiver. basic - a simple event handler listening on a single mcast address. complex - event handler listening on multiple mcast addresses based on events of interest to consumers. udp - similar to basic handler, except listens on udp address as opposed to a multicast group.

-ECGTTL <ttl> Valid values: a number > 0 IP_Multicast time to live value that should be set on a sending socket. This option matters only if the gateway is acting as a sender of mcast messages.

-ECGNIC <nic> Valid values: name of the network interface This interface is used for sending and/or receiving multicast messages.

-ECGNonBlocking Boolean flag to configure if the socket is in blocking or non-blocking code. The default is non-blocking. NOTE: Certain device drivers block the process if the physical link fails.

2) Create an instance of TAO_ECG_Mcast_Gateway in your code, on the stack or dynamically, and use init () method to configure it. No configuration files involved. See service config options above for the description of configurable options, and init() method below for how to specify them.

Default configuration values (for either use case) can be found in ECG_Defaults.h

Member Enumeration Documentation

enum TAO_ECG_Mcast_Gateway::Address_Server_Type

Enumeration values:

ECG_ADDRESS_SERVER_BASIC

ECG_ADDRESS_SERVER_SOURCE

ECG_ADDRESS_SERVER_TYPE

enum TAO_ECG_Mcast_Gateway::Handler_Type

Enumeration values:

ECG_HANDLER_BASIC

ECG_HANDLER_COMPLEX

ECG_HANDLER_UDP

enum TAO_ECG_Mcast_Gateway::Service_Type

Enumeration values:

ECG_MCAST_SENDER

ECG_MCAST_RECEIVER

ECG_MCAST_TWO_WAY

Constructor & Destructor Documentation

ACE_INLINE TAO_ECG_Mcast_Gateway::TAO_ECG_Mcast_Gateway ( void )

Constructor.

Member Function Documentation

int TAO_ECG_Mcast_Gateway::fini ( void ) [virtual]

Reimplemented from ACE_Shared_Object.

int TAO_ECG_Mcast_Gateway::init ( const RtecEventChannelAdmin::ConsumerQOS & consumer_qos,

const char * address_server_arg,

const Attributes & attributes = Attributes()

)

Same as the method above, but also gives the client an opportunity to specify consumer qos, i.e., which EC traffic should get multicasted.

int TAO_ECG_Mcast_Gateway::init ( const char * address_server_arg,

const Attributes & attributes = Attributes()

)

Configure TAO_ECG_Mcast_Gateway programatically. This method should be used when NOT using service configurator to obtain/configure TAO_ECG_Mcast_Gateway. See class documentation above for more info.

int TAO_ECG_Mcast_Gateway::init ( int argc,

char * argv[]

) [virtual]

PortableServer::ServantBase * TAO_ECG_Mcast_Gateway::init_address_server ( void ) [private]

TAO_ECG_Refcounted_Endpoint TAO_ECG_Mcast_Gateway::init_endpoint ( void ) [private]

TAO_ECG_Refcounted_Handler TAO_ECG_Mcast_Gateway::init_handler ( TAO_ECG_Dgram_Handler * recv,

RtecEventChannelAdmin::EventChannel_ptr ec,

ACE_Reactor *reactor ACE_ENV_ARG_DECL

) [private]

TAO_EC_Servant_Var< TAO_ECG_UDP_Receiver > TAO_ECG_Mcast_Gateway::init_receiver ( RtecEventChannelAdmin::EventChannel_ptr ec,

RtecUDPAdmin::AddrServer_ptr address_server,

TAO_ECG_Refcounted_Endpoint endpoint_rptr ACE_ENV_ARG_DECL

) [private]

TAO_EC_Servant_Var< TAO_ECG_UDP_Sender > TAO_ECG_Mcast_Gateway::init_sender ( RtecEventChannelAdmin::EventChannel_ptr ec,

RtecUDPAdmin::AddrServer_ptr address_server,

TAO_ECG_Refcounted_Endpoint endpoint_rptr ACE_ENV_ARG_DECL

) [private]

int TAO_ECG_Mcast_Gateway::init_svcs ( void ) [static]

Helper function to register the Gateway into the service configurator.

void TAO_ECG_Mcast_Gateway::run ( CORBA::ORB_ptr orb,

RtecEventChannelAdmin::EventChannel_ptr ec ACE_ENV_ARG_DECL

)

The main method - create, configure and run federation components according to the specified configuration.

int TAO_ECG_Mcast_Gateway::validate_configuration ( void ) [private]

Verifies configuration values specified through init() make sense.

void TAO_ECG_Mcast_Gateway::verify_args ( CORBA::ORB_ptr orb,

RtecEventChannelAdmin::EventChannel_ptr ec ACE_ENV_ARG_DECL

) [private]

Check that arguments to run() are not nil.
