TAO_RT_Stub Class Reference

#include <RT_Stub.h>

Inheritance diagram for TAO_RT_Stub:

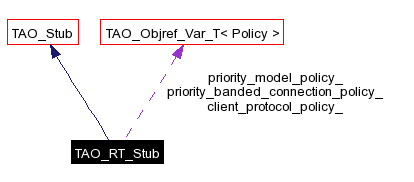

[legend]Collaboration diagram for TAO_RT_Stub:

[legend]List of all members.

Public Member Functions
	TAO_RT_Stub (const char *repository_id, const TAO_MProfile &profiles, TAO_ORB_Core *orb_core)
virtual	~TAO_RT_Stub (void)
CORBA::Policy_ptr	get_policy (CORBA::PolicyType type ACE_ENV_ARG_DECL)
CORBA::Policy_ptr	get_cached_policy (TAO_Cached_Policy_Type type ACE_ENV_ARG_DECL)
TAO_Stub *	set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add ACE_ENV_ARG_DECL)
Private Member Functions
void	parse_policies (ACE_ENV_SINGLE_ARG_DECL)
	Helper method used to parse the policies.
void	exposed_priority_model (CORBA::Policy_ptr policy)
void	exposed_priority_banded_connection (CORBA::Policy_ptr policy)
void	exposed_client_protocol (CORBA::Policy_ptr policy)
CORBA::Policy_ptr	exposed_priority_model (ACE_ENV_SINGLE_ARG_DECL)
CORBA::Policy_ptr	exposed_priority_banded_connection (ACE_ENV_SINGLE_ARG_DECL)
CORBA::Policy_ptr	exposed_client_protocol (ACE_ENV_SINGLE_ARG_DECL)
CORBA::Policy *	effective_priority_banded_connection (ACE_ENV_SINGLE_ARG_DECL)
CORBA::Policy *	effective_client_protocol (ACE_ENV_SINGLE_ARG_DECL)
	TAO_RT_Stub (const TAO_RT_Stub &)
TAO_RT_Stub &	operator= (const TAO_RT_Stub &)
Private Attributes
CORBA::Policy_var	priority_model_policy_
CORBA::Policy_var	priority_banded_connection_policy_
CORBA::Policy_var	client_protocol_policy_
CORBA::Boolean	are_policies_parsed_

---

Detailed Description

This class represent a stub with extended functionality, which are needed for RTCORBA.

---

Constructor & Destructor Documentation

TAO_RT_Stub::TAO_RT_Stub (  const char *  repository_id, const TAO_MProfile &  profiles, TAO_ORB_Core *  orb_core )

TAO_RT_Stub::~TAO_RT_Stub (  void   )  [virtual]

TAO_RT_Stub::TAO_RT_Stub (  const TAO_RT_Stub &   )  [private]

---

Member Function Documentation

CORBA::Policy * TAO_RT_Stub::effective_client_protocol (  ACE_ENV_SINGLE_ARG_DECL   )  [private]

CORBA::Policy * TAO_RT_Stub::effective_priority_banded_connection (  ACE_ENV_SINGLE_ARG_DECL   )  [private]

CORBA::Policy * TAO_RT_Stub::exposed_client_protocol (  ACE_ENV_SINGLE_ARG_DECL   )  [private]

Returns the CORBA::Policy (which will be narrowed and used as RTCORBA::ClientProtocolPolicy) exported in object's IOR.

void TAO_RT_Stub::exposed_client_protocol (  CORBA::Policy_ptr  policy  )  [private]

CORBA::Policy * TAO_RT_Stub::exposed_priority_banded_connection (  ACE_ENV_SINGLE_ARG_DECL   )  [private]

Returns the CORBA::Policy (which will be narrowed and used as RTCORBA::PriorityBandedConnectionPolicy) exported in object's IOR.

void TAO_RT_Stub::exposed_priority_banded_connection (  CORBA::Policy_ptr  policy  )  [private]

CORBA::Policy * TAO_RT_Stub::exposed_priority_model (  ACE_ENV_SINGLE_ARG_DECL   )  [private]

Returns the CORBA::Policy (which will be narrowed to be used as RTCORBA::PriorityModelPolicy) exported in object's IOR.

void TAO_RT_Stub::exposed_priority_model (  CORBA::Policy_ptr  policy  )  [private]

CORBA::Policy_ptr TAO_RT_Stub::get_cached_policy (  TAO_Cached_Policy_Type type  ACE_ENV_ARG_DECL  )  [virtual]

Reimplemented from TAO_Stub.

CORBA::Policy_ptr TAO_RT_Stub::get_policy (  CORBA::PolicyType type  ACE_ENV_ARG_DECL  )  [virtual]

Returns the effective policy if <type> is a known client-exposed policy type. Returns the effective override for all other policy types. Reimplemented from TAO_Stub.

TAO_RT_Stub& TAO_RT_Stub::operator= (  const TAO_RT_Stub &   )  [private]

void TAO_RT_Stub::parse_policies (  ACE_ENV_SINGLE_ARG_DECL   )  [private]

Helper method used to parse the policies.

TAO_Stub * TAO_RT_Stub::set_policy_overrides (  const CORBA::PolicyList &  policies, CORBA::SetOverrideType set_add  ACE_ENV_ARG_DECL )  [virtual]

Reimplemented from TAO_Stub.

---

Member Data Documentation

CORBA::Boolean TAO_RT_Stub::are_policies_parsed_ [private]

CORBA::Policy_var TAO_RT_Stub::client_protocol_policy_ [private]

CORBA::Policy_var TAO_RT_Stub::priority_banded_connection_policy_ [private]

CORBA::Policy_var TAO_RT_Stub::priority_model_policy_ [private]

---

The documentation for this class was generated from the following files:

• RT_Stub.h
• RT_Stub.cpp

---
