TAO_UIPMC_Profile Class Reference

This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network. More...

#include <UIPMC_Profile.h>

Inheritance diagram for TAO_UIPMC_Profile:

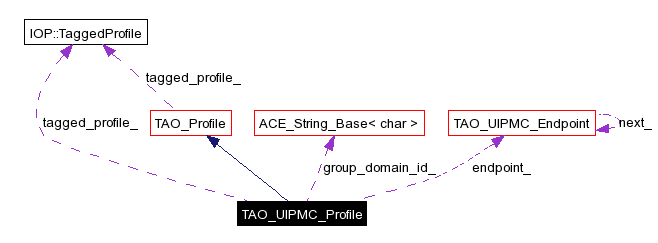

[legend]Collaboration diagram for TAO_UIPMC_Profile:

[legend]List of all members.

Public Member Functions
virtual char	object_key_delimiter (void) const
	TAO_UIPMC_Profile (TAO_ORB_Core *orb_core)
	TAO_UIPMC_Profile (const ACE_INET_Addr &addr, TAO_ORB_Core *orb_core)
	TAO_UIPMC_Profile (const CORBA::Octet class_d_address[4], CORBA::UShort port, TAO_ORB_Core *orb_core)
	Profile constructor.
	TAO_UIPMC_Profile (const char *string, TAO_ORB_Core *orb_core ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	Create object using a string ior.
	~TAO_UIPMC_Profile (void)
	Destructor is to be called only through <_decr_refcnt>.
virtual void	parse_string (const char *string ACE_ENV_ARG_DECL)
	Template methods. Please see tao/Profile.h for documentation.
virtual char *	to_string (ACE_ENV_SINGLE_ARG_DECL)
virtual int	encode_endpoints (void)
virtual TAO_Endpoint *	endpoint (void)
virtual CORBA::ULong	endpoint_count (void) const
virtual CORBA::ULong	hash (CORBA::ULong max ACE_ENV_ARG_DECL_WITH_DEFAULTS)
virtual IOP::TaggedProfile &	create_tagged_profile (void)
virtual void	request_target_specifier (TAO_Target_Specification &target_spec, TAO_Target_Specification::TAO_Target_Address r ACE_ENV_ARG_DECL)
virtual int	supports_multicast (void) const
virtual void	addressing_mode (CORBA::Short addr_mode ACE_ENV_ARG_DECL)
void	set_group_info (const char *domain_id, PortableGroup::ObjectGroupId group_id, PortableGroup::ObjectGroupRefVersion ref_version)
	Add the mandatory group component to this profile.
Static Public Member Functions
const char *	prefix (void)
	Return the char string prefix.
int	extract_group_component (const IOP::TaggedProfile &profile, PortableGroup::TagGroupTaggedComponent &group)
Static Public Attributes
const char	object_key_delimiter_ = '/'
	The object key delimiter that UIPMC uses or expects.
Protected Member Functions
virtual int	decode_profile (TAO_InputCDR &cdr)
	Template methods, please see documentation in tao/Profile.h.
virtual int	decode_endpoints (void)
virtual void	parse_string_i (const char *ACE_ENV_ARG_DECL)
virtual void	create_profile_body (TAO_OutputCDR &cdr) const
virtual CORBA::Boolean	do_is_equivalent (const TAO_Profile *other_profile)
virtual void	update_cached_group_component (void)
Protected Attributes
TAO_UIPMC_Endpoint	endpoint_
CORBA::ULong	count_
	Number of endpoints in the list headed by <endpoint_>.
Private Attributes
IOP::TaggedProfile	tagged_profile_
	Cached version of our tagged profile.
ACE_CString	group_domain_id_
	Group Domain ID.
PortableGroup::ObjectGroupId	group_id_
	Our group ID within the group domain.
PortableGroup::ObjectGroupRefVersion	ref_version_
	The group reference's version.

---

Detailed Description

This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network.

This class defines the UIPMC profile as specified in the CORBA specification.

: This class inherits the ObjectKey from TAO_Profile which may not be needed at all! But lets punt on this for the timebeing.

---

Constructor & Destructor Documentation

TAO_UIPMC_Profile::TAO_UIPMC_Profile (  TAO_ORB_Core *  orb_core  )

Profile constructor, default. Used when the profile contents are not yet known or when it is being decoded from an IOR.

TAO_UIPMC_Profile::TAO_UIPMC_Profile (  const ACE_INET_Addr &  addr, TAO_ORB_Core *  orb_core )

Profile constructor, same as above except the object_key has already been marshaled.

TAO_UIPMC_Profile::TAO_UIPMC_Profile (  const CORBA::Octet  class_d_address[4], CORBA::UShort  port, TAO_ORB_Core *  orb_core )

Profile constructor.

TAO_UIPMC_Profile::TAO_UIPMC_Profile (  const char *  string, TAO_ORB_Core *orb_core  ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Create object using a string ior.

TAO_UIPMC_Profile::~TAO_UIPMC_Profile (  void   )

Destructor is to be called only through <_decr_refcnt>.

---

Member Function Documentation

void TAO_UIPMC_Profile::addressing_mode (  CORBA::Short addr_mode  ACE_ENV_ARG_DECL  )  [virtual]

Reimplemented from TAO_Profile.

void TAO_UIPMC_Profile::create_profile_body (  TAO_OutputCDR &  cdr  )  const [protected, virtual]

Implements TAO_Profile.

IOP::TaggedProfile & TAO_UIPMC_Profile::create_tagged_profile (  void   )  [virtual]

Reimplemented from TAO_Profile.

int TAO_UIPMC_Profile::decode_endpoints (  void   )  [protected, virtual]

Implements TAO_Profile.

int TAO_UIPMC_Profile::decode_profile (  TAO_InputCDR &  cdr  )  [protected, virtual]

Template methods, please see documentation in tao/Profile.h. Implements TAO_Profile.

CORBA::Boolean TAO_UIPMC_Profile::do_is_equivalent (  const TAO_Profile *  other_profile  )  [protected, virtual]

Implements TAO_Profile.

int TAO_UIPMC_Profile::encode_endpoints (  void   )  [virtual]

Implements TAO_Profile.

TAO_Endpoint * TAO_UIPMC_Profile::endpoint (  void   )  [virtual]

Implements TAO_Profile.

CORBA::ULong TAO_UIPMC_Profile::endpoint_count (  void   )  const [virtual]

Implements TAO_Profile.

int TAO_UIPMC_Profile::extract_group_component (  const IOP::TaggedProfile &  profile, PortableGroup::TagGroupTaggedComponent &  group )  [static]

CORBA::ULong TAO_UIPMC_Profile::hash (  CORBA::ULong max  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  [virtual]

Implements TAO_Profile.

char TAO_UIPMC_Profile::object_key_delimiter (  void   )  const [virtual]

Implements TAO_Profile.

void TAO_UIPMC_Profile::parse_string (  const char *string  ACE_ENV_ARG_DECL  )  [virtual]

Template methods. Please see tao/Profile.h for documentation. Reimplemented from TAO_Profile.

virtual void TAO_UIPMC_Profile::parse_string_i (  const char *  ACE_ENV_ARG_DECL  )  [protected, virtual]

const char * TAO_UIPMC_Profile::prefix (  void   )  [static]

Return the char string prefix.

virtual void TAO_UIPMC_Profile::request_target_specifier (  TAO_Target_Specification &  target_spec, TAO_Target_Specification::TAO_Target_Address r  ACE_ENV_ARG_DECL )  [virtual]

void TAO_UIPMC_Profile::set_group_info (  const char *  domain_id, PortableGroup::ObjectGroupId  group_id, PortableGroup::ObjectGroupRefVersion  ref_version )

Add the mandatory group component to this profile.

int TAO_UIPMC_Profile::supports_multicast (  void   )  const [virtual]

Reimplemented from TAO_Profile.

char * TAO_UIPMC_Profile::to_string (  ACE_ENV_SINGLE_ARG_DECL   )  [virtual]

Implements TAO_Profile.

void TAO_UIPMC_Profile::update_cached_group_component (  void   )  [protected, virtual]

---

Member Data Documentation

CORBA::ULong TAO_UIPMC_Profile::count_ [protected]

Number of endpoints in the list headed by <endpoint_>.

TAO_UIPMC_Endpoint TAO_UIPMC_Profile::endpoint_ [protected]

Head of this profile's list of endpoints. This endpoint is not dynamically allocated because a profile always contains at least one endpoint. Currently, a profile contains more than one endpoint, i.e., list contains more than just the head, only when RTCORBA is enabled. However, in the near future, this will be used in nonRT mode as well, e.g., to support TAG_ALTERNATE_IIOP_ADDRESS feature. Addressing info of the default endpoint, i.e., head of the list, is transmitted using standard UIPMC ProfileBody components. See <encode_endpoints> method documentation above for how the rest of the endpoint list is transmitted.

ACE_CString TAO_UIPMC_Profile::group_domain_id_ [private]

Group Domain ID.

PortableGroup::ObjectGroupId TAO_UIPMC_Profile::group_id_ [private]

Our group ID within the group domain.

const char TAO_UIPMC_Profile::object_key_delimiter_ = '/' [static]

The object key delimiter that UIPMC uses or expects.

PortableGroup::ObjectGroupRefVersion TAO_UIPMC_Profile::ref_version_ [private]

The group reference's version.

IOP::TaggedProfile TAO_UIPMC_Profile::tagged_profile_ [private]

Cached version of our tagged profile. Reimplemented from TAO_Profile.

---

The documentation for this class was generated from the following files:

• UIPMC_Profile.h
• UIPMC_Profile.cpp

---
