TAO::PG_Object_Group Class Reference

#include <PG_Object_Group.h>

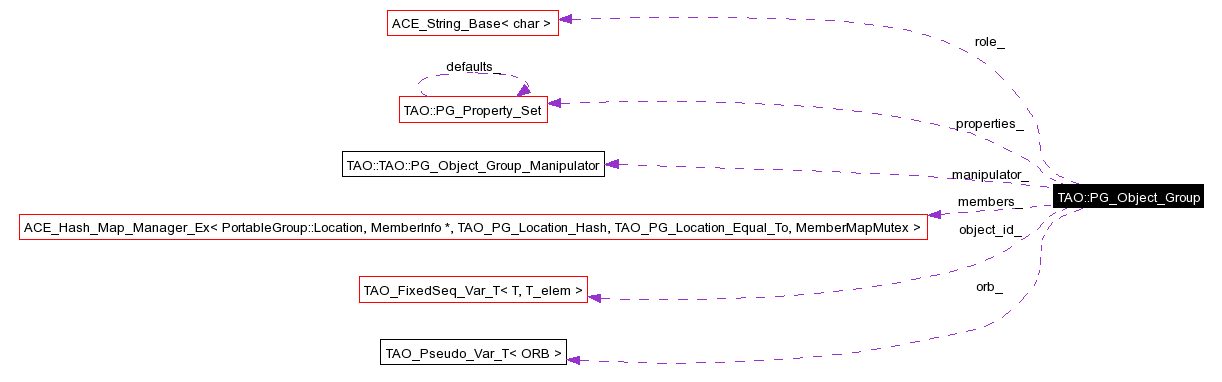

Collaboration diagram for TAO::PG_Object_Group:

[legend]List of all members.

Public Member Functions
	PG_Object_Group (CORBA::ORB_ptr orb, PortableGroup::FactoryRegistry_ptr factory_registry, TAO::PG_Object_Group_Manipulator &manipulator, CORBA::Object_ptr empty_group, const PortableGroup::TagGroupTaggedComponent &tagged_component, const char *type_id, const PortableGroup::Criteria &the_criteria, TAO::PG_Property_Set *type_properties)
	~PG_Object_Group ()
	Destructor.
PortableGroup::ObjectGroup_ptr	reference () const
	return a duplicated reference to this group (IOGR)
void	get_group_specific_factories (PortableGroup::FactoryInfos &result) const
const PortableGroup::Location &	get_primary_location () const
PortableGroup::TypeId	get_type_id () const
PortableGroup::MembershipStyleValue	get_membership_style () const
PortableGroup::MinimumNumberMembersValue	get_minimum_number_members () const
PortableGroup::InitialNumberMembersValue	get_initial_number_members () const
void	set_properties_dynamically (const PortableGroup::Properties &overrides ACE_ENV_ARG_DECL) throw (CORBA::SystemException, PortableGroup::InvalidProperty, PortableGroup::UnsupportedProperty)
void	get_properties (PortableGroup::Properties_var &result) const throw (CORBA::SystemException)
PortableGroup::ObjectGroupId	get_object_group_id () const
void	add_member (const PortableGroup::Location &the_location, CORBA::Object_ptr member ACE_ENV_ARG_DECL) throw (CORBA::SystemException, PortableGroup::ObjectNotAdded)
int	set_primary_member (TAO_IOP::TAO_IOR_Property *prop, const PortableGroup::Location &the_location ACE_ENV_ARG_DECL) throw ( CORBA::SystemException , PortableGroup::MemberNotFound )
void	remove_member (const PortableGroup::Location &the_location ACE_ENV_ARG_DECL) throw (CORBA::SystemException, PortableGroup::MemberNotFound)
void	create_member (const PortableGroup::Location &the_location, const char *type_id, const PortableGroup::Criteria &the_criteria ACE_ENV_ARG_DECL) throw (CORBA::SystemException, PortableGroup::MemberAlreadyPresent, PortableGroup::NoFactory, PortableGroup::ObjectNotCreated, PortableGroup::InvalidCriteria, PortableGroup::CannotMeetCriteria)
PortableGroup::Locations *	locations_of_members (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException)
CORBA::Object_ptr	get_member_reference (const PortableGroup::Location &the_location ACE_ENV_ARG_DECL) throw ( CORBA::SystemException, PortableGroup::MemberNotFound)
void	initial_populate (ACE_ENV_SINGLE_ARG_DECL)
void	minimum_populate (ACE_ENV_SINGLE_ARG_DECL)
int	has_member_at (const PortableGroup::Location &location)
Private Types
typedef TAO_SYNCH_MUTEX	MemberMapMutex
typedef ACE_Hash_Map_Manager_Ex< PortableGroup::Location, MemberInfo *, TAO_PG_Location_Hash, TAO_PG_Location_Equal_To, MemberMapMutex >	MemberMap
typedef ACE_Hash_Map_Entry< PortableGroup::Location, MemberInfo * >	MemberMap_Entry
typedef ACE_Hash_Map_Iterator_Ex< PortableGroup::Location, MemberInfo *, TAO_PG_Location_Hash, TAO_PG_Location_Equal_To, MemberMapMutex >	MemberMap_Iterator
Private Member Functions
int	increment_version ()
void	distribute_iogr (ACE_ENV_SINGLE_ARG_DECL)
PortableGroup::ObjectGroup_ptr	add_member_to_iogr (CORBA::Object_ptr member ACE_ENV_ARG_DECL)
void	create_members (size_t count ACE_ENV_ARG_DECL) throw ( CORBA::SystemException, PortableGroup::NoFactory )
	PG_Object_Group ()
	PG_Object_Group (const PG_Object_Group &rhs)
PG_Object_Group &	operator= (const PG_Object_Group &rhs)
Private Attributes
TAO_SYNCH_MUTEX	internals_
CORBA::ORB_var	orb_
PortableGroup::FactoryRegistry_var	factory_registry_
	Where to find the factories for replicas.
TAO::PG_Object_Group_Manipulator &	manipulator_
int	empty_
	boolean true if empty group
ACE_CString	role_
PortableGroup::TypeId_var	type_id_
PortableGroup::TagGroupTaggedComponent	tagged_component_
PortableGroup::ObjectGroup_var	reference_
PortableServer::ObjectId_var	object_id_
MemberMap	members_
PortableGroup::Location	primary_location_
TAO::PG_Property_Set	properties_
PortableGroup::InitialNumberMembersValue	initial_number_members_
PortableGroup::MinimumNumberMembersValue	minimum_number_members_
PortableGroup::FactoryInfos	group_specific_factories_

---

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex< PortableGroup::Location, MemberInfo *, TAO_PG_Location_Hash, TAO_PG_Location_Equal_To, MemberMapMutex> TAO::PG_Object_Group::MemberMap [private]

typedef ACE_Hash_Map_Entry<PortableGroup::Location, MemberInfo *> TAO::PG_Object_Group::MemberMap_Entry [private]

typedef ACE_Hash_Map_Iterator_Ex< PortableGroup::Location, MemberInfo *, TAO_PG_Location_Hash, TAO_PG_Location_Equal_To, MemberMapMutex> TAO::PG_Object_Group::MemberMap_Iterator [private]

typedef TAO_SYNCH_MUTEX TAO::PG_Object_Group::MemberMapMutex [private]

---

Constructor & Destructor Documentation

TAO::PG_Object_Group::PG_Object_Group (  CORBA::ORB_ptr  orb, PortableGroup::FactoryRegistry_ptr  factory_registry, TAO::PG_Object_Group_Manipulator &  manipulator, CORBA::Object_ptr  empty_group, const PortableGroup::TagGroupTaggedComponent &  tagged_component, const char *  type_id, const PortableGroup::Criteria &  the_criteria, TAO::PG_Property_Set *  type_properties )

@TODO DOC

TAO::PG_Object_Group::~PG_Object_Group (   )

Destructor.

TAO::PG_Object_Group::PG_Object_Group (   )  [private]

TAO::PG_Object_Group::PG_Object_Group (  const PG_Object_Group &  rhs  )  [private]

---

Member Function Documentation

void TAO::PG_Object_Group::add_member (  const PortableGroup::Location &  the_location, CORBA::Object_ptr member  ACE_ENV_ARG_DECL )  throw (CORBA::SystemException, PortableGroup::ObjectNotAdded)

Add a new member to the group. Parameters: the_location  the location for the new member member  the member to be added

PortableGroup::ObjectGroup_ptr TAO::PG_Object_Group::add_member_to_iogr (  CORBA::Object_ptr member  ACE_ENV_ARG_DECL  )  [private]

void TAO::PG_Object_Group::create_member (  const PortableGroup::Location &  the_location, const char *  type_id, const PortableGroup::Criteria &the_criteria  ACE_ENV_ARG_DECL )  throw (CORBA::SystemException, PortableGroup::MemberAlreadyPresent, PortableGroup::NoFactory, PortableGroup::ObjectNotCreated, PortableGroup::InvalidCriteria, PortableGroup::CannotMeetCriteria)

@TODO DOC

void TAO::PG_Object_Group::create_members (  size_t count  ACE_ENV_ARG_DECL  )  throw ( CORBA::SystemException, PortableGroup::NoFactory ) [private]

void TAO::PG_Object_Group::distribute_iogr (  ACE_ENV_SINGLE_ARG_DECL   )  [private]

void TAO::PG_Object_Group::get_group_specific_factories (  PortableGroup::FactoryInfos &  result  )  const

Note the caller receives a copy of the factoryinfos in the result argument. inefficient, but thread safe.

PortableGroup::InitialNumberMembersValue TAO::PG_Object_Group::get_initial_number_members (   )  const

@TODO DOC

CORBA::Object_ptr TAO::PG_Object_Group::get_member_reference (  const PortableGroup::Location &the_location  ACE_ENV_ARG_DECL  )  throw ( CORBA::SystemException, PortableGroup::MemberNotFound)

@TODO DOC

PortableGroup::MembershipStyleValue TAO::PG_Object_Group::get_membership_style (   )  const

@TODO DOC

PortableGroup::MinimumNumberMembersValue TAO::PG_Object_Group::get_minimum_number_members (   )  const

@TODO DOC

PortableGroup::ObjectGroupId TAO::PG_Object_Group::get_object_group_id (   )  const

@TODO DOC

const PortableGroup::Location & TAO::PG_Object_Group::get_primary_location (   )  const

get location of primary member

void TAO::PG_Object_Group::get_properties (  PortableGroup::Properties_var &  result  )  const throw (CORBA::SystemException)

@TODO DOC

PortableGroup::TypeId TAO::PG_Object_Group::get_type_id (   )  const

returns a duplicate caller must release

int TAO::PG_Object_Group::has_member_at (  const PortableGroup::Location &  location  )

@TODO DOC

int TAO::PG_Object_Group::increment_version (   )  [private]

void TAO::PG_Object_Group::initial_populate (  ACE_ENV_SINGLE_ARG_DECL   )

@TODO DOC

PortableGroup::Locations * TAO::PG_Object_Group::locations_of_members (  ACE_ENV_SINGLE_ARG_DECL   )  throw (CORBA::SystemException)

@TODO DOC

void TAO::PG_Object_Group::minimum_populate (  ACE_ENV_SINGLE_ARG_DECL   )

@TODO DOC

PG_Object_Group& TAO::PG_Object_Group::operator= (  const PG_Object_Group &  rhs  )  [private]

PortableGroup::ObjectGroup_ptr TAO::PG_Object_Group::reference (   )  const

return a duplicated reference to this group (IOGR)

void TAO::PG_Object_Group::remove_member (  const PortableGroup::Location &the_location  ACE_ENV_ARG_DECL  )  throw (CORBA::SystemException, PortableGroup::MemberNotFound)

@TODO DOC

int TAO::PG_Object_Group::set_primary_member (  TAO_IOP::TAO_IOR_Property *  prop, const PortableGroup::Location &the_location  ACE_ENV_ARG_DECL )  throw ( CORBA::SystemException , PortableGroup::MemberNotFound )

set the replica at the given location to be primary. Note: This should return void and throw FT::PrimaryNotSet but to avoid dependancies between PortableGroup and FaultTolerance it returns a boolean result. A false return means caller should throw FT::PrimaryNot_Set.

void TAO::PG_Object_Group::set_properties_dynamically (  const PortableGroup::Properties &overrides  ACE_ENV_ARG_DECL  )  throw (CORBA::SystemException, PortableGroup::InvalidProperty, PortableGroup::UnsupportedProperty)

@TODO DOC

---

Member Data Documentation

int TAO::PG_Object_Group::empty_ [private]

boolean true if empty group

PortableGroup::FactoryRegistry_var TAO::PG_Object_Group::factory_registry_ [private]

Where to find the factories for replicas.

PortableGroup::FactoryInfos TAO::PG_Object_Group::group_specific_factories_ [private]

PortableGroup::InitialNumberMembersValue TAO::PG_Object_Group::initial_number_members_ [private]

TAO_SYNCH_MUTEX TAO::PG_Object_Group::internals_ [mutable, private]

Protect internal state.

TAO::PG_Object_Group_Manipulator& TAO::PG_Object_Group::manipulator_ [private]

MemberMap TAO::PG_Object_Group::members_ [private]

PortableGroup::MinimumNumberMembersValue TAO::PG_Object_Group::minimum_number_members_ [private]

PortableServer::ObjectId_var TAO::PG_Object_Group::object_id_ [private]

The CORBA object id assigned to this object group

CORBA::ORB_var TAO::PG_Object_Group::orb_ [private]

PortableGroup::Location TAO::PG_Object_Group::primary_location_ [private]

TAO::PG_Property_Set TAO::PG_Object_Group::properties_ [private]

PortableGroup::ObjectGroup_var TAO::PG_Object_Group::reference_ [private]

the reference (IOGR) to this group

ACE_CString TAO::PG_Object_Group::role_ [private]

PortableGroup::TagGroupTaggedComponent TAO::PG_Object_Group::tagged_component_ [private]

the GroupTaggedComponent that defines this group contains: GIOP::Version component_version; TAO_String_Manager group_domain_id; PortableGroup::ObjectGroupId object_group_id; PortableGroup::ObjectGroupRefVersion object_group_ref_version;

PortableGroup::TypeId_var TAO::PG_Object_Group::type_id_ [private]

---

The documentation for this class was generated from the following files:

• PG_Object_Group.h
• PG_Object_Group.cpp

---
