TAO_Notify_Event Class Reference

Base class abstraction for Events flowing through the EventChannel. More...

#include <Event.h>

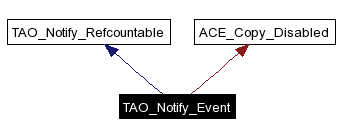

Inheritance diagram for TAO_Notify_Event:

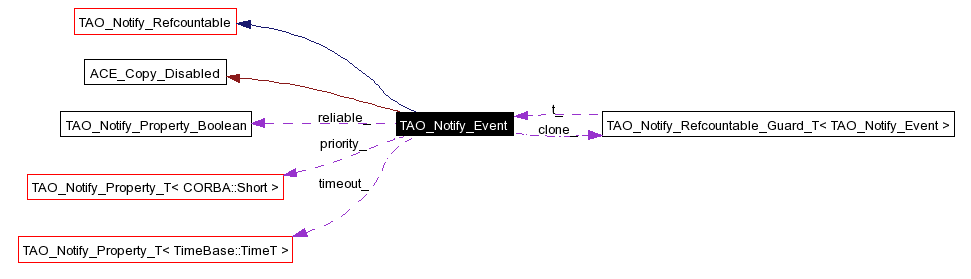

[legend]Collaboration diagram for TAO_Notify_Event:

[legend]List of all members.


Public Types
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Event >	Ptr
enum	{ MARSHAL_ANY = 1, MARSHAL_STRUCTURED = 2 }
Public Member Functions
	TAO_Notify_Event (void)
	Constuctor.
virtual	~TAO_Notify_Event ()
	Destructor.
virtual const TAO_Notify_EventType &	type (void) const =0
	Get the event type.
virtual CORBA::Boolean	do_match (CosNotifyFilter::Filter_ptr filter ACE_ENV_ARG_DECL) const =0
	Returns true if the filter matches.
virtual void	convert (CosNotification::StructuredEvent &notification) const =0
	Convert to CosNotification::Structured type.
virtual void	push (TAO_Notify_Consumer *consumer ACE_ENV_ARG_DECL) const =0
	Push event to consumer.
virtual void	push (Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder ACE_ENV_ARG_DECL) const =0
	Push event to the Event_Forwarder interface.
virtual void	push_no_filtering (Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder ACE_ENV_ARG_DECL) const =0
	Push event to the Event_Forwarder interface.
virtual void	push (Event_Forwarder::ProxyPushSupplier_ptr forwarder ACE_ENV_ARG_DECL) const =0
	Push event to the Event_Forwarder interface.
virtual void	push_no_filtering (Event_Forwarder::ProxyPushSupplier_ptr forwarder ACE_ENV_ARG_DECL) const =0
	Push event to the Event_Forwarder interface.
TAO_Notify_Event *	queueable_copy (ACE_ENV_SINGLE_ARG_DECL) const
	Return a pointer to a copy of this event on the heap.
virtual void	marshal (TAO_OutputCDR &cdr) const =0
	marshal this event into a CDR buffer (for persistence)
const TAO_Notify_Property_Short &	priority (void) const
const TAO_Notify_Property_Time &	timeout (void) const
	Timeout.
const TAO_Notify_Property_Boolean &	reliable (void) const
	Reliable.
Static Public Member Functions
void	translate (const CORBA::Any &any, CosNotification::StructuredEvent &notification)
	Translate Any to Structured.
void	translate (const CosNotification::StructuredEvent &notification, CORBA::Any &any)
	Translate Structured to Any.
TAO_Notify_Event *	unmarshal (TAO_InputCDR &cdr)
	Unmarshal an event from a CDR. (for persistence).
Protected Attributes
TAO_Notify_Property_Short	priority_
	= QoS properties Priority.
TAO_Notify_Property_Time	timeout_
	Timeout.
TAO_Notify_Property_Boolean	reliable_
	Reliability.
Private Member Functions
virtual TAO_Notify_Event *	copy (ACE_ENV_SINGLE_ARG_DECL) const =0
	Return a pointer to a copy of this event on the heap.
virtual void	release (void)
	The release method is called when the refcount reaches 0.
Private Attributes
Ptr	clone_
bool	is_on_heap_

Detailed Description

Base class abstraction for Events flowing through the EventChannel.

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T<TAO_Notify_Event> TAO_Notify_Event::Ptr

Reimplemented from TAO_Notify_Refcountable.

Member Enumeration Documentation

anonymous enum

Enumeration values:

MARSHAL_ANY

MARSHAL_STRUCTURED

Constructor & Destructor Documentation

TAO_Notify_Event::TAO_Notify_Event ( void )

Constuctor.

TAO_Notify_Event::~TAO_Notify_Event ( ) [virtual]

Destructor.

Member Function Documentation

virtual void TAO_Notify_Event::convert ( CosNotification::StructuredEvent & notification ) const [pure virtual]

Convert to CosNotification::Structured type.

virtual TAO_Notify_Event* TAO_Notify_Event::copy ( ACE_ENV_SINGLE_ARG_DECL ) const [private, pure virtual]

Return a pointer to a copy of this event on the heap.

virtual CORBA::Boolean TAO_Notify_Event::do_match ( CosNotifyFilter::Filter_ptr filter ACE_ENV_ARG_DECL ) const [pure virtual]

Returns true if the filter matches.

virtual void TAO_Notify_Event::marshal ( TAO_OutputCDR & cdr ) const [pure virtual]

marshal this event into a CDR buffer (for persistence)

const TAO_Notify_Property_Short& TAO_Notify_Event::priority ( void ) const

= Accessors Priority

virtual void TAO_Notify_Event::push ( Event_Forwarder::ProxyPushSupplier_ptr forwarder ACE_ENV_ARG_DECL ) const [pure virtual]

Push event to the Event_Forwarder interface.

virtual void TAO_Notify_Event::push ( Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder ACE_ENV_ARG_DECL ) const [pure virtual]

Push event to the Event_Forwarder interface.

virtual void TAO_Notify_Event::push ( TAO_Notify_Consumer *consumer ACE_ENV_ARG_DECL ) const [pure virtual]

Push event to consumer.

virtual void TAO_Notify_Event::push_no_filtering ( Event_Forwarder::ProxyPushSupplier_ptr forwarder ACE_ENV_ARG_DECL ) const [pure virtual]

Push event to the Event_Forwarder interface.

virtual void TAO_Notify_Event::push_no_filtering ( Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder ACE_ENV_ARG_DECL ) const [pure virtual]

Push event to the Event_Forwarder interface.

TAO_Notify_Event* TAO_Notify_Event::queueable_copy ( ACE_ENV_SINGLE_ARG_DECL ) const

Return a pointer to a copy of this event on the heap.

void TAO_Notify_Event::release ( void ) [private, virtual]

The release method is called when the refcount reaches 0.

Implements TAO_Notify_Refcountable.

const TAO_Notify_Property_Boolean& TAO_Notify_Event::reliable ( void ) const

Reliable.

const TAO_Notify_Property_Time& TAO_Notify_Event::timeout ( void ) const

Timeout.

void TAO_Notify_Event::translate ( const CosNotification::StructuredEvent & notification,

CORBA::Any & any

) [static]

Translate Structured to Any.

void TAO_Notify_Event::translate ( const CORBA::Any & any,

CosNotification::StructuredEvent & notification

) [static]

Translate Any to Structured.
