TAO_Object_Ref_Table Class Reference

Keep a table de-stringified object references registered with the ORB. More...

#include <Object_Ref_Table.h>

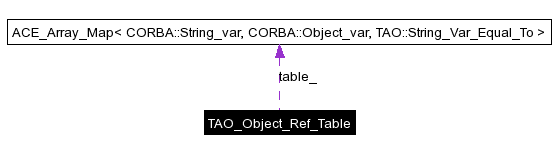

Collaboration diagram for TAO_Object_Ref_Table:

[legend]List of all members.

Public Types
typedef ACE_Array_Map< CORBA::String_var, CORBA::Object_var, TAO::String_Var_Equal_To >	Table
typedef Table::iterator	iterator
Public Member Functions
	TAO_Object_Ref_Table (void)
	Constructor.
int	register_initial_reference (const char *id, CORBA::Object_ptr obj)
CORBA::Object_ptr	resolve_initial_reference (const char *id)
void	destroy (void)
	Explicitly destroy the contents of the object reference table.
size_t	current_size (void) const
	Return the current size of the underlying table.
Forward Iterators
iterator	begin (void)
iterator	end (void)
Private Member Functions
	TAO_Object_Ref_Table (const TAO_Object_Ref_Table &)
	Prevent copying.
void	operator= (const TAO_Object_Ref_Table &)
The canonical ACE_Map methods
int	bind (const char *orb_id, CORBA::Object_ptr obj)
CORBA::Object_ptr	find (const char *orb_id)
int	unbind (const char *orb_id)
Private Attributes
Table	table_
	The implementation.
TAO_SYNCH_MUTEX	lock_
	Table synchronization lock.

---

Detailed Description

Keep a table de-stringified object references registered with the ORB.

The class is necessary to allow local objects to be accessible via the resolve_initial_references() mechanism. Since local object references cannot be stringified, they cannot be placed into the initial reference map that maps object key/name to stringified object reference. Hence, another table is needed.

Note:

The stringified reference table is still needed since it is sometimes necessary to delay de-stringification of an IOR until it is needed. For example, "corbaname" may return different results on each use.

---

Member Typedef Documentation

typedef Table::iterator TAO_Object_Ref_Table::iterator

typedef ACE_Array_Map<CORBA::String_var, CORBA::Object_var, TAO::String_Var_Equal_To> TAO_Object_Ref_Table::Table

---

Constructor & Destructor Documentation

ACE_INLINE TAO_Object_Ref_Table::TAO_Object_Ref_Table (  void   )

Constructor.

TAO_Object_Ref_Table::TAO_Object_Ref_Table (  const TAO_Object_Ref_Table &   )  [private]

Prevent copying.

---

Member Function Documentation

ACE_INLINE TAO_Object_Ref_Table::iterator TAO_Object_Ref_Table::begin (  void   )

int TAO_Object_Ref_Table::bind (  const char *  orb_id, CORBA::Object_ptr  obj )  [private]

ACE_INLINE size_t TAO_Object_Ref_Table::current_size (  void   )  const

Return the current size of the underlying table.

ACE_INLINE void TAO_Object_Ref_Table::destroy (  void   )

Explicitly destroy the contents of the object reference table.

ACE_INLINE TAO_Object_Ref_Table::iterator TAO_Object_Ref_Table::end (  void   )

CORBA::Object_ptr TAO_Object_Ref_Table::find (  const char *  orb_id  )  [private]

void TAO_Object_Ref_Table::operator= (  const TAO_Object_Ref_Table &   )  [private]

ACE_INLINE int TAO_Object_Ref_Table::register_initial_reference (  const char *  id, CORBA::Object_ptr  obj )

Register an object reference with the table, and map the given ID to it. Return values: 0  Success -1  Duplicate id

ACE_INLINE CORBA::Object_ptr TAO_Object_Ref_Table::resolve_initial_reference (  const char *  id  )

Return the object reference associated with the given ID. A duplicate is returned.

ACE_INLINE int TAO_Object_Ref_Table::unbind (  const char *  orb_id  )  [private]

---

Member Data Documentation

TAO_SYNCH_MUTEX TAO_Object_Ref_Table::lock_ [private]

Table synchronization lock.

Table TAO_Object_Ref_Table::table_ [private]

The implementation.

---

The documentation for this class was generated from the following files:

• Object_Ref_Table.h
• Object_Ref_Table.cpp
• Object_Ref_Table.inl

---
