TAO_FlowEndPoint Class Reference

This class is used per flow e.g video flow and an audio flow to encapsulate the transport details. More...

#include <AVStreams_i.h>

Inheritance diagram for TAO_FlowEndPoint:

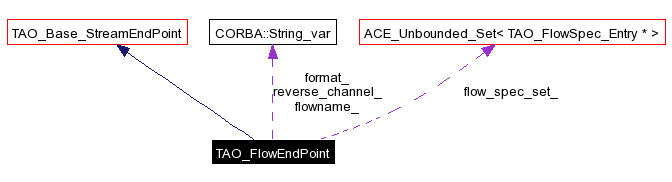

[legend]Collaboration diagram for TAO_FlowEndPoint:

[legend]List of all members.

Public Member Functions
	TAO_FlowEndPoint (void)
	default constructor.
	TAO_FlowEndPoint (const char *flowname, AVStreams::protocolSpec &protocols, const char *format)
int	open (const char *flowname, AVStreams::protocolSpec &protocols, const char *format)
int	set_flowname (const char *flowname)
virtual void	set_flow_handler (const char *flowname, TAO_AV_Flow_Handler *handler)
virtual int	set_protocol_object (const char *flowname, TAO_AV_Protocol_Object *object)
virtual CORBA::Boolean	lock (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	lock the flow endpoint for a particular flow.
virtual void	unlock (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	unlock the flow endpoint for subsequent use.
virtual void	destroy (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	destroy this flow.
virtual AVStreams::StreamEndPoint_ptr	related_sep (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual void	related_sep (AVStreams::StreamEndPoint_ptr related_sep ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual AVStreams::FlowConnection_ptr	related_flow_connection (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual void	related_flow_connection (AVStreams::FlowConnection_ptr related_flow_connection ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	set method for the related flow connection attribute.
virtual AVStreams::FlowEndPoint_ptr	get_connected_fep (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::notConnected, AVStreams::notSupported)
	returns the other flowendpoint to which this is connected.
virtual CORBA::Boolean	use_flow_protocol (const char *fp_name, const CORBA::Any &fp_settings ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::FPError, AVStreams::notSupported)
virtual void	set_format (const char *format ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::notSupported)
	sets the data format.
virtual void	set_dev_params (const CosPropertyService::Properties &new_settings ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::PropertyException, AVStreams::streamOpFailed)
	sets the device parameters.
virtual void	set_protocol_restriction (const AVStreams::protocolSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::notSupported)
	sets the list of protocols to be used.
virtual CORBA::Boolean	is_fep_compatible (AVStreams::FlowEndPoint_ptr fep ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::formatMismatch, AVStreams::deviceQosMismatch)
	checks whether the passed flowendpoint is compatible with this.
virtual CORBA::Boolean	set_peer (AVStreams::FlowConnection_ptr the_fc, AVStreams::FlowEndPoint_ptr the_peer_fep, AVStreams::QoS &the_qos ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::QoSRequestFailed, AVStreams::streamOpFailed)
	sets the peer flowendpoint.
virtual CORBA::Boolean	set_Mcast_peer (AVStreams::FlowConnection_ptr the_fc, AVStreams::MCastConfigIf_ptr a_mcastconfigif, AVStreams::QoS &the_qos ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::QoSRequestFailed)
	sets the multicast peer flowendpoint, not implemented.
virtual CORBA::Boolean	connect_to_peer (AVStreams::QoS &the_qos, const char *address, const char *use_flow_protocol ACE_ENV_ARG_DECL_WITH_DEFAULTS)=0 throw (CORBA::SystemException, AVStreams::failedToConnect, AVStreams::FPError, AVStreams::QoSRequestFailed)
virtual CORBA::Boolean	connect_to_peer_i (TAO_FlowSpec_Entry::Role role, AVStreams::QoS &the_qos, const char *address, const char *use_flow_protocol ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::failedToConnect, AVStreams::FPError, AVStreams::QoSRequestFailed)
	connect to the peer endpoint.
virtual char *	go_to_listen (AVStreams::QoS &the_qos, CORBA::Boolean is_mcast, AVStreams::FlowEndPoint_ptr peer, char *&flowProtocol ACE_ENV_ARG_DECL_WITH_DEFAULTS)=0 throw (CORBA::SystemException, AVStreams::failedToListen, AVStreams::FPError, AVStreams::QoSRequestFailed)
virtual char *	go_to_listen_i (TAO_FlowSpec_Entry::Role role, AVStreams::QoS &the_qos, CORBA::Boolean is_mcast, AVStreams::FlowEndPoint_ptr peer, char *&flowProtocol ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::failedToListen, AVStreams::FPError, AVStreams::QoSRequestFailed)
	listen request from the peer.
Protected Attributes
AVStreams::StreamEndPoint_var	related_sep_
	The related streamendpoint.
AVStreams::FlowConnection_var	related_flow_connection_
	The related flow connection reference.
AVStreams::FlowEndPoint_var	peer_fep_
	The peer flowendpoint reference.
AVStreams::protocolSpec	protocols_
	Available protocols for this flowendpoint.
AVStreams::protocolSpec	protocol_addresses_
	Address information for the protocols.
AVStreams::MCastConfigIf_var	mcast_peer_
	The multicast peer endpoint.
CORBA::Boolean	lock_
	Lock.
CORBA::String_var	format_
CORBA::String_var	flowname_
CosPropertyService::Properties	dev_params_
TAO_AV_FlowSpecSet	flow_spec_set_
CORBA::String_var	reverse_channel_

---

Detailed Description

This class is used per flow e.g video flow and an audio flow to encapsulate the transport details.

---

Constructor & Destructor Documentation

TAO_FlowEndPoint::TAO_FlowEndPoint (  void   )

default constructor.

TAO_FlowEndPoint::TAO_FlowEndPoint (  const char *  flowname, AVStreams::protocolSpec &  protocols, const char *  format )

---

Member Function Documentation

virtual CORBA::Boolean TAO_FlowEndPoint::connect_to_peer (  AVStreams::QoS &  the_qos, const char *  address, const char *use_flow_protocol  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, AVStreams::failedToConnect, AVStreams::FPError, AVStreams::QoSRequestFailed) [pure virtual]

This should be implemented in both the FlowProducer and consumer and hence is pure virtual since we need to know the role of the flowendpoint to create appropriate protocol objects. eg. in SFP to create Producer Object/ Consumer Object. Implemented in TAO_FlowProducer, and TAO_FlowConsumer.

CORBA::Boolean TAO_FlowEndPoint::connect_to_peer_i (  TAO_FlowSpec_Entry::Role  role, AVStreams::QoS &  the_qos, const char *  address, const char *use_flow_protocol  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, AVStreams::failedToConnect, AVStreams::FPError, AVStreams::QoSRequestFailed) [virtual]

connect to the peer endpoint.

virtual void TAO_FlowEndPoint::destroy (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  throw (CORBA::SystemException) [virtual]

destroy this flow.

virtual AVStreams::FlowEndPoint_ptr TAO_FlowEndPoint::get_connected_fep (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  throw (CORBA::SystemException, AVStreams::notConnected, AVStreams::notSupported) [virtual]

returns the other flowendpoint to which this is connected.

virtual char* TAO_FlowEndPoint::go_to_listen (  AVStreams::QoS &  the_qos, CORBA::Boolean  is_mcast, AVStreams::FlowEndPoint_ptr  peer, char *&flowProtocol  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, AVStreams::failedToListen, AVStreams::FPError, AVStreams::QoSRequestFailed) [pure virtual]

This should be implemented in both the FlowProducer and consumer and hence is pure virtual since we need to know the role of the flowendpoint to create appropriate protocol objects. eg. in SFP to create Producer Object/ Consumer Object. Implemented in TAO_FlowProducer, and TAO_FlowConsumer.

char * TAO_FlowEndPoint::go_to_listen_i (  TAO_FlowSpec_Entry::Role  role, AVStreams::QoS &  the_qos, CORBA::Boolean  is_mcast, AVStreams::FlowEndPoint_ptr  peer, char *&flowProtocol  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, AVStreams::failedToListen, AVStreams::FPError, AVStreams::QoSRequestFailed) [virtual]

listen request from the peer.

virtual CORBA::Boolean TAO_FlowEndPoint::is_fep_compatible (  AVStreams::FlowEndPoint_ptr fep  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException, AVStreams::formatMismatch, AVStreams::deviceQosMismatch) [virtual]

checks whether the passed flowendpoint is compatible with this.

virtual CORBA::Boolean TAO_FlowEndPoint::lock (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  throw (CORBA::SystemException) [virtual]

lock the flow endpoint for a particular flow.

int TAO_FlowEndPoint::open (  const char *  flowname, AVStreams::protocolSpec &  protocols, const char *  format )

void TAO_FlowEndPoint::related_flow_connection (  AVStreams::FlowConnection_ptr related_flow_connection  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException) [virtual]

set method for the related flow connection attribute.

virtual AVStreams::FlowConnection_ptr TAO_FlowEndPoint::related_flow_connection (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  throw (CORBA::SystemException) [virtual]

void TAO_FlowEndPoint::related_sep (  AVStreams::StreamEndPoint_ptr related_sep  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException) [virtual]

set method for the related streamendpoint under which this flowendpoint is.

virtual AVStreams::StreamEndPoint_ptr TAO_FlowEndPoint::related_sep (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  throw (CORBA::SystemException) [virtual]

get method for the related streamendpoint under which this flowendpoint is.

void TAO_FlowEndPoint::set_dev_params (  const CosPropertyService::Properties &new_settings  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException, AVStreams::PropertyException, AVStreams::streamOpFailed) [virtual]

sets the device parameters.

void TAO_FlowEndPoint::set_flow_handler (  const char *  flowname, TAO_AV_Flow_Handler *  handler )  [virtual]

Reimplemented from TAO_Base_StreamEndPoint.

int TAO_FlowEndPoint::set_flowname (  const char *  flowname  )

void TAO_FlowEndPoint::set_format (  const char *format  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException, AVStreams::notSupported) [virtual]

sets the data format.

virtual CORBA::Boolean TAO_FlowEndPoint::set_Mcast_peer (  AVStreams::FlowConnection_ptr  the_fc, AVStreams::MCastConfigIf_ptr  a_mcastconfigif, AVStreams::QoS &the_qos  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, AVStreams::QoSRequestFailed) [virtual]

sets the multicast peer flowendpoint, not implemented.

virtual CORBA::Boolean TAO_FlowEndPoint::set_peer (  AVStreams::FlowConnection_ptr  the_fc, AVStreams::FlowEndPoint_ptr  the_peer_fep, AVStreams::QoS &the_qos  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, AVStreams::QoSRequestFailed, AVStreams::streamOpFailed) [virtual]

sets the peer flowendpoint.

int TAO_FlowEndPoint::set_protocol_object (  const char *  flowname, TAO_AV_Protocol_Object *  object )  [virtual]

Reimplemented from TAO_Base_StreamEndPoint.

virtual void TAO_FlowEndPoint::set_protocol_restriction (  const AVStreams::protocolSpec &the_spec  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException, AVStreams::notSupported) [virtual]

sets the list of protocols to be used.

virtual void TAO_FlowEndPoint::unlock (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  throw (CORBA::SystemException) [virtual]

unlock the flow endpoint for subsequent use.

virtual CORBA::Boolean TAO_FlowEndPoint::use_flow_protocol (  const char *  fp_name, const CORBA::Any &fp_settings  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, AVStreams::FPError, AVStreams::notSupported) [virtual]

---

Member Data Documentation

CosPropertyService::Properties TAO_FlowEndPoint::dev_params_ [protected]

TAO_AV_FlowSpecSet TAO_FlowEndPoint::flow_spec_set_ [protected]

CORBA::String_var TAO_FlowEndPoint::flowname_ [protected]

CORBA::String_var TAO_FlowEndPoint::format_ [protected]

CORBA::Boolean TAO_FlowEndPoint::lock_ [protected]

Lock.

AVStreams::MCastConfigIf_var TAO_FlowEndPoint::mcast_peer_ [protected]

The multicast peer endpoint.

AVStreams::FlowEndPoint_var TAO_FlowEndPoint::peer_fep_ [protected]

The peer flowendpoint reference.

AVStreams::protocolSpec TAO_FlowEndPoint::protocol_addresses_ [protected]

Address information for the protocols.

AVStreams::protocolSpec TAO_FlowEndPoint::protocols_ [protected]

Available protocols for this flowendpoint.

AVStreams::FlowConnection_var TAO_FlowEndPoint::related_flow_connection_ [protected]

The related flow connection reference.

AVStreams::StreamEndPoint_var TAO_FlowEndPoint::related_sep_ [protected]

The related streamendpoint.

CORBA::String_var TAO_FlowEndPoint::reverse_channel_ [protected]

---

The documentation for this class was generated from the following files:

• AVStreams_i.h
• AVStreams_i.cpp

---
