ACE_SSL_Asynch_Stream Class Reference

This class is a factory for starting off asynchronous reads on a stream. This class forwards all methods to its implementation class. More...

#include <SSL_Asynch_Stream.h>

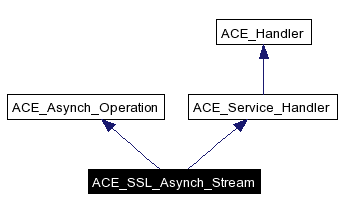

Inheritance diagram for ACE_SSL_Asynch_Stream:

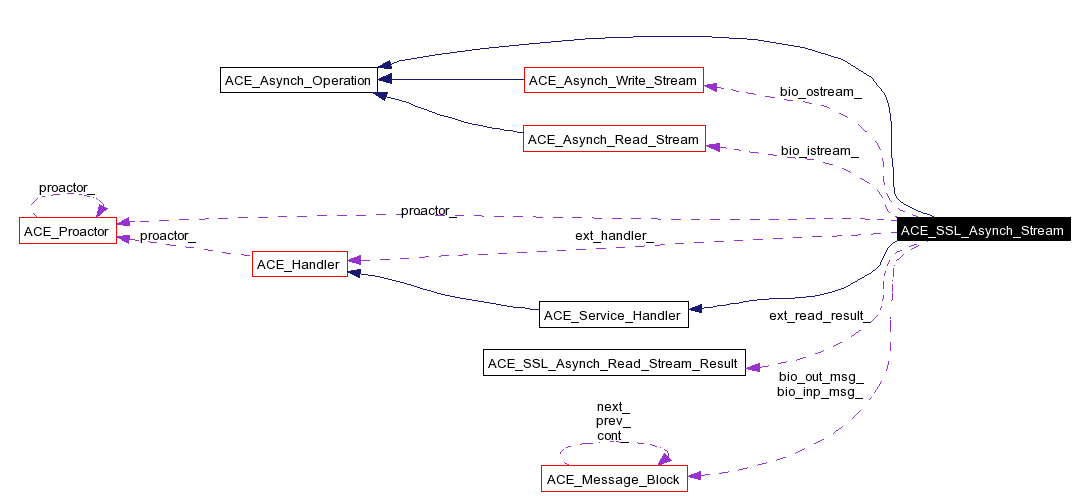

[legend]Collaboration diagram for ACE_SSL_Asynch_Stream:

[legend]List of all members.


Public Types
enum	Stream_Type { ST_CLIENT = 0x0001, ST_SERVER = 0x0002 }
Public Member Functions
	ACE_SSL_Asynch_Stream (Stream_Type s_type=ST_SERVER, ACE_SSL_Context *context=0)
	The constructor.
virtual	~ACE_SSL_Asynch_Stream (void)
	Destructor.
int	cancel (void)
int	close (void)
int	open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void completion_key=0, ACE_Proactor proactor=0)
void	open (ACE_HANDLE new_handle, ACE_Message_Block &message_block)
int	read (ACE_Message_Block &message_block, size_t num_bytes_to_read, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
int	write (ACE_Message_Block &message_block, size_t bytes_to_write, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
Protected Types
enum	Stream_Flag { SF_STREAM_OPEN = 0x0001, SF_REQ_SHUTDOWN = 0x0002, SF_SHUTDOWN_DONE = 0x0004, SF_CLOSE_NTF_SENT = 0x0008, SF_DELETE_ENABLE = 0x0010 }
	Stream state/flags. More...
enum	BIO_Flag { BF_EOS = 0x01, BF_AIO = 0x02 }
Protected Member Functions
virtual void	handle_write_stream (const ACE_Asynch_Write_Stream::Result &result)
	virtual from ACE_Service_Handler
virtual void	handle_read_stream (const ACE_Asynch_Read_Stream::Result &result)
virtual void	handle_wakeup (void)
void	print_error (int err_ssl, const ACE_TCHAR *pText)
int	pending_BIO_count (void)
int	notify_read (int bytes_transferred, int error)
int	notify_write (int bytes_transferred, int error)
int	notify_close (void)
SSL State Machine
int	do_SSL_state_machine (void)
int	do_SSL_handshake (void)
int	do_SSL_read (void)
int	do_SSL_write (void)
int	do_SSL_shutdown (void)
BIO Helpers
int	ssl_bio_read (char *buf, size_t len, int &errval)
int	ssl_bio_write (const char *buf, size_t len, int &errval)
Protected Attributes
Stream_Type	type_
	Stream Type ST_CLIENT/ST_SERVER.
ACE_HANDLE	handle_
	The real file/socket handle.
ACE_Proactor *	proactor_
	The proactor.
ACE_Handler *	ext_handler_
	External,i.e user handler.
ACE_SSL_Asynch_Read_Stream_Result *	ext_read_result_
	External, i.e. read result faked for user.
ACE_SSL_Asynch_Write_Stream_Result *	ext_write_result_
	External, i.e. write result faked for user.
int	flags_
SSL *	ssl_
	The SSL session.
BIO *	bio_
	The BIO implementation.
ACE_SYNCH_MUTEX	mutex_
	Mutex to protect work.
Internal stream, buffer and info for BIO read
ACE_Asynch_Read_Stream	bio_istream_
ACE_Message_Block	bio_inp_msg_
int	bio_inp_errno_
int	bio_inp_flag_
Internal stream, buffer and info for BIO write
ACE_Asynch_Write_Stream	bio_ostream_
ACE_Message_Block	bio_out_msg_
int	bio_out_errno_
int	bio_out_flag_
Friends
int	ACE_Asynch_BIO_read (BIO pBIO, char buf, int len)
int	ACE_Asynch_BIO_write (BIO pBIO, const char buf, int len)

Detailed Description

This class is a factory for starting off asynchronous reads on a stream. This class forwards all methods to its implementation class.

: Once open() is called, multiple asynchronous read()s can started using this class. An ACE_SSL_Asynch_Stream::Result will be passed back to the

Parameters:

handler

when the asynchronous reads completes through the ACE_Handler::handle_read_stream callback.

Member Enumeration Documentation

enum ACE_SSL_Asynch_Stream::BIO_Flag [protected]

The real streams which work under the ssl connection. BIO performs I/O via this streams
Enumeration values:

BF_EOS End of stream.

BF_AIO Real AIO in progress.

enum ACE_SSL_Asynch_Stream::Stream_Flag [protected]

Stream state/flags.

Enumeration values:

SF_STREAM_OPEN istream_ open OK

SF_REQ_SHUTDOWN request to SSL shutdown

SF_SHUTDOWN_DONE SSL shutdown finished.

SF_CLOSE_NTF_SENT Close notification sent.

SF_DELETE_ENABLE Stream can be safely destroyed.

enum ACE_SSL_Asynch_Stream::Stream_Type

Enumeration values:

ST_CLIENT

ST_SERVER

Constructor & Destructor Documentation

ACE_SSL_Asynch_Stream::ACE_SSL_Asynch_Stream ( Stream_Type s_type = ST_SERVER,

ACE_SSL_Context * context = 0

)

The constructor.

Parameters:

context Pointer to ACE_SSL_Context instance containing the OpenSSL SSL data structure to be associated with this ACE_SSL_SOCK_Stream. The SSL data structure will be copied to make it at least logically independent of the supplied context.

ACE_SSL_Asynch_Stream::~ACE_SSL_Asynch_Stream ( void ) [virtual]

Destructor.

Member Function Documentation

int ACE_SSL_Asynch_Stream::cancel ( void )

Reimplemented from ACE_Asynch_Operation.

int ACE_SSL_Asynch_Stream::close ( void )

int ACE_SSL_Asynch_Stream::do_SSL_handshake ( void ) [protected]

int ACE_SSL_Asynch_Stream::do_SSL_read ( void ) [protected]

int ACE_SSL_Asynch_Stream::do_SSL_shutdown ( void ) [protected]

int ACE_SSL_Asynch_Stream::do_SSL_state_machine ( void ) [protected]

int ACE_SSL_Asynch_Stream::do_SSL_write ( void ) [protected]

void ACE_SSL_Asynch_Stream::handle_read_stream ( const ACE_Asynch_Read_Stream::Result & result ) [protected, virtual]

This method is called when BIO read request is completed. It processes the IO completion and calls do_SSL_state_machine().
Reimplemented from ACE_Handler.

void ACE_SSL_Asynch_Stream::handle_wakeup ( void ) [protected, virtual]

This method is called when all SSL sessions are closed and no more pending AIOs exist. It also calls users handle_wakeup().
Reimplemented from ACE_Handler.

void ACE_SSL_Asynch_Stream::handle_write_stream ( const ACE_Asynch_Write_Stream::Result & result ) [protected, virtual]

virtual from ACE_Service_Handler
This method is called when BIO write request is completed. It processes the IO completion and calls do_SSL_state_machine().
Reimplemented from ACE_Handler.

int ACE_SSL_Asynch_Stream::notify_close ( void ) [protected]

This method is called to notify ourself that SSL session is shutdown and that there is no more I/O activity now and in the future.

int ACE_SSL_Asynch_Stream::notify_read ( int bytes_transferred,

int error

) [protected]

This method is called to notify user handler when user's read in done.

int ACE_SSL_Asynch_Stream::notify_write ( int bytes_transferred,

int error

) [protected]

This method is called to notify user handler when user's write in done.

void ACE_SSL_Asynch_Stream::open ( ACE_HANDLE new_handle,

ACE_Message_Block & message_block

) [virtual]

NOTE: This method has been specifically put in place so that compilers like the borland doesnt get confused between the above open () call with the one in the ACE_Service_Handler, from which this class is derived from..
Reimplemented from ACE_Service_Handler.

int ACE_SSL_Asynch_Stream::open ( ACE_Handler & handler,

ACE_HANDLE handle = ACE_INVALID_HANDLE,

const void * completion_key = 0,

ACE_Proactor * proactor = 0

)

Reimplemented from ACE_Asynch_Operation.

int ACE_SSL_Asynch_Stream::pending_BIO_count ( void ) [protected]

void ACE_SSL_Asynch_Stream::print_error ( int err_ssl,

const ACE_TCHAR * pText

) [protected]

int ACE_SSL_Asynch_Stream::read ( ACE_Message_Block & message_block,

size_t num_bytes_to_read,

const void * act = 0,

int priority = 0,

int signal_number = ACE_SIGRTMIN

)

int ACE_SSL_Asynch_Stream::ssl_bio_read ( char * buf,

size_t len,

int & errval

) [protected]

int ACE_SSL_Asynch_Stream::ssl_bio_write ( const char * buf,

size_t len,

int & errval

) [protected]

int ACE_SSL_Asynch_Stream::write ( ACE_Message_Block & message_block,

size_t bytes_to_write,

const void * act = 0,

int priority = 0,

int signal_number = ACE_SIGRTMIN

)

Friends And Related Function Documentation

int ACE_Asynch_BIO_read ( BIO * pBIO,

char * buf,

int len

) [friend]

int ACE_Asynch_BIO_write ( BIO * pBIO,

const char * buf,

int len

) [friend]

Member Data Documentation

BIO* ACE_SSL_Asynch_Stream::bio_ [protected]

The BIO implementation.

int ACE_SSL_Asynch_Stream::bio_inp_errno_ [protected]

int ACE_SSL_Asynch_Stream::bio_inp_flag_ [protected]

ACE_Message_Block ACE_SSL_Asynch_Stream::bio_inp_msg_ [protected]

ACE_Asynch_Read_Stream ACE_SSL_Asynch_Stream::bio_istream_ [protected]

ACE_Asynch_Write_Stream ACE_SSL_Asynch_Stream::bio_ostream_ [protected]

int ACE_SSL_Asynch_Stream::bio_out_errno_ [protected]

int ACE_SSL_Asynch_Stream::bio_out_flag_ [protected]

ACE_Message_Block ACE_SSL_Asynch_Stream::bio_out_msg_ [protected]

ACE_Handler* ACE_SSL_Asynch_Stream::ext_handler_ [protected]

External,i.e user handler.

ACE_SSL_Asynch_Read_Stream_Result* ACE_SSL_Asynch_Stream::ext_read_result_ [protected]

External, i.e. read result faked for user.

ACE_SSL_Asynch_Write_Stream_Result* ACE_SSL_Asynch_Stream::ext_write_result_ [protected]

External, i.e. write result faked for user.

int ACE_SSL_Asynch_Stream::flags_ [protected]

ACE_HANDLE ACE_SSL_Asynch_Stream::handle_ [protected]

The real file/socket handle.

Reimplemented from ACE_Handler.

ACE_SYNCH_MUTEX ACE_SSL_Asynch_Stream::mutex_ [protected]

Mutex to protect work.

ACE_Proactor* ACE_SSL_Asynch_Stream::proactor_ [protected]

The proactor.

Reimplemented from ACE_Handler.

SSL* ACE_SSL_Asynch_Stream::ssl_ [protected]

The SSL session.

Stream_Type ACE_SSL_Asynch_Stream::type_ [protected]

Stream Type ST_CLIENT/ST_SERVER.

The documentation for this class was generated from the following files:
