ACE_SOCK_Stream Class Reference

Defines the methods in the ACE_SOCK_Stream abstraction. More...

#include <SOCK_Stream.h>

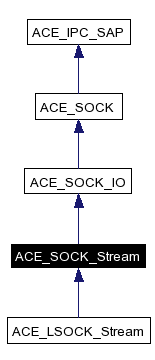

Inheritance diagram for ACE_SOCK_Stream:

[legend]Collaboration diagram for ACE_SOCK_Stream:

[legend]List of all members.


Public Types
typedef ACE_INET_Addr	PEER_ADDR
Public Member Functions
	ACE_SOCK_Stream (void)
	Constructor.
	ACE_SOCK_Stream (ACE_HANDLE h)
	Constructor (sets the underlying ACE_HANDLE with h).
	~ACE_SOCK_Stream (void)
	Destructor.
ssize_t	recv_n (void buf, size_t len, int flags, const ACE_Time_Value timeout=0, size_t *bytes_transferred=0) const
	Try to recv exactly len bytes into buf from the connected socket.
ssize_t	recv_n (void buf, size_t len, const ACE_Time_Value timeout=0, size_t *bytes_transferred=0) const
	Try to recv exactly len bytes into buf from the connected socket.
ssize_t	recvv_n (iovec iov[], int iovcnt, const ACE_Time_Value timeout=0, size_t bytes_transferred=0) const
	Receive an `iovec` of size iovcnt from the connected socket.
ssize_t	send_n (const void buf, size_t len, int flags, const ACE_Time_Value timeout=0, size_t *bytes_transferred=0) const
	Try to send exactly len bytes from buf>to the connection socket.
ssize_t	send_n (const void buf, size_t len, const ACE_Time_Value timeout=0, size_t *bytes_transferred=0) const
	Try to send exactly len bytes from buf to the connected socket.
ssize_t	send_n (const ACE_Message_Block message_block, const ACE_Time_Value timeout=0, size_t *bytes_transferred=0) const
ssize_t	sendv_n (const iovec iov[], int iovcnt, const ACE_Time_Value timeout=0, size_t bytes_transferred=0) const
	Send an `iovec` of size iovcnt to the connected socket.
ssize_t	send_urg (const void ptr, size_t len=sizeof(char), const ACE_Time_Value timeout=0) const
ssize_t	recv_urg (void ptr, size_t len=sizeof(char), const ACE_Time_Value timeout=0) const
int	close_reader (void)
	Close down the reader.
int	close_writer (void)
	Close down the writer.
int	close (void)
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Detailed Description

Defines the methods in the ACE_SOCK_Stream abstraction.

This adds additional wrapper methods atop the ACE_SOCK_IO class.

<buf> is the buffer to write from or receive into. <len> is the number of bytes to transfer. The <timeout> parameter in the following methods indicates how long to blocking trying to transfer data. If <timeout> == 0, then the call behaves as a normal send/recv call, i.e., for blocking sockets, the call will block until action is possible; for non-blocking sockets, EWOULDBLOCK will be returned if no action is immediately possible. If <timeout> != 0, the call will wait for data to arrive no longer than the relative time specified in *<timeout>. The "_n()" I/O methods keep looping until all the data has been transferred. These methods also work for sockets in non-blocking mode i.e., they keep looping on EWOULDBLOCK. <timeout> is used to make sure we keep making progress, i.e., the same timeout value is used for every I/O operation in the loop and the timeout is not counted down. The return values for the "*_n()" methods match the return values from the non "_n()" methods and are specified as follows:

On complete transfer, the number of bytes transferred is returned.
On timeout, -1 is returned, errno == ETIME.
On error, -1 is returned, errno is set to appropriate error.
On EOF, 0 is returned, errno is irrelevant.

On partial transfers, i.e., if any data is transferred before timeout/error/EOF, <bytes_transferred> will contain the number of bytes transferred. Methods with <iovec> parameter are I/O vector variants of the I/O operations. Methods with the extra <flags> argument will always result in <send> getting called. Methods without the extra <flags> argument will result in <send> getting called on Win32 platforms, and <write> getting called on non-Win32 platforms.

Member Typedef Documentation

typedef ACE_INET_Addr ACE_SOCK_Stream::PEER_ADDR

Reimplemented in ACE_LSOCK_Stream.

Constructor & Destructor Documentation

ACE_INLINE ACE_SOCK_Stream::ACE_SOCK_Stream ( void )

Constructor.

ACE_INLINE ACE_SOCK_Stream::ACE_SOCK_Stream ( ACE_HANDLE h )

Constructor (sets the underlying ACE_HANDLE with h).

ACE_INLINE ACE_SOCK_Stream::~ACE_SOCK_Stream ( void )

Destructor.

Member Function Documentation

int ACE_SOCK_Stream::close ( void )

Close down the socket (we need this to make things work correctly on Win32, which requires use to do a close_writer() before doing the close to avoid losing data).
Reimplemented from ACE_SOCK.

ACE_INLINE int ACE_SOCK_Stream::close_reader ( void )

Close down the reader.

ACE_INLINE int ACE_SOCK_Stream::close_writer ( void )

Close down the writer.

void ACE_SOCK_Stream::dump ( void ) const

Dump the state of an object.

Reimplemented from ACE_SOCK_IO.
Reimplemented in ACE_LSOCK_Stream.

ACE_INLINE ssize_t ACE_SOCK_Stream::recv_n ( void * buf,

size_t len,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Try to recv exactly len bytes into buf from the connected socket.

ACE_INLINE ssize_t ACE_SOCK_Stream::recv_n ( void * buf,

size_t len,

int flags,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Try to recv exactly len bytes into buf from the connected socket.

ACE_INLINE ssize_t ACE_SOCK_Stream::recv_urg ( void * ptr,

size_t len = sizeof(char),

const ACE_Time_Value * timeout = 0

) const

ACE_INLINE ssize_t ACE_SOCK_Stream::recvv_n ( iovec iov[],

int iovcnt,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Receive an iovec of size iovcnt from the connected socket.

ACE_INLINE ssize_t ACE_SOCK_Stream::send_n ( const ACE_Message_Block * message_block,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Send all the message_block's chained through their next and cont pointers. This call uses the underlying OS gather-write operation to reduce the domain-crossing penalty.

ACE_INLINE ssize_t ACE_SOCK_Stream::send_n ( const void * buf,

size_t len,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Try to send exactly len bytes from buf to the connected socket.

ACE_INLINE ssize_t ACE_SOCK_Stream::send_n ( const void * buf,

size_t len,

int flags,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Try to send exactly len bytes from buf>to the connection socket.

ACE_INLINE ssize_t ACE_SOCK_Stream::send_urg ( const void * ptr,

size_t len = sizeof(char),

const ACE_Time_Value * timeout = 0

) const

ACE_INLINE ssize_t ACE_SOCK_Stream::sendv_n ( const iovec iov[],

int iovcnt,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Send an iovec of size iovcnt to the connected socket.

Member Data Documentation

ACE_SOCK_Stream::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK_IO.
Reimplemented in ACE_LSOCK_Stream.

The documentation for this class was generated from the following files:

Generated on Wed Jun 8 23:56:32 2005 for ACE by

1.3.9.1
