TAO_UIPMC_Endpoint Class Reference

TAO_UIPMC_Endpoint. More...

#include <UIPMC_Endpoint.h>

Inheritance diagram for TAO_UIPMC_Endpoint:

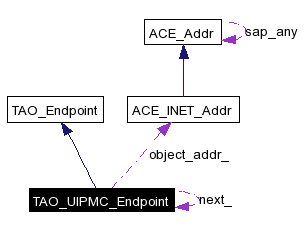

[legend]Collaboration diagram for TAO_UIPMC_Endpoint:

[legend]List of all members.

Public Member Functions
	TAO_UIPMC_Endpoint (void)
	Default constructor.
	TAO_UIPMC_Endpoint (const ACE_INET_Addr &addr)
	Constructor.
	TAO_UIPMC_Endpoint (const CORBA::Octet class_d_address[4], CORBA::UShort port)
	Constructor. Frank - deprecate this.
	~TAO_UIPMC_Endpoint (void)
	Destructor.
virtual TAO_Endpoint *	next (void)
virtual int	addr_to_string (char *buffer, size_t length)
virtual TAO_Endpoint *	duplicate (void)
	Makes a copy of <this>.
CORBA::Boolean	is_equivalent (const TAO_Endpoint *other_endpoint)
CORBA::ULong	hash (void)
	Return a hash value for this object.
const ACE_INET_Addr &	object_addr (void) const
	Return a reference to the <object_addr>.
void	object_addr (const ACE_INET_Addr &addr)
	Set the IP multicast address and port.
const char *	get_host_addr (void) const
CORBA::UShort	port (void) const
	Return the port number.
CORBA::UShort	port (CORBA::UShort p)
	Set the port number.
Private Member Functions
ACE_UINT32	uint_ip_addr (void) const
	Helper methods for getting and setting the IP address.
void	uint_ip_addr (ACE_UINT32 ip_addr)
void	update_object_addr (void)
	Helper method to update the cached object address.
Private Attributes
CORBA::Octet	class_d_address_ [4]
	IP Multicast address. Frank - deprecate this.
CORBA::UShort	port_
	UDP port number. Frank - deprecate this.
ACE_INET_Addr	object_addr_
TAO_UIPMC_Endpoint *	next_

---

Detailed Description

TAO_UIPMC_Endpoint.

UIPMC-specific implementation of PP Framework Endpoint interface.

---

Constructor & Destructor Documentation

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint (  void   )

Default constructor.

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint (  const ACE_INET_Addr &  addr  )

Constructor.

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint (  const CORBA::Octet  class_d_address[4], CORBA::UShort  port )

Constructor. Frank - deprecate this. @

TAO_UIPMC_Endpoint::~TAO_UIPMC_Endpoint (  void   )

Destructor.

---

Member Function Documentation

int TAO_UIPMC_Endpoint::addr_to_string (  char *  buffer, size_t  length )  [virtual]

Implements TAO_Endpoint.

TAO_Endpoint * TAO_UIPMC_Endpoint::duplicate (  void   )  [virtual]

Makes a copy of <this>. Implements TAO_Endpoint.

const char * TAO_UIPMC_Endpoint::get_host_addr (  void   )  const

Return a pointer to the stringified host address (not including the port). This class retains ownership of the address memory.

CORBA::ULong TAO_UIPMC_Endpoint::hash (  void   )  [virtual]

Return a hash value for this object. Implements TAO_Endpoint.

CORBA::Boolean TAO_UIPMC_Endpoint::is_equivalent (  const TAO_Endpoint *  other_endpoint  )  [virtual]

Return true if this endpoint is equivalent to <other_endpoint>. Two endpoints are equivalent iff their port and host are the same. Implements TAO_Endpoint.

TAO_Endpoint * TAO_UIPMC_Endpoint::next (  void   )  [virtual]

Implements TAO_Endpoint.

void TAO_UIPMC_Endpoint::object_addr (  const ACE_INET_Addr &  addr  )

Set the IP multicast address and port.

ACE_INLINE const ACE_INET_Addr & TAO_UIPMC_Endpoint::object_addr (  void   )  const

Return a reference to the <object_addr>.

ACE_INLINE CORBA::UShort TAO_UIPMC_Endpoint::port (  CORBA::UShort  p  )

Set the port number.

ACE_INLINE CORBA::UShort TAO_UIPMC_Endpoint::port (  void   )  const

Return the port number.

ACE_INLINE void TAO_UIPMC_Endpoint::uint_ip_addr (  ACE_UINT32  ip_addr  )  [private]

ACE_INLINE ACE_UINT32 TAO_UIPMC_Endpoint::uint_ip_addr (  void   )  const [private]

Helper methods for getting and setting the IP address.

ACE_INLINE void TAO_UIPMC_Endpoint::update_object_addr (  void   )  [private]

Helper method to update the cached object address.

---

Member Data Documentation

CORBA::Octet TAO_UIPMC_Endpoint::class_d_address_[4] [private]

IP Multicast address. Frank - deprecate this. @

TAO_UIPMC_Endpoint* TAO_UIPMC_Endpoint::next_ [private]

UIPMC Endpoints can be stringed into a list. Return the next endpoint in the list, if any.

ACE_INET_Addr TAO_UIPMC_Endpoint::object_addr_ [private]

Cached instance of <ace_inet_addr> for use in making invocations, etc.

CORBA::UShort TAO_UIPMC_Endpoint::port_ [private]

UDP port number. Frank - deprecate this. @

---

The documentation for this class was generated from the following files:

• UIPMC_Endpoint.h
• UIPMC_Endpoint.cpp
• UIPMC_Endpoint.i

---
