ACEXML_Debug_Element_Builder Class Reference

#include <parser/debug_validator/Debug_Element_Builder.h>

Inheritance diagram for ACEXML_Debug_Element_Builder:

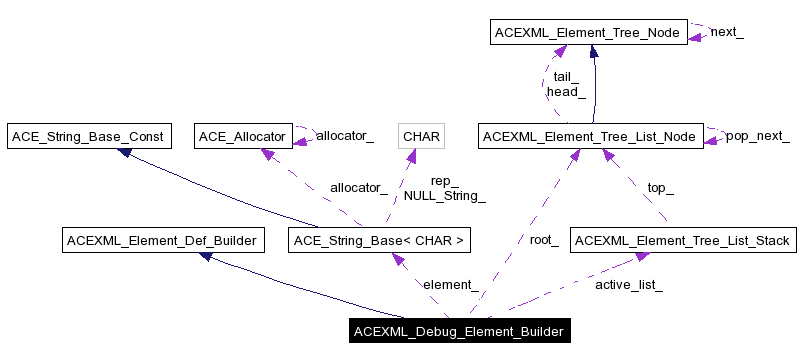

[legend]Collaboration diagram for ACEXML_Debug_Element_Builder:

[legend]List of all members.

Public Member Functions
	ACEXML_Debug_Element_Builder ()
virtual	~ACEXML_Debug_Element_Builder ()
virtual int	setElementName (const ACEXML_Char *namespaceURI, const ACEXML_Char *localName, const ACEXML_Char *qName ACEXML_ENV_ARG_DECL) ACE_THROW_SPEC((ACEXML_SAXException))
virtual int	setContentType (CONTENT_TYPE type ACEXML_ENV_ARG_DECL) ACE_THROW_SPEC((ACEXML_SAXException))
virtual int	insertMixedElement (const ACEXML_Char *namespaceURI, const ACEXML_Char *localName, const ACEXML_Char *qName ACEXML_ENV_ARG_DECL) ACE_THROW_SPEC((ACEXML_SAXException))
virtual int	startChildGroup ()
virtual int	endChildGroup (CARDINALITY card ACEXML_ENV_ARG_DECL)
virtual int	setChoice ()
virtual int	setSequence ()
virtual int	insertElement (const ACEXML_Char *namespaceURI, const ACEXML_Char *localName, const ACEXML_Char *qName ACEXML_ENV_ARG_DECL) ACE_THROW_SPEC((ACEXML_SAXException))
virtual void	dump (void)
Private Attributes
CONTENT_TYPE	type_
ACEXML_String	element_
ACEXML_Element_Tree_List_Node *	root_
ACEXML_Element_Tree_List_Stack	active_list_

---

Detailed Description

This class prints out the element definition for debugging purpose.

Todo:

This class is not namespace-aware.

---

Constructor & Destructor Documentation

ACEXML_Debug_Element_Builder::ACEXML_Debug_Element_Builder (   )

ACEXML_Debug_Element_Builder::~ACEXML_Debug_Element_Builder (   )  [virtual]

---

Member Function Documentation

void ACEXML_Debug_Element_Builder::dump (  void   )  [virtual]

Dump the content of the attribute definition. Implements ACEXML_Element_Def_Builder.

virtual int ACEXML_Debug_Element_Builder::endChildGroup (  CARDINALITY card  ACEXML_ENV_ARG_DECL  )  [virtual]

End a new group of children. Return values: 0  on success. Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::insertElement (  const ACEXML_Char *  namespaceURI, const ACEXML_Char *  localName, const ACEXML_Char *qName  ACEXML_ENV_ARG_DECL )  [virtual]

Insert an new element into the current child group. Return values: 0  on success, -1 otherwise. Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::insertMixedElement (  const ACEXML_Char *  namespaceURI, const ACEXML_Char *  localName, const ACEXML_Char *qName  ACEXML_ENV_ARG_DECL )  [virtual]

Insert one more element into Mixed definition. Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::setChoice (   )  [virtual]

Set the type of current child group to Choice. Return values: 0  on success, -1 if the type of the child group has already been set and this action conflicts with the previous setting. Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::setContentType (  CONTENT_TYPE type  ACEXML_ENV_ARG_DECL  )  [virtual]

Define the content type of the element. Return values: 0  if valid, -1 otherwise. Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::setElementName (  const ACEXML_Char *  namespaceURI, const ACEXML_Char *  localName, const ACEXML_Char *qName  ACEXML_ENV_ARG_DECL )  [virtual]

Define the name of the element. Return values: 0  if valid, -1 otherwise. Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::setSequence (   )  [virtual]

Set the type of current child group to Sequence. Return values: 0  on success, -1 if the type of the child group has already been set and this action conflicts with the previous setting. Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::startChildGroup (   )  [virtual]

Start a new group of children. Implements ACEXML_Element_Def_Builder.

---

Member Data Documentation

ACEXML_Element_Tree_List_Stack ACEXML_Debug_Element_Builder::active_list_ [private]

ACEXML_String ACEXML_Debug_Element_Builder::element_ [private]

ACEXML_Element_Tree_List_Node* ACEXML_Debug_Element_Builder::root_ [private]

CONTENT_TYPE ACEXML_Debug_Element_Builder::type_ [private]

---

The documentation for this class was generated from the following files:

• Debug_Element_Builder.h
• Debug_Element_Builder.cpp

---
