TAO_ECG_UDP_EH Class Reference

Event Handler for UDP messages. More...

#include <ECG_UDP_EH.h>

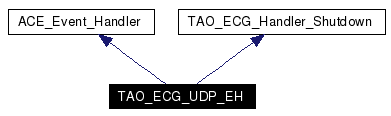

Inheritance diagram for TAO_ECG_UDP_EH:

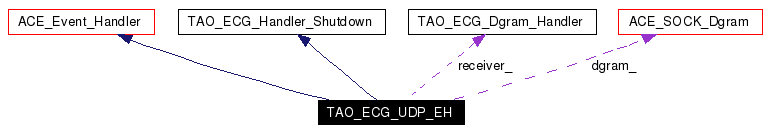

[legend]Collaboration diagram for TAO_ECG_UDP_EH:

[legend]List of all members.

Public Member Functions
virtual int	handle_input (ACE_HANDLE fd)
ACE_SOCK_Dgram &	dgram (void)
	TAO_ECG_UDP_EH (TAO_ECG_Dgram_Handler *recv)
virtual	~TAO_ECG_UDP_EH (void)
	Destructor.
int	open (const ACE_INET_Addr &ipaddr, int reuse_addr=0)
virtual int	shutdown (void)
Private Attributes
ACE_SOCK_Dgram	dgram_
	The datagram used to receive the data.
TAO_ECG_Dgram_Handler *	receiver_
	We callback to this object when a message arrives.

---

Detailed Description

Event Handler for UDP messages.

Listens for messages on a UDP socket. When there is a message, calls handle_input () on a specified TAO_ECG_Dgram_Handler to inform it about message arrival.

NOT THREAD-SAFE.

---

Constructor & Destructor Documentation

TAO_ECG_UDP_EH::TAO_ECG_UDP_EH (  TAO_ECG_Dgram_Handler *  recv  )

Constructor. Messages received by this EH will be forwarded to the <recv>.

TAO_ECG_UDP_EH::~TAO_ECG_UDP_EH (  void   )  [virtual]

Destructor.

---

Member Function Documentation

ACE_INLINE ACE_SOCK_Dgram & TAO_ECG_UDP_EH::dgram (  void   )

Obtain the dgram, this is one of those "controlled violations of type safety", allowing the user to setup options and gain access to low-level features.

int TAO_ECG_UDP_EH::handle_input (  ACE_HANDLE  fd  )  [virtual]

Main method - reactor callback. Notify <receiver_> that <dgram_> is ready for reading. Reimplemented from ACE_Event_Handler.

int TAO_ECG_UDP_EH::open (  const ACE_INET_Addr &  ipaddr, int  reuse_addr = 0 )

Open the datagram and register itself with this->reactor(). To insure proper resource clean up, if open () is successful, the user MUST call shutdown () when handler is no longer needed (and its reactor still exists).

int TAO_ECG_UDP_EH::shutdown (  void   )  [virtual]

TAO_ECG_Handler_Shutdown method. Unsubscribe from the reactor and close the datagram. Implements TAO_ECG_Handler_Shutdown.

---

Member Data Documentation

ACE_SOCK_Dgram TAO_ECG_UDP_EH::dgram_ [private]

The datagram used to receive the data.

TAO_ECG_Dgram_Handler* TAO_ECG_UDP_EH::receiver_ [private]

We callback to this object when a message arrives.

---

The documentation for this class was generated from the following files:

• ECG_UDP_EH.h
• ECG_UDP_EH.cpp
• ECG_UDP_EH.i

---
