Event_Service_Constants.h File Reference

#include "ace/Message_Block.h"
#include "orbsvcs/Time_Utilities.h"

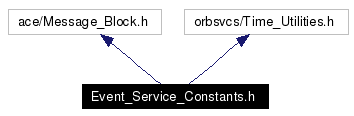

Include dependency graph for Event_Service_Constants.h:

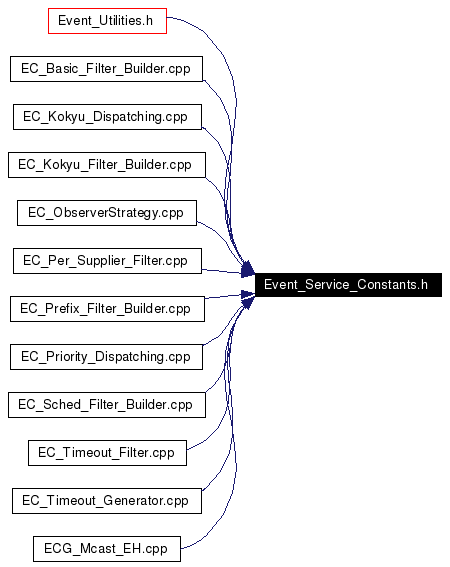

This graph shows which files directly or indirectly include this file:

Defines
#define	ACE_ES_DISPATCHING_MODULE   ACE_ES_Priority_Dispatching
Typedefs
typedef TAO_SYNCH_MUTEX	ACE_ES_MUTEX
typedef ACE_Guard< ACE_ES_MUTEX >	ACE_ES_GUARD
typedef TAO_SYNCH_RW_MUTEX	ACE_ES_RW_LOCK
typedef ACE_Write_Guard< ACE_ES_RW_LOCK >	ACE_ES_WGUARD
typedef ACE_Read_Guard< ACE_ES_RW_LOCK >	ACE_ES_RGUARD
Variables
const int	ACE_ES_MAX_SUBSCRIPTIONS = 32
	This is the number of events a consumer can subscribe to.
const int	ACE_ES_MAX_CONSUMERS_PER_SUPPLIER = 100
const long	ACE_ES_EVENT_ANY = 0
const long	ACE_ES_EVENT_SHUTDOWN = 1
const long	ACE_ES_EVENT_ACT = 2
const long	ACE_ES_EVENT_NOTIFICATION = 3
const long	ACE_ES_EVENT_TIMEOUT = 4
const long	ACE_ES_EVENT_INTERVAL_TIMEOUT = 5
const long	ACE_ES_EVENT_DEADLINE_TIMEOUT = 6
const long	ACE_ES_GLOBAL_DESIGNATOR = 7
const long	ACE_ES_CONJUNCTION_DESIGNATOR = 8
const long	ACE_ES_DISJUNCTION_DESIGNATOR = 9
const long	ACE_ES_NEGATION_DESIGNATOR = 10
const long	ACE_ES_LOGICAL_AND_DESIGNATOR = 11
const long	ACE_ES_BITMASK_DESIGNATOR = 12
const long	ACE_ES_MASKED_TYPE_DESIGNATOR = 13
const long	ACE_ES_NULL_DESIGNATOR = 14
const long	ACE_ES_EVENT_UNDEFINED = 16
const long	ACE_ES_EVENT_SOURCE_ANY = 0
const long	ACE_Scheduler_MAX_PRIORITIES = 5
const TimeBase::TimeT	ACE_Scheduler_Rates [ACE_Scheduler_MAX_PRIORITIES]
const long	ACE_Scheduler_MIN_PREEMPTION_PRIORITY
	The minimum preemption priority.
const long	ACE_Scheduler_MAX_PREEMPTION_PRIORITY = 0
	Max preemption priority.
const u_long	ACE_Scheduler_MAX_SUB_PRIORITY
	This is the maximum sub priority.
const u_long	ACE_Scheduler_MIN_SUB_PRIORITY
	This is the minimum sub priority.
const int	THREADS_PER_DISPATCH_QUEUE = 1
const int	ACE_ES_EVENT_CONTAINER_MEMORY_POOL = 1024
const int	ACE_ES_EVENT_MEMORY_POOL = 1024
const int	ACE_ES_DISPATCH_REQUEST_MEMORY_POOL = 1024

---

Detailed Description

Id

Event_Service_Constants.h,v 1.19 2004/08/16 23:53:12 jtc Exp

Keep constants required by both Event Service implementation and the Scheduling Service implementation.

Author:

Carlos O'Ryan (coryan@cs.wustl.edu)

---

Define Documentation

#define ACE_ES_DISPATCHING_MODULE   ACE_ES_Priority_Dispatching

ACE_ES_DISPATCHING_MODULE determines what Dispatching Module is used by the channel. ACE_ES_Dispatching_Base is a null dispatcher that can be used to build an EFD.

---

Typedef Documentation

typedef ACE_Guard<ACE_ES_MUTEX> ACE_ES_GUARD

typedef TAO_SYNCH_MUTEX ACE_ES_MUTEX

typedef ACE_Read_Guard<ACE_ES_RW_LOCK> ACE_ES_RGUARD

typedef TAO_SYNCH_RW_MUTEX ACE_ES_RW_LOCK

typedef ACE_Write_Guard<ACE_ES_RW_LOCK> ACE_ES_WGUARD

---

Variable Documentation

const long ACE_ES_BITMASK_DESIGNATOR = 12

const long ACE_ES_CONJUNCTION_DESIGNATOR = 8

const long ACE_ES_DISJUNCTION_DESIGNATOR = 9

const int ACE_ES_DISPATCH_REQUEST_MEMORY_POOL = 1024

const long ACE_ES_EVENT_ACT = 2

const long ACE_ES_EVENT_ANY = 0

const int ACE_ES_EVENT_CONTAINER_MEMORY_POOL = 1024

This is the chunk size of the cached allocator for ACE_ES_Event_Container.

const long ACE_ES_EVENT_DEADLINE_TIMEOUT = 6

const long ACE_ES_EVENT_INTERVAL_TIMEOUT = 5

const int ACE_ES_EVENT_MEMORY_POOL = 1024

const long ACE_ES_EVENT_NOTIFICATION = 3

const long ACE_ES_EVENT_SHUTDOWN = 1

const long ACE_ES_EVENT_SOURCE_ANY = 0

const long ACE_ES_EVENT_TIMEOUT = 4

const long ACE_ES_EVENT_UNDEFINED = 16

const long ACE_ES_GLOBAL_DESIGNATOR = 7

const long ACE_ES_LOGICAL_AND_DESIGNATOR = 11

const long ACE_ES_MASKED_TYPE_DESIGNATOR = 13

const int ACE_ES_MAX_CONSUMERS_PER_SUPPLIER = 100

Max number of consumers that one supplier can have subscribed to one type of event (including source-only). This restriction is very lightweight since subscription lists are dynamic. This constant is only used for ACE_ES_Simple_Set in Event_Channel.* for disconnecting consumers. Since these objects are allocated off the stack, we can increase this number without requiring more heap memory.

const int ACE_ES_MAX_SUBSCRIPTIONS = 32

This is the number of events a consumer can subscribe to.

const long ACE_ES_NEGATION_DESIGNATOR = 10

const long ACE_ES_NULL_DESIGNATOR = 14

const long ACE_Scheduler_MAX_PREEMPTION_PRIORITY = 0

Max preemption priority.

const long ACE_Scheduler_MAX_PRIORITIES = 5

The max number of priorities provided by the target platform. Todo: This should be defined in ACE (somehow) and only mapped here to some variables (and even that is doubtful).

const u_long ACE_Scheduler_MAX_SUB_PRIORITY

Initial value: ACE_Message_Block::MB_USER - 1 This is the maximum sub priority.

const long ACE_Scheduler_MIN_PREEMPTION_PRIORITY

Initial value: ACE_Scheduler_MAX_PRIORITIES - 1 The minimum preemption priority.

const u_long ACE_Scheduler_MIN_SUB_PRIORITY

Initial value: ACE_Message_Block::MB_NORMAL This is the minimum sub priority.

const TimeBase::TimeT ACE_Scheduler_Rates[ACE_Scheduler_MAX_PRIORITIES]

Initial value: { 250000, 500000, 1000000, 2000000, 10000000 }

const int THREADS_PER_DISPATCH_QUEUE = 1

This is the number of threads spawned for *each* priority queue in the channel's Dispatching Module. This is used by the channel when creating the dispatch module.

---
