TAO_Constraint_Visitor Class Reference

This is the base class for all visitors who wish to preform some operation from the state of the expression tree. Using double dispatching, subclasses of Constraint expression call back to the InterpreterVisitor subclass from the accept method. More...

#include <Constraint_Visitors.h>

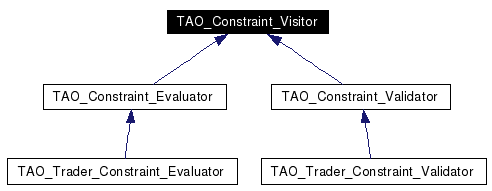

Inheritance diagram for TAO_Constraint_Visitor:

[legend]List of all members.

Public Member Functions
virtual	~TAO_Constraint_Visitor (void)
virtual int	visit_constraint (TAO_Unary_Constraint *constraint)=0
virtual int	visit_with (TAO_Unary_Constraint *unary_with)=0
virtual int	visit_min (TAO_Unary_Constraint *unary_min)=0
virtual int	visit_max (TAO_Unary_Constraint *unary_max)=0
virtual int	visit_first (TAO_Noop_Constraint *noop_first)=0
virtual int	visit_random (TAO_Noop_Constraint *noop_random)=0
virtual int	visit_and (TAO_Binary_Constraint *boolean_and)=0
virtual int	visit_or (TAO_Binary_Constraint *boolean_or)=0
virtual int	visit_not (TAO_Unary_Constraint *unary_not)=0
virtual int	visit_exist (TAO_Unary_Constraint *unary_exist)=0
virtual int	visit_unary_minus (TAO_Unary_Constraint *unary_minus)=0
virtual int	visit_add (TAO_Binary_Constraint *boolean_add)=0
virtual int	visit_sub (TAO_Binary_Constraint *boolean_sub)=0
virtual int	visit_mult (TAO_Binary_Constraint *boolean_mult)=0
virtual int	visit_div (TAO_Binary_Constraint *boolean_div)=0
virtual int	visit_twiddle (TAO_Binary_Constraint *binary_twiddle)=0
virtual int	visit_in (TAO_Binary_Constraint *binary_in)=0
virtual int	visit_less_than (TAO_Binary_Constraint *boolean_lt)=0
virtual int	visit_less_than_equal (TAO_Binary_Constraint *boolean_lte)=0
virtual int	visit_greater_than (TAO_Binary_Constraint *boolean_gt)=0
virtual int	visit_greater_than_equal (TAO_Binary_Constraint *boolean_gte)=0
virtual int	visit_equal (TAO_Binary_Constraint *boolean_eq)=0
virtual int	visit_not_equal (TAO_Binary_Constraint *boolean_neq)=0
virtual int	visit_literal (TAO_Literal_Constraint *literal)=0
virtual int	visit_property (TAO_Property_Constraint *literal)=0

---

Detailed Description

This is the base class for all visitors who wish to preform some operation from the state of the expression tree. Using double dispatching, subclasses of Constraint expression call back to the InterpreterVisitor subclass from the accept method.

Traversal of the expression tree uses the "Visitor" pattern. To "visit" a node, a client invokes the "accept" method on a subclass of ConstraintExpression, which, in turn, invokes the appropriate method on the visitor passed to it, based on its own type. So, the Constraint_Visitor has a method to deal with each possible type of node in an expression tree; one for each operator in the grammar.

---

Constructor & Destructor Documentation

virtual TAO_Constraint_Visitor::~TAO_Constraint_Visitor (  void   )  [inline, virtual]

---

Member Function Documentation

virtual int TAO_Constraint_Visitor::visit_add (  TAO_Binary_Constraint *  boolean_add  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_and (  TAO_Binary_Constraint *  boolean_and  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_constraint (  TAO_Unary_Constraint *  constraint  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_div (  TAO_Binary_Constraint *  boolean_div  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_equal (  TAO_Binary_Constraint *  boolean_eq  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_exist (  TAO_Unary_Constraint *  unary_exist  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_first (  TAO_Noop_Constraint *  noop_first  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_greater_than (  TAO_Binary_Constraint *  boolean_gt  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_greater_than_equal (  TAO_Binary_Constraint *  boolean_gte  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_in (  TAO_Binary_Constraint *  binary_in  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_less_than (  TAO_Binary_Constraint *  boolean_lt  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_less_than_equal (  TAO_Binary_Constraint *  boolean_lte  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_literal (  TAO_Literal_Constraint *  literal  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_max (  TAO_Unary_Constraint *  unary_max  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_min (  TAO_Unary_Constraint *  unary_min  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_mult (  TAO_Binary_Constraint *  boolean_mult  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_not (  TAO_Unary_Constraint *  unary_not  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_not_equal (  TAO_Binary_Constraint *  boolean_neq  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_or (  TAO_Binary_Constraint *  boolean_or  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_property (  TAO_Property_Constraint *  literal  )  [pure virtual]

Implemented in TAO_Constraint_Validator, TAO_Constraint_Evaluator, and TAO_Trader_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_random (  TAO_Noop_Constraint *  noop_random  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_sub (  TAO_Binary_Constraint *  boolean_sub  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_twiddle (  TAO_Binary_Constraint *  binary_twiddle  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_unary_minus (  TAO_Unary_Constraint *  unary_minus  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

virtual int TAO_Constraint_Visitor::visit_with (  TAO_Unary_Constraint *  unary_with  )  [pure virtual]

Implemented in TAO_Constraint_Validator, and TAO_Constraint_Evaluator.

---

The documentation for this class was generated from the following file:

• Constraint_Visitors.h

---
