ACE_RMCast_UDP_Proxy Class Reference

Define the proxy implementation for UDP based communication. More...

#include <RMCast_UDP_Proxy.h>

Inheritance diagram for ACE_RMCast_UDP_Proxy:

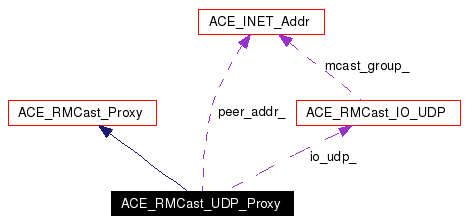

[legend]Collaboration diagram for ACE_RMCast_UDP_Proxy:

[legend]List of all members.

Public Member Functions
	ACE_RMCast_UDP_Proxy (ACE_RMCast_IO_UDP *io_udp, const ACE_INET_Addr &peer_addr)
	Constructor.
virtual	~ACE_RMCast_UDP_Proxy (void)
	Destructor.
int	receive_message (char *buffer, size_t size)
const ACE_INET_Addr &	peer_addr (void) const
	Make the peer address available.
virtual int	reply_data (ACE_RMCast::Data &)
	Send messages directly to the peer.
virtual int	reply_poll (ACE_RMCast::Poll &)
	Send messages directly to the peer.
virtual int	reply_ack_join (ACE_RMCast::Ack_Join &)
	Send messages directly to the peer.
virtual int	reply_ack_leave (ACE_RMCast::Ack_Leave &)
	Send messages directly to the peer.
virtual int	reply_ack (ACE_RMCast::Ack &)
	Send messages directly to the peer.
virtual int	reply_join (ACE_RMCast::Join &)
	Send messages directly to the peer.
virtual int	reply_leave (ACE_RMCast::Leave &)
	Send messages directly to the peer.
Private Attributes
ACE_RMCast_IO_UDP *	io_udp_
	The IO facade.
ACE_INET_Addr	peer_addr_
	The remote peer's address.

---

Detailed Description

Define the proxy implementation for UDP based communication.

Proxy objects are transport specific, they are responsible for storing the remote peer addressing information. This class implements the UDP version of a proxy.

---

Constructor & Destructor Documentation

ACE_RMCast_UDP_Proxy::ACE_RMCast_UDP_Proxy (  ACE_RMCast_IO_UDP *  io_udp, const ACE_INET_Addr &  peer_addr )

Constructor. The Parameters: io_udp  argument is kept to send the replys through the right socket. The peer_addr  is the address used byu the peer to receive responses.

ACE_RMCast_UDP_Proxy::~ACE_RMCast_UDP_Proxy (  void   )  [virtual]

Destructor.

---

Member Function Documentation

ACE_INLINE const ACE_INET_Addr & ACE_RMCast_UDP_Proxy::peer_addr (  void   )  const

Make the peer address available.

int ACE_RMCast_UDP_Proxy::receive_message (  char *  buffer, size_t  size )

Receive a message, parse and send it upstream in the right format.

int ACE_RMCast_UDP_Proxy::reply_ack (  ACE_RMCast::Ack &   )  [virtual]

Send messages directly to the peer. Send a message directly to the peer, i.e. the message is not sent through the multicast group and it may not be processed by all the layers in the stack. Implements ACE_RMCast_Proxy.

int ACE_RMCast_UDP_Proxy::reply_ack_join (  ACE_RMCast::Ack_Join &   )  [virtual]

Send messages directly to the peer. Send a message directly to the peer, i.e. the message is not sent through the multicast group and it may not be processed by all the layers in the stack. Reimplemented from ACE_RMCast_Proxy.

int ACE_RMCast_UDP_Proxy::reply_ack_leave (  ACE_RMCast::Ack_Leave &   )  [virtual]

Send messages directly to the peer. Send a message directly to the peer, i.e. the message is not sent through the multicast group and it may not be processed by all the layers in the stack. Implements ACE_RMCast_Proxy.

int ACE_RMCast_UDP_Proxy::reply_data (  ACE_RMCast::Data &   )  [virtual]

Send messages directly to the peer. Send a message directly to the peer, i.e. the message is not sent through the multicast group and it may not be processed by all the layers in the stack. Implements ACE_RMCast_Proxy.

int ACE_RMCast_UDP_Proxy::reply_join (  ACE_RMCast::Join &   )  [virtual]

Send messages directly to the peer. Send a message directly to the peer, i.e. the message is not sent through the multicast group and it may not be processed by all the layers in the stack. Implements ACE_RMCast_Proxy.

int ACE_RMCast_UDP_Proxy::reply_leave (  ACE_RMCast::Leave &   )  [virtual]

Send messages directly to the peer. Send a message directly to the peer, i.e. the message is not sent through the multicast group and it may not be processed by all the layers in the stack. Implements ACE_RMCast_Proxy.

int ACE_RMCast_UDP_Proxy::reply_poll (  ACE_RMCast::Poll &   )  [virtual]

Send messages directly to the peer. Send a message directly to the peer, i.e. the message is not sent through the multicast group and it may not be processed by all the layers in the stack. Implements ACE_RMCast_Proxy.

---

Member Data Documentation

ACE_RMCast_IO_UDP* ACE_RMCast_UDP_Proxy::io_udp_ [private]

The IO facade.

ACE_INET_Addr ACE_RMCast_UDP_Proxy::peer_addr_ [private]

The remote peer's address.

---

The documentation for this class was generated from the following files:

• RMCast_UDP_Proxy.h
• RMCast_UDP_Proxy.cpp
• RMCast_UDP_Proxy.i

---
