TAO_DIOP_Connector Class Reference

DIOP-specific Connector bridge for pluggable protocols. More...

#include <DIOP_Connector.h>

Inheritance diagram for TAO_DIOP_Connector:

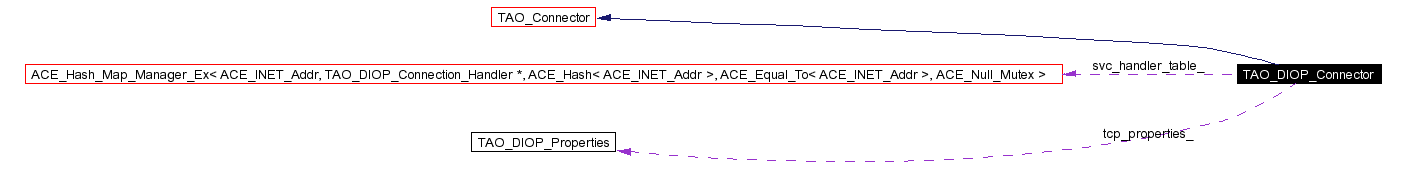

[legend]Collaboration diagram for TAO_DIOP_Connector:

[legend]List of all members.

Public Methods
	TAO_DIOP_Connector (CORBA::Boolean flag=0)
	Constructor.
	~TAO_DIOP_Connector (void)
	Destructor.
The TAO_Connector Methods
Please check the documentation in Transport_Connector.h for details.
int	open (TAO_ORB_Core *orb_core)
int	close (void)
TAO_Profile *	create_profile (TAO_InputCDR &cdr)
virtual int	check_prefix (const char *endpoint)
virtual char	object_key_delimiter (void) const
Protected Methods
int	init_tcp_properties (void)
More TAO_Connector Methods
Please check the documentation in Transport_Connector.h for details.
int	set_validate_endpoint (TAO_Endpoint *ep)
TAO_Transport *	make_connection (TAO::Profile_Transport_Resolver *r, TAO_Transport_Descriptor_Interface &desc, ACE_Time_Value *timeout=0)
virtual TAO_Profile *	make_profile (ACE_ENV_SINGLE_ARG_DECL)
Protected Attributes
TAO_DIOP_Properties	tcp_properties_
CORBA::Boolean	lite_flag_
	Do we need to use a GIOP_Lite for sending messages?
Private Types
typedef ACE_Hash_Map_Iterator_Ex< ACE_INET_Addr, TAO_DIOP_Connection_Handler *, ACE_Hash< ACE_INET_Addr >, ACE_Equal_To< ACE_INET_Addr >, ACE_Null_Mutex >	SvcHandlerIterator
Private Methods
TAO_DIOP_Endpoint *	remote_endpoint (TAO_Endpoint *ep)
	Return the remote endpoint, a helper function.
Private Attributes
ACE_Hash_Map_Manager_Ex< ACE_INET_Addr, TAO_DIOP_Connection_Handler *, ACE_Hash< ACE_INET_Addr >, ACE_Equal_To< ACE_INET_Addr >, ACE_Null_Mutex >	svc_handler_table_

---

Detailed Description

DIOP-specific Connector bridge for pluggable protocols.

Concrete instance of the TAO_Connector class. Responsible for establishing a connection with a server and is called from the Connector_Registory.

---

Member Typedef Documentation

typedef ACE_Hash_Map_Iterator_Ex< ACE_INET_Addr, TAO_DIOP_Connection_Handler *, ACE_Hash < ACE_INET_Addr >, ACE_Equal_To < ACE_INET_Addr >, ACE_Null_Mutex > TAO_DIOP_Connector::SvcHandlerIterator [private]

---

Constructor & Destructor Documentation

TAO_DIOP_Connector::TAO_DIOP_Connector (  CORBA::Boolean    flag = 0 )

Constructor.

TAO_DIOP_Connector::~TAO_DIOP_Connector (  void    )

Destructor.

---

Member Function Documentation

int TAO_DIOP_Connector::check_prefix (  const char *    endpoint )  [virtual]

Implements TAO_Connector.

int TAO_DIOP_Connector::close (  void    )  [virtual]

Implements TAO_Connector.

TAO_Profile * TAO_DIOP_Connector::create_profile (  TAO_InputCDR &    cdr )  [virtual]

Implements TAO_Connector.

int TAO_DIOP_Connector::init_tcp_properties (  void    )  [protected]

Obtain tcp properties that must be used by this connector, i.e., initialize <tcp_properties_>.

TAO_Transport * TAO_DIOP_Connector::make_connection (  TAO::Profile_Transport_Resolver *    r, TAO_Transport_Descriptor_Interface &    desc, ACE_Time_Value *    timeout = 0 )  [protected, virtual]

Implements TAO_Connector.

TAO_Profile * TAO_DIOP_Connector::make_profile (  ACE_ENV_SINGLE_ARG_DECL    )  [protected, virtual]

Implements TAO_Connector.

char TAO_DIOP_Connector::object_key_delimiter (  void    )  const [virtual]

Implements TAO_Connector.

int TAO_DIOP_Connector::open (  TAO_ORB_Core *    orb_core )  [virtual]

Implements TAO_Connector.

TAO_DIOP_Endpoint * TAO_DIOP_Connector::remote_endpoint (  TAO_Endpoint *    ep )  [private]

Return the remote endpoint, a helper function.

int TAO_DIOP_Connector::set_validate_endpoint (  TAO_Endpoint *    ep )  [protected, virtual]

Implements TAO_Connector.

---

Member Data Documentation

CORBA::Boolean TAO_DIOP_Connector::lite_flag_ [protected]

Do we need to use a GIOP_Lite for sending messages?

ACE_Hash_Map_Manager_Ex< ACE_INET_Addr, TAO_DIOP_Connection_Handler *, ACE_Hash < ACE_INET_Addr >, ACE_Equal_To < ACE_INET_Addr >, ACE_Null_Mutex > TAO_DIOP_Connector::svc_handler_table_ [private]

TAO_DIOP_Properties TAO_DIOP_Connector::tcp_properties_ [protected]

TCP configuration properties to be used for all connections established by this connector.

---

The documentation for this class was generated from the following files:

• DIOP_Connector.h
• DIOP_Connector.cpp

---
