TAO_PrincipalAuthenticator Class Reference

Implementation of the SecurityLevel2::PrincipalAuthenticator interface. More...

#include <PrincipalAuthenticator.h>

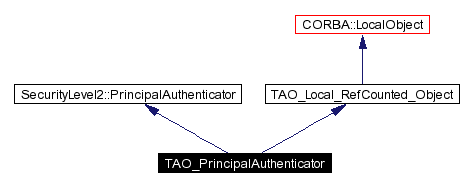

Inheritance diagram for TAO_PrincipalAuthenticator:

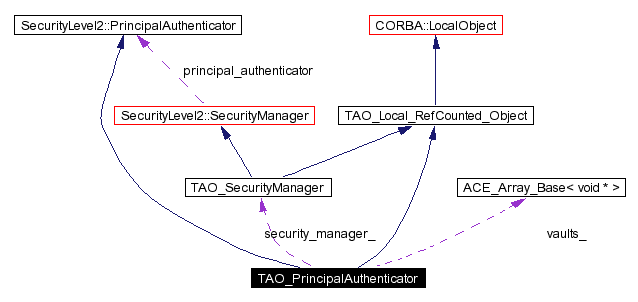

[legend]Collaboration diagram for TAO_PrincipalAuthenticator:

[legend]List of all members.

Downcast Related Methods
Methods used for downcasting and manipulating the reference count of this interface.
typedef TAO_PrincipalAuthenticator_ptr	_ptr_type
typedef TAO_PrincipalAuthenticator_var	_var_type
virtual const char *	_interface_repository_id (void) const
TAO_PrincipalAuthenticator_ptr	_duplicate (TAO_PrincipalAuthenticator_ptr obj)
TAO_PrincipalAuthenticator_ptr	_narrow (CORBA::Object_ptr obj ACE_ENV_ARG_DECL_WITH_DEFAULTS)
TAO_PrincipalAuthenticator_ptr	_nil (void)
Public Methods
	TAO_PrincipalAuthenticator (TAO_SecurityManager *manager)
	Constructor.
void	register_vault (SecurityReplaceable::Vault_ptr vault ACE_ENV_ARG_DECL_WITH_DEFAULTS)
SecurityLevel2::PrincipalAuthenticator Methods
Methods exposed by the SecurityLevel2::PrincipalAuthenticator interface.
virtual Security::AuthenticationMethodList *	get_supported_authen_methods (const char *mechanism ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual Security::AuthenticationStatus	authenticate (Security::AuthenticationMethod method, const char *mechanism, const char *security_name, const CORBA::Any &auth_data, const Security::AttributeList &privileges, SecurityLevel2::Credentials_out creds, CORBA::Any_out continuation_data, CORBA::Any_out auth_specific_data ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual Security::AuthenticationStatus	continue_authentication (const CORBA::Any &response_data, SecurityLevel2::Credentials_ptr creds, CORBA::Any_out continuation_data, CORBA::Any_out auth_specific_data ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	Continue partially completed authentication process.
Protected Methods
	~TAO_PrincipalAuthenticator (void)
	Destructor.
Private Attributes
ACE_Array_Base< void * >	vaults_
	Array of registered security mechanism-specific Vaults.
TAO_SecurityManager *	security_manager_

---

Detailed Description

Implementation of the SecurityLevel2::PrincipalAuthenticator interface.

This class implements the chain-of-responsibility design pattern to decide which security mechanism

---

Member Typedef Documentation

typedef TAO_PrincipalAuthenticator_ptr TAO_PrincipalAuthenticator::_ptr_type

Reimplemented from CORBA::LocalObject.

typedef TAO_PrincipalAuthenticator_var TAO_PrincipalAuthenticator::_var_type

Reimplemented from CORBA::LocalObject.

---

Constructor & Destructor Documentation

TAO_PrincipalAuthenticator::TAO_PrincipalAuthenticator (  TAO_SecurityManager *    manager )

Constructor.

TAO_PrincipalAuthenticator::~TAO_PrincipalAuthenticator (  void    )  [protected]

Destructor. Protected destructor to enforce the fact this class is reference counted, and should not be destroyed using delete() by anything other than the reference counting mechanism.

---

Member Function Documentation

TAO_PrincipalAuthenticator_ptr TAO_PrincipalAuthenticator::_duplicate (  TAO_PrincipalAuthenticator_ptr    obj )  [static]

const char * TAO_PrincipalAuthenticator::_interface_repository_id (  void    )  const [virtual]

Reimplemented from CORBA::Object.

TAO_PrincipalAuthenticator_ptr TAO_PrincipalAuthenticator::_narrow (  CORBA::Object_ptr obj    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  [static]

Reimplemented from CORBA::LocalObject.

TAO_PrincipalAuthenticator_ptr TAO_PrincipalAuthenticator::_nil (  void    )  [inline, static]

Reimplemented from CORBA::LocalObject.

Security::AuthenticationStatus TAO_PrincipalAuthenticator::authenticate (  Security::AuthenticationMethod    method, const char *    mechanism, const char *    security_name, const CORBA::Any &    auth_data, const Security::AttributeList &    privileges, SecurityLevel2::Credentials_out    creds, CORBA::Any_out    continuation_data, CORBA::Any_out auth_specific_data    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

Created Credentials will be placed in the SecurityManager object's own_credentials list. If authenticate() returns with a Security::SecAuthContinue, e.g. due to an inability to complete authentication in a single operation, then authentication must completed using the continue_authentication() method.

Security::AuthenticationStatus TAO_PrincipalAuthenticator::continue_authentication (  const CORBA::Any &    response_data, SecurityLevel2::Credentials_ptr    creds, CORBA::Any_out    continuation_data, CORBA::Any_out auth_specific_data    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

Continue partially completed authentication process.

virtual Security::AuthenticationMethodList* TAO_PrincipalAuthenticator::get_supported_authen_methods (  const char *mechanism    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

Return the authentication methods supported by the given mechanism.

void TAO_PrincipalAuthenticator::register_vault (  SecurityReplaceable::Vault_ptr vault    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Note: This is a TAO-specific extension.

---

Member Data Documentation

TAO_SecurityManager* TAO_PrincipalAuthenticator::security_manager_ [private]

Pointer to the SecurityManager that "owns" this PrincipalAuthenticator.

ACE_Array_Base<void *> TAO_PrincipalAuthenticator::vaults_ [private]

Array of registered security mechanism-specific Vaults.

---

The documentation for this class was generated from the following files:

• PrincipalAuthenticator.h
• PrincipalAuthenticator.cpp

---
