TAO_ECG_Reactive_ConsumerEC_Control Class Reference

Consumer event channel control. More...

#include <ECG_Reactive_ConsumerEC_Control.h>

Inheritance diagram for TAO_ECG_Reactive_ConsumerEC_Control:

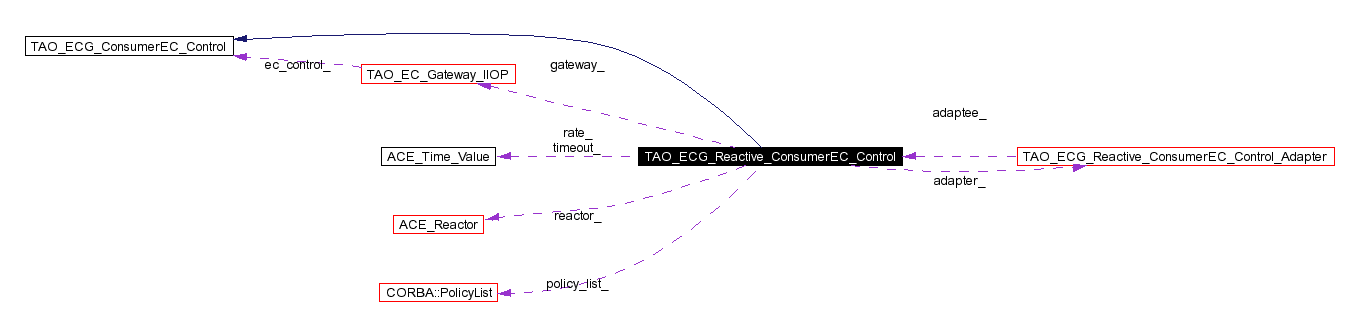

[legend]Collaboration diagram for TAO_ECG_Reactive_ConsumerEC_Control:

[legend]List of all members.

Public Methods
	TAO_ECG_Reactive_ConsumerEC_Control (const ACE_Time_Value &rate, const ACE_Time_Value &timeout, TAO_EC_Gateway_IIOP *gateway, CORBA::ORB_ptr orb)
virtual	~TAO_ECG_Reactive_ConsumerEC_Control (void)
	Destructor.
void	handle_timeout (const ACE_Time_Value &tv, const void *arg)
	Receive the timeout from the adapter.
virtual int	activate (void)
virtual int	shutdown (void)
virtual void	event_channel_not_exist (TAO_EC_Gateway_IIOP *gateway ACE_ENV_ARG_DECL_NOT_USED)
virtual void	system_exception (TAO_EC_Gateway_IIOP *gateway, CORBA::SystemException &ACE_ENV_ARG_DECL_NOT_USED)
Private Methods
void	query_eventchannel (ACE_ENV_SINGLE_ARG_DECL)
Private Attributes
ACE_Time_Value	rate_
	The polling rate.
ACE_Time_Value	timeout_
	The polling timeout.
TAO_ECG_Reactive_ConsumerEC_Control_Adapter	adapter_
	The Adapter for the reactor events.
TAO_EC_Gateway_IIOP *	gateway_
	The gateway.
CORBA::ORB_var	orb_
	The ORB.
CORBA::PolicyCurrent_var	policy_current_
	To control the timeout policy in the thread.
CORBA::PolicyList	policy_list_
	Precomputed policy list to the set timeout.
ACE_Reactor *	reactor_
	The ORB reactor.

---

Detailed Description

Consumer event channel control.

Defines the interface for the consumer event channel control strategy. This strategy handles misbehaving or failing consumer event channels.

---

Constructor & Destructor Documentation

TAO_ECG_Reactive_ConsumerEC_Control::TAO_ECG_Reactive_ConsumerEC_Control (  const ACE_Time_Value &    rate, const ACE_Time_Value &    timeout, TAO_EC_Gateway_IIOP *    gateway, CORBA::ORB_ptr    orb )

Constructor. It does not assume ownership of the event_channel parameter.

TAO_ECG_Reactive_ConsumerEC_Control::~TAO_ECG_Reactive_ConsumerEC_Control (  void    )  [virtual]

Destructor.

---

Member Function Documentation

int TAO_ECG_Reactive_ConsumerEC_Control::activate (  void    )  [virtual]

Activate any internal threads or timers used to poll the state of the event channel. Reimplemented from TAO_ECG_ConsumerEC_Control.

void TAO_ECG_Reactive_ConsumerEC_Control::event_channel_not_exist (  TAO_EC_Gateway_IIOP *gateway    ACE_ENV_ARG_DECL_NOT_USED )  [virtual]

When pushing an event to the event channel a CORBA::OBJECT_NOT_EXIST exception was raised. The only interpretation is that the object has been destroyed. The strategy has to (at the very least), reclaim all the resources attached to that object. Reimplemented from TAO_ECG_ConsumerEC_Control.

void TAO_ECG_Reactive_ConsumerEC_Control::handle_timeout (  const ACE_Time_Value &    tv, const void *    arg )

Receive the timeout from the adapter.

void TAO_ECG_Reactive_ConsumerEC_Control::query_eventchannel (  ACE_ENV_SINGLE_ARG_DECL    )  [private]

Check if the consumers still exists. It is a helper method for handle_timeout() to isolate the exceptions.

int TAO_ECG_Reactive_ConsumerEC_Control::shutdown (  void    )  [virtual]

Shutdown any internal threads or timers used to poll the state of the event channel. Reimplemented from TAO_ECG_ConsumerEC_Control.

void TAO_ECG_Reactive_ConsumerEC_Control::system_exception (  TAO_EC_Gateway_IIOP *    gateway, CORBA::SystemException &    ACE_ENV_ARG_DECL_NOT_USED )  [virtual]

Some system exception was raised while trying to contact the event channel Reimplemented from TAO_ECG_ConsumerEC_Control.

---

Member Data Documentation

TAO_ECG_Reactive_ConsumerEC_Control_Adapter TAO_ECG_Reactive_ConsumerEC_Control::adapter_ [private]

The Adapter for the reactor events.

TAO_EC_Gateway_IIOP* TAO_ECG_Reactive_ConsumerEC_Control::gateway_ [private]

The gateway.

CORBA::ORB_var TAO_ECG_Reactive_ConsumerEC_Control::orb_ [private]

The ORB.

CORBA::PolicyCurrent_var TAO_ECG_Reactive_ConsumerEC_Control::policy_current_ [private]

To control the timeout policy in the thread.

CORBA::PolicyList TAO_ECG_Reactive_ConsumerEC_Control::policy_list_ [private]

Precomputed policy list to the set timeout.

ACE_Time_Value TAO_ECG_Reactive_ConsumerEC_Control::rate_ [private]

The polling rate.

ACE_Reactor* TAO_ECG_Reactive_ConsumerEC_Control::reactor_ [private]

The ORB reactor.

ACE_Time_Value TAO_ECG_Reactive_ConsumerEC_Control::timeout_ [private]

The polling timeout.

---

The documentation for this class was generated from the following files:

• ECG_Reactive_ConsumerEC_Control.h
• ECG_Reactive_ConsumerEC_Control.cpp

---
