TAO_UIPMC_Acceptor Class Reference

TAO_UIPMC_Acceptor. More...

#include <UIPMC_Acceptor.h>

Inheritance diagram for TAO_UIPMC_Acceptor:

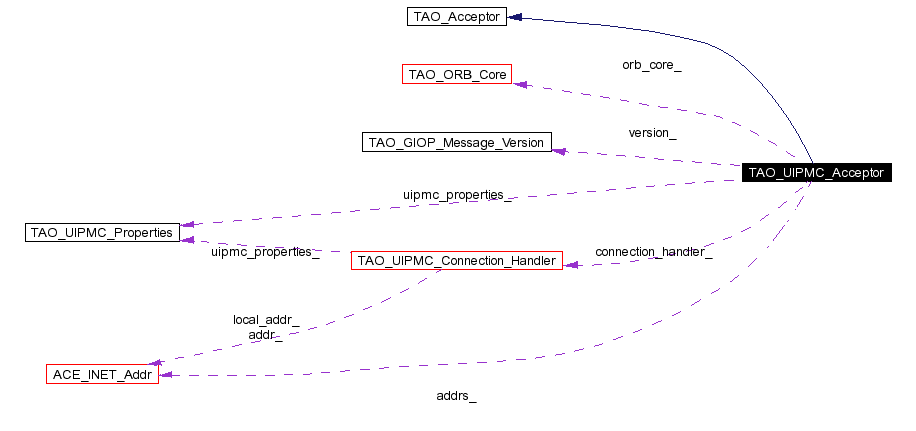

[legend]Collaboration diagram for TAO_UIPMC_Acceptor:

[legend]List of all members.

Public Methods
	TAO_UIPMC_Acceptor (CORBA::Boolean flag=0)
	Constructor.
	~TAO_UIPMC_Acceptor (void)
	Destructor.
const ACE_INET_Addr &	address (void) const
const ACE_INET_Addr *	endpoints (void)
	Returns the array of endpoints in this acceptor.
virtual int	open (TAO_ORB_Core *orb_core, ACE_Reactor *reactor, int version_major, int version_minor, const char *address, const char *options=0)
virtual int	open_default (TAO_ORB_Core *orb_core, ACE_Reactor *reactor, int version_major, int version_minor, const char *options=0)
virtual int	close (void)
virtual int	create_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
virtual int	is_collocated (const TAO_Endpoint *endpoint)
virtual CORBA::ULong	endpoint_count (void)
virtual int	object_key (IOP::TaggedProfile &profile, TAO::ObjectKey &key)
int	hostname (TAO_ORB_Core *orb_core, ACE_INET_Addr &addr, char *&host, const char *specified_hostname=0)
int	dotted_decimal_address (ACE_INET_Addr &addr, char *&host)
Protected Methods
virtual int	open_i (const ACE_INET_Addr &addr, ACE_Reactor *reactor)
virtual int	parse_options (const char *options)
	Parse protocol specific options.
int	init_uipmc_properties (void)
Protected Attributes
ACE_INET_Addr *	addrs_
char **	hosts_
CORBA::ULong	endpoint_count_
TAO_GIOP_Message_Version	version_
TAO_ORB_Core *	orb_core_
	ORB Core.
TAO_UIPMC_Properties	uipmc_properties_
Private Attributes
TAO_UIPMC_Connection_Handler *	connection_handler_

---

Detailed Description

TAO_UIPMC_Acceptor.

The UIPMC-specific bridge class for the concrete acceptor.

---

Constructor & Destructor Documentation

TAO_UIPMC_Acceptor::TAO_UIPMC_Acceptor (  CORBA::Boolean    flag = 0 )

Constructor.

TAO_UIPMC_Acceptor::~TAO_UIPMC_Acceptor (  void    )

Destructor.

---

Member Function Documentation

ACE_INLINE const ACE_INET_Addr & TAO_UIPMC_Acceptor::address (  void    )  const

@ Helper method for the implementation repository, should go away

int TAO_UIPMC_Acceptor::close (  void    )  [virtual]

Implements TAO_Acceptor.

int TAO_UIPMC_Acceptor::create_profile (  const TAO::ObjectKey &    object_key, TAO_MProfile &    mprofile, CORBA::Short    priority )  [virtual]

Implements TAO_Acceptor.

int TAO_UIPMC_Acceptor::dotted_decimal_address (  ACE_INET_Addr &    addr, char *&    host )

Set the host name for the given address using the dotted decimal format.

CORBA::ULong TAO_UIPMC_Acceptor::endpoint_count (  void    )  [virtual]

Implements TAO_Acceptor.

ACE_INLINE const ACE_INET_Addr * TAO_UIPMC_Acceptor::endpoints (  void    )

Returns the array of endpoints in this acceptor.

int TAO_UIPMC_Acceptor::hostname (  TAO_ORB_Core *    orb_core, ACE_INET_Addr &    addr, char *&    host, const char *    specified_hostname = 0 )

Set the host name for the given addr. A hostname may be forced by using specified_hostname. This is useful if the given address corresponds to more than one hostname and the desired one cannot be determined in any other way.

int TAO_UIPMC_Acceptor::init_uipmc_properties (  void    )  [protected]

Obtain uipmc properties that must be used by this acceptor, i.e., initialize <uipmc_properties_>.

int TAO_UIPMC_Acceptor::is_collocated (  const TAO_Endpoint *    endpoint )  [virtual]

Implements TAO_Acceptor.

int TAO_UIPMC_Acceptor::object_key (  IOP::TaggedProfile &    profile, TAO::ObjectKey &    key )  [virtual]

Implements TAO_Acceptor.

int TAO_UIPMC_Acceptor::open (  TAO_ORB_Core *    orb_core, ACE_Reactor *    reactor, int    version_major, int    version_minor, const char *    address, const char *    options = 0 )  [virtual]

The TAO_Acceptor methods, check the documentation in Pluggable.h for details. Implements TAO_Acceptor.

int TAO_UIPMC_Acceptor::open_default (  TAO_ORB_Core *    orb_core, ACE_Reactor *    reactor, int    version_major, int    version_minor, const char *    options = 0 )  [virtual]

Implements TAO_Acceptor.

int TAO_UIPMC_Acceptor::open_i (  const ACE_INET_Addr &    addr, ACE_Reactor *    reactor )  [protected, virtual]

Implement the common part of the open*() methods. This method is virtual to allow a derived class implementation to be invoked instead.

int TAO_UIPMC_Acceptor::parse_options (  const char *    options )  [protected, virtual]

Parse protocol specific options.

---

Member Data Documentation

ACE_INET_Addr* TAO_UIPMC_Acceptor::addrs_ [protected]

Array of ACE_INET_Addr instances, each one corresponding to a given network interface.

TAO_UIPMC_Connection_Handler* TAO_UIPMC_Acceptor::connection_handler_ [private]

CORBA::ULong TAO_UIPMC_Acceptor::endpoint_count_ [protected]

The number of host names cached in the hosts_ array (equivalent to the number of endpoints opened by this Acceptor).

char** TAO_UIPMC_Acceptor::hosts_ [protected]

Cache the information about the endpoints serviced by this acceptor. There may in fact be multiple hostnames for this endpoint. For example, if the IP address is INADDR_ANY (0.0.0.0) then there will be possibly a different hostname for each interface.

TAO_ORB_Core* TAO_UIPMC_Acceptor::orb_core_ [protected]

ORB Core.

TAO_UIPMC_Properties TAO_UIPMC_Acceptor::uipmc_properties_ [protected]

UIPMC configuration properties to be used for all connections opened by this acceptor.

TAO_GIOP_Message_Version TAO_UIPMC_Acceptor::version_ [protected]

The GIOP version for this endpoint @ Theoretically this shouldn't be here!! We need to look at a way to move this out

---

The documentation for this class was generated from the following files:

• UIPMC_Acceptor.h
• UIPMC_Acceptor.cpp
• UIPMC_Acceptor.i

---
