TAO_Offer_Database< LOCK_TYPE > Class Template Reference

#include <Offer_Database.h>

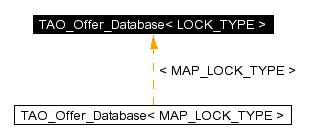

Inheritance diagram for TAO_Offer_Database< LOCK_TYPE >:

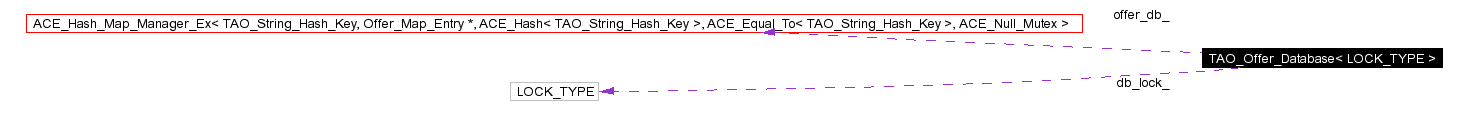

[legend]Collaboration diagram for TAO_Offer_Database< LOCK_TYPE >:

[legend]List of all members.

Public Types
typedef TAO_Service_Offer_Iterator< LOCK_TYPE >	offer_iterator
typedef ACE_Hash_Map_Manager_Ex< TAO_String_Hash_Key, Offer_Map_Entry *, ACE_Hash< TAO_String_Hash_Key >, ACE_Equal_To< TAO_String_Hash_Key >, ACE_Null_Mutex >	Offer_Database
Public Methods
	TAO_Offer_Database (void)
	No arg constructor.
	~TAO_Offer_Database (void)
CosTrading::OfferId	insert_offer (const char *type, CosTrading::Offer *offer)
int	remove_offer (const CosTrading::OfferId offer_id ACE_ENV_ARG_DECL) throw (CosTrading::IllegalOfferId, CosTrading::UnknownOfferId)
CosTrading::Offer *	lookup_offer (const CosTrading::OfferId offer_id ACE_ENV_ARG_DECL) throw (CosTrading::IllegalOfferId, CosTrading::UnknownOfferId)
CosTrading::Offer *	lookup_offer (const CosTrading::OfferId offer_id, char *&type_name ACE_ENV_ARG_DECL) throw (CosTrading::IllegalOfferId, CosTrading::UnknownOfferId)
TAO_Offer_Id_Iterator *	retrieve_all_offer_ids (void)
Private Methods
CosTrading::Offer *	lookup_offer (const char *type, CORBA::ULong id)
int	remove_offer (const char *type, CORBA::ULong id)
void	operator= (const TAO_Offer_Database< LOCK_TYPE > &)
	TAO_Offer_Database (const TAO_Offer_Database< LOCK_TYPE > &)
Static Private Methods
CosTrading::OfferId	generate_offer_id (const char *type_name, CORBA::ULong id)
void	parse_offer_id (const CosTrading::OfferId offer_id, char *&service_type, CORBA::ULong &id ACE_ENV_ARG_DECL) throw (CosTrading::IllegalOfferId)
Private Attributes
LOCK_TYPE	db_lock_
Offer_Database	offer_db_
Friends
class	TAO_Service_Offer_Iterator< LOCK_TYPE >

---

Detailed Description

template<class LOCK_TYPE>
class TAO_Offer_Database< LOCK_TYPE >

The TAO_Offer_Database encapsulates the mapping of service types to those offers exported with that service types. The underlying structure is a map of maps. The first maps maps the service type name to a map of exported offers. The second map maps the identifying index for that offer within the service types. So a service type name and an index uniquely identifies an exported offer. In fact, when the register export interface returns a CosTrading::OfferId, it's returning no more than a simple string concatenation of these two values. In addition to all these wonderful things, the TAO_Offer_Database has built-in locking, one reader/writer-style lock for modifying the top-level map and a reader/writer-style for each of the offer maps. Needless to say the locks are acquired when the TAO_Offer_Database performs operations on the structures they guard. NOTE: TAO_Offer_Database needs to be parameterized by a READER/WRITER LOCK, a RECURSIVE MUTEX, or a NULL MUTEX, not a simple binary mutex! Mutexes will cause deadlock when you try to contruct an iterator (which acquires a read lock on the map under an existing read lock). Just don't do it, ok?

---

Member Typedef Documentation

template<class LOCK_TYPE> typedef ACE_Hash_Map_Manager_Ex< TAO_String_Hash_Key, Offer_Map_Entry*, ACE_Hash<TAO_String_Hash_Key>, ACE_Equal_To<TAO_String_Hash_Key>, ACE_Null_Mutex > TAO_Offer_Database< LOCK_TYPE >::Offer_Database

template<class LOCK_TYPE> typedef TAO_Service_Offer_Iterator<LOCK_TYPE> TAO_Offer_Database< LOCK_TYPE >::offer_iterator

---

Constructor & Destructor Documentation

template<class LOCK_TYPE> TAO_Offer_Database< LOCK_TYPE >::TAO_Offer_Database (  void    )

No arg constructor.

template<class LOCK_TYPE> TAO_Offer_Database< LOCK_TYPE >::~TAO_Offer_Database (  void    )

template<class LOCK_TYPE> TAO_Offer_Database< LOCK_TYPE >::TAO_Offer_Database (  const TAO_Offer_Database< LOCK_TYPE > &    )  [private]

---

Member Function Documentation

template<class LOCK_TYPE> CosTrading::OfferId TAO_Offer_Database< LOCK_TYPE >::generate_offer_id (  const char *    type_name, CORBA::ULong    id )  [static, private]

Take in a service type name for the offer the current value of of the counter and generate an offer id.

template<class LOCK_TYPE> CosTrading::OfferId TAO_Offer_Database< LOCK_TYPE >::insert_offer (  const char *    type, CosTrading::Offer *    offer )

Add an offer of type <type> and generate a CosTrading::OfferId for it. Returns 0 on failure.

template<class LOCK_TYPE> CosTrading::Offer * TAO_Offer_Database< LOCK_TYPE >::lookup_offer (  const char *    type, CORBA::ULong    id )  [private]

Lookup an offer whose type is <type> and id, <id>. Return 0 on failure.

template<class LOCK_TYPE> CosTrading::Offer * TAO_Offer_Database< LOCK_TYPE >::lookup_offer (  const CosTrading::OfferId    offer_id, char *&type_name    ACE_ENV_ARG_DECL )  throw (CosTrading::IllegalOfferId, CosTrading::UnknownOfferId)

Lookup an offer whose OfferId is <offer_id> and return in <type_name> the type name of the object. Type name is just a pointer to a location in offer_id, so DON'T DELETE IT.

template<class LOCK_TYPE> CosTrading::Offer * TAO_Offer_Database< LOCK_TYPE >::lookup_offer (  const CosTrading::OfferId offer_id    ACE_ENV_ARG_DECL )  throw (CosTrading::IllegalOfferId, CosTrading::UnknownOfferId)

Lookup an offer whose offer_id is <offer_id>, and return it. Otherwise, throw the appropriate exception.

template<class LOCK_TYPE> void TAO_Offer_Database< LOCK_TYPE >::operator= (  const TAO_Offer_Database< LOCK_TYPE > &    )  [private]

template<class LOCK_TYPE> void TAO_Offer_Database< LOCK_TYPE >::parse_offer_id (  const CosTrading::OfferId    offer_id, char *&    service_type, CORBA::ULong &id    ACE_ENV_ARG_DECL )  throw (CosTrading::IllegalOfferId) [static, private]

Take in a previously generated offer id and return the type and id that were used to generate the offer id.

template<class LOCK_TYPE> int TAO_Offer_Database< LOCK_TYPE >::remove_offer (  const char *    type, CORBA::ULong    id )  [private]

Remove an offers whose id is <offer_id>. Returns 0 on success, -1 on failure, and throws a CosTrading::IllegalOfferId if it can't parse the CosTrading::OfferId.

template<class LOCK_TYPE> int TAO_Offer_Database< LOCK_TYPE >::remove_offer (  const CosTrading::OfferId offer_id    ACE_ENV_ARG_DECL )  throw (CosTrading::IllegalOfferId, CosTrading::UnknownOfferId)

template<class LOCK_TYPE> TAO_Offer_Id_Iterator * TAO_Offer_Database< LOCK_TYPE >::retrieve_all_offer_ids (  void    )

Return an iterator that will traverse and return all the offer ids in the service type map.

---

Friends And Related Function Documentation

template<class LOCK_TYPE> friend class TAO_Service_Offer_Iterator< LOCK_TYPE > [friend]

---

Member Data Documentation

template<class LOCK_TYPE> LOCK_TYPE TAO_Offer_Database< LOCK_TYPE >::db_lock_ [private]

template<class LOCK_TYPE> Offer_Database TAO_Offer_Database< LOCK_TYPE >::offer_db_ [private]

---

The documentation for this class was generated from the following files:

• Offer_Database.h
• Offer_Database.cpp

---
