TAO_Resource_Factory Class Reference

Factory which manufacturers resources for use by the ORB Core. More...

#include <Resource_Factory.h>

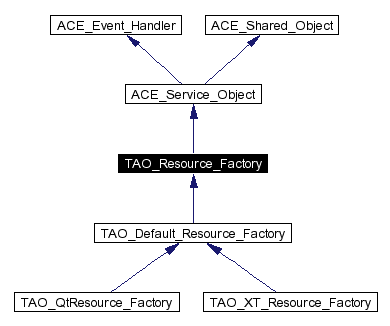

Inheritance diagram for TAO_Resource_Factory:

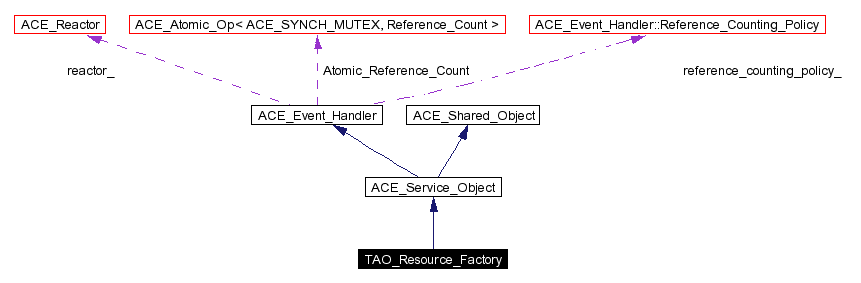

[legend]Collaboration diagram for TAO_Resource_Factory:

[legend]List of all members.

Public Types
enum	Purging_Strategy { LRU, LFU, FIFO, NOOP }
enum	Resource_Usage { TAO_EAGER, TAO_LAZY }
Public Methods
	TAO_Resource_Factory (void)
virtual	~TAO_Resource_Factory (void)
virtual int	use_locked_data_blocks (void) const
virtual ACE_Reactor *	get_reactor (void)
	Return an <ACE_Reactor> to be utilized.
virtual void	reclaim_reactor (ACE_Reactor *reactor)
	Reclaim reactor resources (e.g. deallocate, etc).
virtual TAO_Acceptor_Registry *	get_acceptor_registry (void)
	Return a reference to the acceptor registry.
virtual TAO_Connector_Registry *	get_connector_registry (void)
	Return an Connector to be utilized.
virtual ACE_Allocator *	input_cdr_dblock_allocator (void)
	Access the input CDR allocators.
virtual ACE_Allocator *	input_cdr_buffer_allocator (void)
virtual ACE_Allocator *	input_cdr_msgblock_allocator (void)
virtual int	input_cdr_allocator_type_locked (void)
virtual ACE_Allocator *	output_cdr_dblock_allocator (void)
	Access the output CDR allocators.
virtual ACE_Allocator *	output_cdr_buffer_allocator (void)
virtual ACE_Allocator *	output_cdr_msgblock_allocator (void)
virtual TAO_ProtocolFactorySet *	get_protocol_factories (void)
virtual TAO_Codeset_Manager *	get_codeset_manager (void)
virtual int	init_protocol_factories (void)
virtual int	cache_maximum (void) const
	This denotes the maximum number of connections that can be cached.
virtual int	purge_percentage (void) const
virtual int	max_muxed_connections (void) const
virtual int	get_parser_names (char **&names, int &number_of_names)
virtual ACE_Lock *	create_cached_connection_lock (void)
virtual int	locked_transport_cache (void)
virtual ACE_Lock *	create_object_key_table_lock (void)
	Creates a lock needed for the table that stores the object keys.
virtual ACE_Lock *	create_corba_object_lock (void)
	Creates the lock for the CORBA Object.
virtual TAO_Flushing_Strategy *	create_flushing_strategy (void)=0
virtual TAO_Connection_Purging_Strategy *	create_purging_strategy (void)=0
	Creates the connection purging strategy.
virtual TAO_LF_Strategy *	create_lf_strategy (void)=0
virtual void	disable_factory (void)=0
virtual TAO_Resource_Factory::Resource_Usage	resource_usage_strategy (void) const=0
	Return the resource usage strategy.
Protected Methods
virtual int	load_default_protocols (void)

---

Detailed Description

Factory which manufacturers resources for use by the ORB Core.

This class is a factory/repository for critical ORB Core resources.

---

Member Enumeration Documentation

enum TAO_Resource_Factory::Purging_Strategy

Enumeration values: LRU  LFU  FIFO  NOOP

enum TAO_Resource_Factory::Resource_Usage

Enumeration values: TAO_EAGER  Use resources in an eager fashion. TAO_LAZY  Use resources in a lazy manner.

---

Constructor & Destructor Documentation

TAO_Resource_Factory::TAO_Resource_Factory (  void    )

TAO_Resource_Factory::~TAO_Resource_Factory (  void    )  [virtual]

---

Member Function Documentation

int TAO_Resource_Factory::cache_maximum (  void    )  const [virtual]

This denotes the maximum number of connections that can be cached. Reimplemented in TAO_Default_Resource_Factory.

ACE_Lock * TAO_Resource_Factory::create_cached_connection_lock (  void    )  [virtual]

Creates the lock for the lock needed in the Cache Map Deprecated: : Reimplemented in TAO_Default_Resource_Factory.

ACE_Lock * TAO_Resource_Factory::create_corba_object_lock (  void    )  [virtual]

Creates the lock for the CORBA Object. Reimplemented in TAO_Default_Resource_Factory.

virtual TAO_Flushing_Strategy* TAO_Resource_Factory::create_flushing_strategy (  void    )  [pure virtual]

Creates the flushing strategy. The new instance is owned by the caller. Implemented in TAO_Default_Resource_Factory.

virtual TAO_LF_Strategy* TAO_Resource_Factory::create_lf_strategy (  void    )  [pure virtual]

Creates the leader followers strategy. The new instance is owned by the caller. Implemented in TAO_Default_Resource_Factory.

ACE_Lock * TAO_Resource_Factory::create_object_key_table_lock (  void    )  [virtual]

Creates a lock needed for the table that stores the object keys. Reimplemented in TAO_Default_Resource_Factory.

virtual TAO_Connection_Purging_Strategy* TAO_Resource_Factory::create_purging_strategy (  void    )  [pure virtual]

Creates the connection purging strategy. Implemented in TAO_Default_Resource_Factory.

virtual void TAO_Resource_Factory::disable_factory (  void    )  [pure virtual]

Disables the factory. When a new factory is installed and used, this function should be called on the previously used (default) factory. This should result in proper error reporting if the user attempts to set options on an unused factory. Implemented in TAO_Default_Resource_Factory.

TAO_Acceptor_Registry * TAO_Resource_Factory::get_acceptor_registry (  void    )  [virtual]

Return a reference to the acceptor registry. Reimplemented in TAO_Default_Resource_Factory.

TAO_Codeset_Manager * TAO_Resource_Factory::get_codeset_manager (  void    )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

TAO_Connector_Registry * TAO_Resource_Factory::get_connector_registry (  void    )  [virtual]

Return an Connector to be utilized. Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::get_parser_names (  char **&    names, int &    number_of_names )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

TAO_ProtocolFactorySet * TAO_Resource_Factory::get_protocol_factories (  void    )  [virtual]

The protocol factory list is implemented in this class since a) it will be a global resource and b) it is initialized at start up and then not altered. Returns a container holding the list of loaded protocols. Reimplemented in TAO_Default_Resource_Factory.

ACE_Reactor * TAO_Resource_Factory::get_reactor (  void    )  [virtual]

Return an <ACE_Reactor> to be utilized. Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::init_protocol_factories (  void    )  [virtual]

this method will loop through the protocol list and using the protocol name field this method will retrieve a pointer to the associated protocol factory from the service configurator. It is assumed that only one thread will call this method at ORB initialization. NON-THREAD-SAFE Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::input_cdr_allocator_type_locked (  void    )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::input_cdr_buffer_allocator (  void    )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::input_cdr_dblock_allocator (  void    )  [virtual]

Access the input CDR allocators. Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::input_cdr_msgblock_allocator (  void    )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::load_default_protocols (  void    )  [protected, virtual]

Loads the default protocols. This method is used so that the advanced_resource.cpp can call the one in default_resource.cpp without calling unnecessary functions. Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::locked_transport_cache (  void    )  [virtual]

Should the transport cache have a lock or not? Return 1 if the transport cache needs to be locked else return 0 Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::max_muxed_connections (  void    )  const [virtual]

Return the number of muxed connections that are allowed for a remote endpoint Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::output_cdr_buffer_allocator (  void    )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::output_cdr_dblock_allocator (  void    )  [virtual]

Access the output CDR allocators. Reimplemented in TAO_Default_Resource_Factory.

ACE_Allocator * TAO_Resource_Factory::output_cdr_msgblock_allocator (  void    )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::purge_percentage (  void    )  const [virtual]

This denotes the amount of entries to remove from the connection cache. Reimplemented in TAO_Default_Resource_Factory.

void TAO_Resource_Factory::reclaim_reactor (  ACE_Reactor *    reactor )  [virtual]

Reclaim reactor resources (e.g. deallocate, etc). Reimplemented in TAO_Default_Resource_Factory.

virtual TAO_Resource_Factory::Resource_Usage TAO_Resource_Factory::resource_usage_strategy (  void    )  const [pure virtual]

Return the resource usage strategy. Implemented in TAO_Default_Resource_Factory.

int TAO_Resource_Factory::use_locked_data_blocks (  void    )  const [virtual]

@ Backwards compatibility, return 1 if the ORB core should use Locked_Data_Blocks Reimplemented in TAO_Default_Resource_Factory.

---

The documentation for this class was generated from the following files:

• Resource_Factory.h
• Resource_Factory.cpp

---
