TAO_IIOP_Endpoint Class Reference

TAO_IIOP_Endpoint. More...

#include <IIOP_Endpoint.h>

Inheritance diagram for TAO_IIOP_Endpoint:

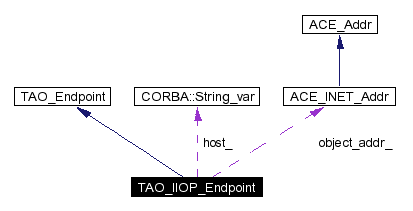

[legend]Collaboration diagram for TAO_IIOP_Endpoint:

[legend]List of all members.

Public Methods
	TAO_IIOP_Endpoint (void)
	Default constructor.
	TAO_IIOP_Endpoint (const char *host, CORBA::UShort port, const ACE_INET_Addr &addr, CORBA::Short priority=TAO_INVALID_PRIORITY)
	TAO_IIOP_Endpoint (const ACE_INET_Addr &addr, int use_dotted_decimal_addresses)
	Constructor.
	TAO_IIOP_Endpoint (const char *host, CORBA::UShort port, CORBA::Short priority)
	Constructor. This constructor is used when decoding endpoints.
	~TAO_IIOP_Endpoint (void)
	Destructor.
virtual TAO_Endpoint *	next (void)
	Endpoints can be stringed in a list.
virtual int	addr_to_string (char *buffer, size_t length)
	Return a string representation for the address.
virtual TAO_Endpoint *	duplicate (void)
	Makes a copy of <this>.
virtual CORBA::Boolean	is_equivalent (const TAO_Endpoint *other_endpoint)
virtual CORBA::ULong	hash (void)
	Return a hash value for this object.
const ACE_INET_Addr &	object_addr (void) const
	Return a reference to the <object_addr>.
const char *	host (void) const
const char *	host (const char *h)
CORBA::UShort	port (void) const
	Return the port number.
CORBA::UShort	port (CORBA::UShort p)
	Set the port number.
Private Methods
int	set (const ACE_INET_Addr &addr, int use_dotted_decimal_addresses)
	Helper method for setting INET_Addr.
void	object_addr_i (void) const
	Helper method for object_addr () call.
Private Attributes
CORBA::String_var	host_
	String representing the host name.
CORBA::UShort	port_
	TCP port number.
ACE_INET_Addr	object_addr_
bool	object_addr_set_
	Flag to indicate if the address has been resolved and set.
TAO_IIOP_Endpoint *	next_
Friends
class	TAO_IIOP_Profile
class	TAO_SSLIOP_Profile

---

Detailed Description

TAO_IIOP_Endpoint.

IIOP-specific implementation of PP Framework Endpoint interface.

---

Constructor & Destructor Documentation

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint (  void    )

Default constructor.

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint (  const char *    host, CORBA::UShort    port, const ACE_INET_Addr &    addr, CORBA::Short    priority = TAO_INVALID_PRIORITY )

Constructor. This is the most efficient constructor since it does not require any address resolution processing.

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint (  const ACE_INET_Addr &    addr, int    use_dotted_decimal_addresses )

Constructor.

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint (  const char *    host, CORBA::UShort    port, CORBA::Short    priority )

Constructor. This constructor is used when decoding endpoints.

TAO_IIOP_Endpoint::~TAO_IIOP_Endpoint (  void    )

Destructor.

---

Member Function Documentation

int TAO_IIOP_Endpoint::addr_to_string (  char *    buffer, size_t    length )  [virtual]

Return a string representation for the address. The purpose of this method is to provide a general interface to the underlying address object's addr_to_string method. This allows the protocol implementor to select the appropriate string format. Returns: -1 if buffer is too small. Implements TAO_Endpoint.

TAO_Endpoint * TAO_IIOP_Endpoint::duplicate (  void    )  [virtual]

Makes a copy of <this>. Implements TAO_Endpoint.

CORBA::ULong TAO_IIOP_Endpoint::hash (  void    )  [virtual]

Return a hash value for this object. Implements TAO_Endpoint.

const char * TAO_IIOP_Endpoint::host (  const char *    h )

Copy the string <h> into <host_> and return the resulting pointer. This object maintains ownership of this string.

ACE_INLINE const char * TAO_IIOP_Endpoint::host (  void    )  const

Return a pointer to the host string. This object maintains ownership of this string.

CORBA::Boolean TAO_IIOP_Endpoint::is_equivalent (  const TAO_Endpoint *    other_endpoint )  [virtual]

Return true if this endpoint is equivalent to <other_endpoint>. Two endpoints are equivalent iff their port and host are the same. Implements TAO_Endpoint.

TAO_Endpoint * TAO_IIOP_Endpoint::next (  void    )  [virtual]

Endpoints can be stringed in a list. Returns: The next endpoint in the list, if any. Implements TAO_Endpoint.

const ACE_INET_Addr & TAO_IIOP_Endpoint::object_addr (  void    )  const

Return a reference to the <object_addr>.

void TAO_IIOP_Endpoint::object_addr_i (  void    )  const [private]

Helper method for object_addr () call.

ACE_INLINE CORBA::UShort TAO_IIOP_Endpoint::port (  CORBA::UShort    p )

Set the port number.

ACE_INLINE CORBA::UShort TAO_IIOP_Endpoint::port (  void    )  const

Return the port number.

int TAO_IIOP_Endpoint::set (  const ACE_INET_Addr &    addr, int    use_dotted_decimal_addresses )  [private]

Helper method for setting INET_Addr.

---

Friends And Related Function Documentation

friend class TAO_IIOP_Profile [friend]

friend class TAO_SSLIOP_Profile [friend]

---

Member Data Documentation

CORBA::String_var TAO_IIOP_Endpoint::host_ [private]

String representing the host name.

TAO_IIOP_Endpoint* TAO_IIOP_Endpoint::next_ [private]

IIOP Endpoints can be stringed into a list. Return the next endpoint in the list, if any.

ACE_INET_Addr TAO_IIOP_Endpoint::object_addr_ [private]

Cached instance of <ACE_INET_Addr> for use in making invocations, etc.

bool TAO_IIOP_Endpoint::object_addr_set_ [private]

Flag to indicate if the address has been resolved and set.

CORBA::UShort TAO_IIOP_Endpoint::port_ [private]

TCP port number.

---

The documentation for this class was generated from the following files:

• IIOP_Endpoint.h
• IIOP_Endpoint.cpp
• IIOP_Endpoint.i

---
