TAO_GIOP_Message_Generator_Parser Class Reference

Base class for the GIOP Message generator and parser. More...

#include <GIOP_Message_Generator_Parser.h>

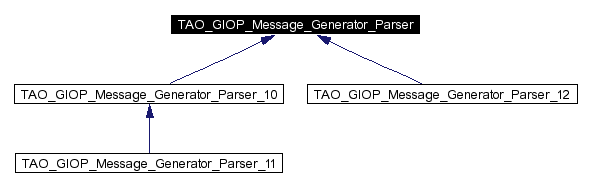

Inheritance diagram for TAO_GIOP_Message_Generator_Parser:

[legend]List of all members.

Public Methods
virtual int	write_request_header (const TAO_Operation_Details &opdetails, TAO_Target_Specification &spec, TAO_OutputCDR &msg)=0
	Write the request header in to <msg>.
virtual int	write_locate_request_header (CORBA::ULong request_id, TAO_Target_Specification &spec, TAO_OutputCDR &msg)=0
	Write the LocateRequest header.
virtual int	write_reply_header (TAO_OutputCDR &output, TAO_Pluggable_Reply_Params_Base &reply ACE_ENV_ARG_DECL)=0 throw (CORBA::SystemException)
	Write the reply header in to <output>.
virtual int	write_locate_reply_mesg (TAO_OutputCDR &output, CORBA::ULong request_id, TAO_GIOP_Locate_Status_Msg &status)=0
	Writes the locate _reply message in to the <output>.
virtual int	parse_request_header (TAO_ServerRequest &)=0
virtual int	parse_locate_header (TAO_GIOP_Locate_Request_Header &)=0
virtual int	parse_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params &params)
	Parse the reply message.
virtual int	parse_locate_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params &params)
	Parse the locate reply message from the server.
virtual CORBA::Octet	major_version (void)=0
	Our versions.
virtual CORBA::Octet	minor_version (void)=0
virtual int	is_ready_for_bidirectional (void)
Protected Methods
void	marshal_reply_status (TAO_OutputCDR &output, TAO_Pluggable_Reply_Params_Base &reply)
	Marshall the reply status.

---

Detailed Description

Base class for the GIOP Message generator and parser.

Version specific classes would inherit from this class. Strategy to determine which version of the GIOP request have we received and which version do we need to use to send messages.

---

Member Function Documentation

int TAO_GIOP_Message_Generator_Parser::is_ready_for_bidirectional (  void    )  [virtual]

Is the messaging object ready for processing BiDirectional request/response? Reimplemented in TAO_GIOP_Message_Generator_Parser_12.

virtual CORBA::Octet TAO_GIOP_Message_Generator_Parser::major_version (  void    )  [pure virtual]

Our versions. Implemented in TAO_GIOP_Message_Generator_Parser_10, and TAO_GIOP_Message_Generator_Parser_12.

void TAO_GIOP_Message_Generator_Parser::marshal_reply_status (  TAO_OutputCDR &    output, TAO_Pluggable_Reply_Params_Base &    reply )  [protected]

Marshall the reply status.

virtual CORBA::Octet TAO_GIOP_Message_Generator_Parser::minor_version (  void    )  [pure virtual]

Implemented in TAO_GIOP_Message_Generator_Parser_10, TAO_GIOP_Message_Generator_Parser_11, and TAO_GIOP_Message_Generator_Parser_12.

virtual int TAO_GIOP_Message_Generator_Parser::parse_locate_header (  TAO_GIOP_Locate_Request_Header &    )  [pure virtual]

Parse the Loacte Request Header from the incoming stream. This will do a version specific parsing of the incoming Request header Implemented in TAO_GIOP_Message_Generator_Parser_10, and TAO_GIOP_Message_Generator_Parser_12.

int TAO_GIOP_Message_Generator_Parser::parse_locate_reply (  TAO_InputCDR &    input, TAO_Pluggable_Reply_Params &    params )  [virtual]

Parse the locate reply message from the server. Reimplemented in TAO_GIOP_Message_Generator_Parser_10, and TAO_GIOP_Message_Generator_Parser_12.

int TAO_GIOP_Message_Generator_Parser::parse_reply (  TAO_InputCDR &    input, TAO_Pluggable_Reply_Params &    params )  [virtual]

Parse the reply message. Reimplemented in TAO_GIOP_Message_Generator_Parser_10, and TAO_GIOP_Message_Generator_Parser_12.

virtual int TAO_GIOP_Message_Generator_Parser::parse_request_header (  TAO_ServerRequest &    )  [pure virtual]

Parse the Request Header from the incoming stream. This will do a version specific parsing of the incoming Request header Implemented in TAO_GIOP_Message_Generator_Parser_10, and TAO_GIOP_Message_Generator_Parser_12.

virtual int TAO_GIOP_Message_Generator_Parser::write_locate_reply_mesg (  TAO_OutputCDR &    output, CORBA::ULong    request_id, TAO_GIOP_Locate_Status_Msg &    status )  [pure virtual]

Writes the locate _reply message in to the <output>. Implemented in TAO_GIOP_Message_Generator_Parser_10, and TAO_GIOP_Message_Generator_Parser_12.

virtual int TAO_GIOP_Message_Generator_Parser::write_locate_request_header (  CORBA::ULong    request_id, TAO_Target_Specification &    spec, TAO_OutputCDR &    msg )  [pure virtual]

Write the LocateRequest header. Implemented in TAO_GIOP_Message_Generator_Parser_10, and TAO_GIOP_Message_Generator_Parser_12.

virtual int TAO_GIOP_Message_Generator_Parser::write_reply_header (  TAO_OutputCDR &    output, TAO_Pluggable_Reply_Params_Base &reply    ACE_ENV_ARG_DECL )  throw (CORBA::SystemException) [pure virtual]

Write the reply header in to <output>. Implemented in TAO_GIOP_Message_Generator_Parser_10, and TAO_GIOP_Message_Generator_Parser_12.

virtual int TAO_GIOP_Message_Generator_Parser::write_request_header (  const TAO_Operation_Details &    opdetails, TAO_Target_Specification &    spec, TAO_OutputCDR &    msg )  [pure virtual]

Write the request header in to <msg>. Implemented in TAO_GIOP_Message_Generator_Parser_10, and TAO_GIOP_Message_Generator_Parser_12.

---

The documentation for this class was generated from the following files:

• GIOP_Message_Generator_Parser.h
• GIOP_Message_Generator_Parser.cpp

---
