TAO_Default_Client_Strategy_Factory Class Reference

This is the "default" client strategy factor for TAO. It includes strategies that are configured through command-line options so that everything operates as if there were no dynamically-linkable strategies. More...

#include <default_client.h>

Inheritance diagram for TAO_Default_Client_Strategy_Factory:

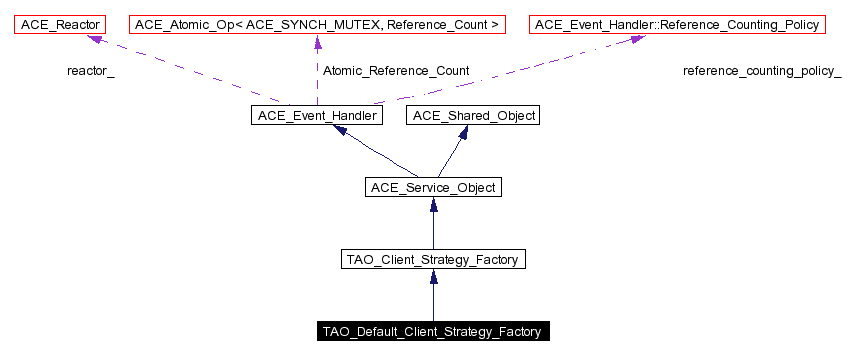

[legend]Collaboration diagram for TAO_Default_Client_Strategy_Factory:

[legend]List of all members.

Public Methods
	TAO_Default_Client_Strategy_Factory (void)
	Constructor.
virtual	~TAO_Default_Client_Strategy_Factory (void)
	Destructor.
virtual int	init (int argc, ACE_TCHAR *argv[])
	Dynamic linking hook.
int	parse_args (int argc, ACE_TCHAR *argv[])
	Parse svc.conf arguments.
virtual ACE_Lock *	create_profile_lock (void)
virtual TAO_Transport_Mux_Strategy *	create_transport_mux_strategy (TAO_Transport *transport)
	Create the correct client request muxing strategy.
virtual ACE_Lock *	create_transport_mux_strategy_lock (void)
	Create the correct lock for request muxing strategy.
virtual int	reply_dispatcher_table_size (void) const
	Return the size of the reply dispatcher table.
virtual int	allow_callback (void)
	Does the client allow any form of callback?
virtual TAO_Wait_Strategy *	create_wait_strategy (TAO_Transport *transport)
	Create the correct client <wait_for_reply> strategy.
virtual TAO_Connect_Strategy *	create_connect_strategy (TAO_ORB_Core *)
	Create the correct client <asynch_connect> strategy.
virtual ACE_Lock *	create_ft_service_retention_id_lock (void)
Protected Methods
void	report_option_value_error (const ACE_TCHAR *option_name, const ACE_TCHAR *option_value)
Private Types
enum	Lock_Type { TAO_NULL_LOCK, TAO_THREAD_LOCK }
enum	Transport_Mux_Strategy { TAO_MUXED_TMS, TAO_EXCLUSIVE_TMS }
enum	Wait_Strategy { TAO_WAIT_ON_LEADER_FOLLOWER, TAO_WAIT_ON_REACTOR, TAO_WAIT_ON_READ }
enum	Connect_Strategy { TAO_BLOCKED_CONNECT, TAO_REACTIVE_CONNECT, TAO_LEADER_FOLLOWER_CONNECT }
Private Attributes
Lock_Type	profile_lock_type_
	the lock type for forwarding IIOP Profile
Transport_Mux_Strategy	transport_mux_strategy_
	The client Request Mux Strategy.
Wait_Strategy	wait_strategy_
	The wait-for-reply strategy.
Connect_Strategy	connect_strategy_
	The connection initiation strategy.
int	rd_table_size_
	Size of the reply dispatcher table.
Lock_Type	muxed_strategy_lock_type_
	Type of lock for the muxed_strategy.

---

Detailed Description

This is the "default" client strategy factor for TAO. It includes strategies that are configured through command-line options so that everything operates as if there were no dynamically-linkable strategies.

---

Member Enumeration Documentation

enum TAO_Default_Client_Strategy_Factory::Connect_Strategy [private]

Enumeration values: TAO_BLOCKED_CONNECT  TAO_REACTIVE_CONNECT  TAO_LEADER_FOLLOWER_CONNECT

enum TAO_Default_Client_Strategy_Factory::Lock_Type [private]

Enumeration values: TAO_NULL_LOCK  TAO_THREAD_LOCK

enum TAO_Default_Client_Strategy_Factory::Transport_Mux_Strategy [private]

Enumeration values: TAO_MUXED_TMS  TAO_EXCLUSIVE_TMS

enum TAO_Default_Client_Strategy_Factory::Wait_Strategy [private]

Enumeration values: TAO_WAIT_ON_LEADER_FOLLOWER  TAO_WAIT_ON_REACTOR  TAO_WAIT_ON_READ

---

Constructor & Destructor Documentation

TAO_Default_Client_Strategy_Factory::TAO_Default_Client_Strategy_Factory (  void    )

Constructor.

TAO_Default_Client_Strategy_Factory::~TAO_Default_Client_Strategy_Factory (  void    )  [virtual]

Destructor.

---

Member Function Documentation

int TAO_Default_Client_Strategy_Factory::allow_callback (  void    )  [virtual]

Does the client allow any form of callback? Reimplemented from TAO_Client_Strategy_Factory.

TAO_Connect_Strategy * TAO_Default_Client_Strategy_Factory::create_connect_strategy (  TAO_ORB_Core *    )  [virtual]

Create the correct client <asynch_connect> strategy. Reimplemented from TAO_Client_Strategy_Factory.

ACE_Lock * TAO_Default_Client_Strategy_Factory::create_ft_service_retention_id_lock (  void    )  [virtual]

Create a lock to be used by the TAO_Fault_Tolerant_Service class to generate unique retention ids Reimplemented from TAO_Client_Strategy_Factory.

ACE_Lock * TAO_Default_Client_Strategy_Factory::create_profile_lock (  void    )  [virtual]

Create the lock for the stub and the profile Reimplemented from TAO_Client_Strategy_Factory.

TAO_Transport_Mux_Strategy * TAO_Default_Client_Strategy_Factory::create_transport_mux_strategy (  TAO_Transport *    transport )  [virtual]

Create the correct client request muxing strategy. Reimplemented from TAO_Client_Strategy_Factory.

ACE_Lock * TAO_Default_Client_Strategy_Factory::create_transport_mux_strategy_lock (  void    )  [virtual]

Create the correct lock for request muxing strategy. Reimplemented from TAO_Client_Strategy_Factory.

TAO_Wait_Strategy * TAO_Default_Client_Strategy_Factory::create_wait_strategy (  TAO_Transport *    transport )  [virtual]

Create the correct client <wait_for_reply> strategy. Reimplemented from TAO_Client_Strategy_Factory.

int TAO_Default_Client_Strategy_Factory::init (  int    argc, ACE_TCHAR *    argv[] )  [virtual]

Dynamic linking hook. Reimplemented from ACE_Shared_Object.

int TAO_Default_Client_Strategy_Factory::parse_args (  int    argc, ACE_TCHAR *    argv[] )

Parse svc.conf arguments.

int TAO_Default_Client_Strategy_Factory::reply_dispatcher_table_size (  void    )  const [virtual]

Return the size of the reply dispatcher table. Reimplemented from TAO_Client_Strategy_Factory.

void TAO_Default_Client_Strategy_Factory::report_option_value_error (  const ACE_TCHAR *    option_name, const ACE_TCHAR *    option_value )  [protected]

---

Member Data Documentation

Connect_Strategy TAO_Default_Client_Strategy_Factory::connect_strategy_ [private]

The connection initiation strategy.

Lock_Type TAO_Default_Client_Strategy_Factory::muxed_strategy_lock_type_ [private]

Type of lock for the muxed_strategy.

Lock_Type TAO_Default_Client_Strategy_Factory::profile_lock_type_ [private]

the lock type for forwarding IIOP Profile

int TAO_Default_Client_Strategy_Factory::rd_table_size_ [private]

Size of the reply dispatcher table.

Transport_Mux_Strategy TAO_Default_Client_Strategy_Factory::transport_mux_strategy_ [private]

The client Request Mux Strategy.

Wait_Strategy TAO_Default_Client_Strategy_Factory::wait_strategy_ [private]

The wait-for-reply strategy.

---

The documentation for this class was generated from the following files:

• default_client.h
• default_client.cpp

---
