ACE_RMCast_Partial_Message Class Reference

#include <RMCast_Partial_Message.h>

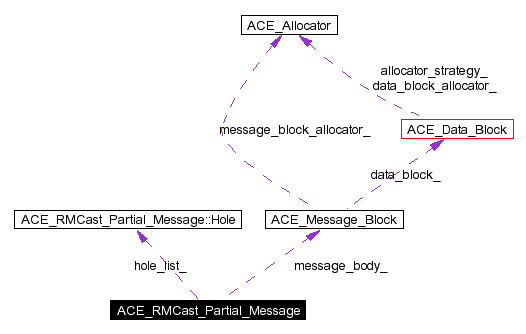

Collaboration diagram for ACE_RMCast_Partial_Message:

[legend]List of all members.

Public Methods
	ACE_RMCast_Partial_Message (ACE_UINT32 message_size)
	Constructor, reserve enough memory for the complete message.
	~ACE_RMCast_Partial_Message (void)
	Destructor.
int	fragment_received (ACE_UINT32 message_size, ACE_UINT32 offset, ACE_Message_Block *mb)
	Process a fragment.
int	is_complete (void) const
	Return 1 if the message is complete.
ACE_Message_Block *	message_body (void)
Private Methods
int	insert_hole (size_t i, ACE_UINT32 start, ACE_UINT32 end)
	Insert a new hole into the list.
int	remove_hole (size_t i)
	Remove a hole from the list.
Private Attributes
ACE_Message_Block	message_body_
	Maintain the message storage.
Hole *	hole_list_
size_t	max_hole_count_
size_t	hole_count_

---

Detailed Description

This class provides temporary storage for the fragments as they are received in the ACE_RMCast_Reassembly module. It also keeps track of what portions of the message are still missing.

---

Constructor & Destructor Documentation

ACE_RMCast_Partial_Message::ACE_RMCast_Partial_Message (  ACE_UINT32    message_size )

Constructor, reserve enough memory for the complete message.

ACE_RMCast_Partial_Message::~ACE_RMCast_Partial_Message (  void    )

Destructor.

---

Member Function Documentation

int ACE_RMCast_Partial_Message::fragment_received (  ACE_UINT32    message_size, ACE_UINT32    offset, ACE_Message_Block *    mb )

Process a fragment. A fragment starting at <offset> has been received, copy the fragment contents and update the list of holes.

int ACE_RMCast_Partial_Message::insert_hole (  size_t    i, ACE_UINT32    start, ACE_UINT32    end )  [private]

Insert a new hole into the list. The class keeps an array to represent the missing portions of the message. This method inserts a new hole, i.e. a new element in the array at index . The <start> and <end> arguments represent the offsets of the missing portion of the message.

ACE_INLINE int ACE_RMCast_Partial_Message::is_complete (  void    )  const

Return 1 if the message is complete.

ACE_INLINE ACE_Message_Block * ACE_RMCast_Partial_Message::message_body (  void    )

Return the body of the message, the memory is *not* owned by the caller

int ACE_RMCast_Partial_Message::remove_hole (  size_t    i )  [private]

Remove a hole from the list.

---

Member Data Documentation

size_t ACE_RMCast_Partial_Message::hole_count_ [private]

Hole* ACE_RMCast_Partial_Message::hole_list_ [private]

size_t ACE_RMCast_Partial_Message::max_hole_count_ [private]

ACE_Message_Block ACE_RMCast_Partial_Message::message_body_ [private]

Maintain the message storage.

---

The documentation for this class was generated from the following files:

• RMCast_Partial_Message.h
• RMCast_Partial_Message.cpp
• RMCast_Partial_Message.i

---
