ACE_RMCast_IO_UDP Class Reference

#include <RMCast_IO_UDP.h>

Inheritance diagram for ACE_RMCast_IO_UDP:

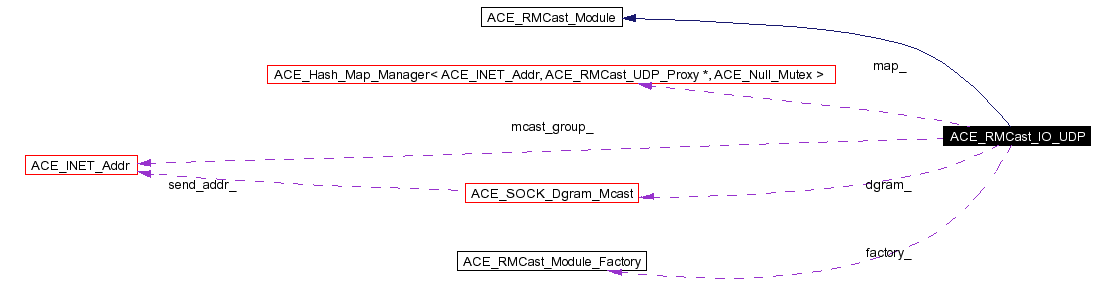

[legend]Collaboration diagram for ACE_RMCast_IO_UDP:


Public Methods
	ACE_RMCast_IO_UDP (ACE_RMCast_Module_Factory *factory)
	Constructor.
	~ACE_RMCast_IO_UDP (void)
	Destructor.
int	init (const ACE_INET_Addr &mcast_group, const ACE_Addr &local, int protocol_family=PF_INET, int protocol=0, int reuse_addr=0)
	Open the internal socket, but only to send multicast data.
int	subscribe (const ACE_INET_Addr &mcast_addr, int reuse_addr=1, const ACE_TCHAR *net_if=0, int protocol_family=PF_INET, int protocol=0)
	Join a new multicast group.
int	handle_events (ACE_Time_Value *tv=0)
int	handle_input (ACE_HANDLE h)
	There is data to read, read it and process it.
ACE_HANDLE	get_handle (void) const
	Obtain the handle for the underlying socket.
virtual int	data (ACE_RMCast::Data &)
	Push data through the stack.
virtual int	poll (ACE_RMCast::Poll &)
	Push a polling request through the stack.
virtual int	ack_join (ACE_RMCast::Ack_Join &)
	Push a message to ack a join request through the stack.
virtual int	ack_leave (ACE_RMCast::Ack_Leave &)
	Push a message to ack a leave request through the stack.
virtual int	ack (ACE_RMCast::Ack &)
	Push an ack mesage through the stack.
virtual int	join (ACE_RMCast::Join &)
	Push a join message through the stack.
virtual int	leave (ACE_RMCast::Leave &)
	Push a leave message through the stack.

int	send_data (ACE_RMCast::Data &, const ACE_INET_Addr &)
	Send the message to the ACE_INET_Addr argument.
int	send_poll (ACE_RMCast::Poll &, const ACE_INET_Addr &)
	Send the message to the ACE_INET_Addr argument.
int	send_ack_join (ACE_RMCast::Ack_Join &, const ACE_INET_Addr &)
	Send the message to the ACE_INET_Addr argument.
int	send_ack_leave (ACE_RMCast::Ack_Leave &, const ACE_INET_Addr &)
	Send the message to the ACE_INET_Addr argument.
int	send_ack (ACE_RMCast::Ack &, const ACE_INET_Addr &)
	Send the message to the ACE_INET_Addr argument.
int	send_join (ACE_RMCast::Join &, const ACE_INET_Addr &)
	Send the message to the ACE_INET_Addr argument.
int	send_leave (ACE_RMCast::Leave &, const ACE_INET_Addr &)
	Send the message to the ACE_INET_Addr argument.
Private Types
typedef ACE_Hash_Map_Manager< ACE_INET_Addr, ACE_RMCast_UDP_Proxy *, ACE_Null_Mutex >	Map
	Use a Hash_Map to maintain the collection of proxies.
Private Methods
ACE_RMCast_UDP_Proxy *	allocate_and_bind_proxy (ACE_RMCast_Module *module, const ACE_INET_Addr &)
Private Attributes
ACE_RMCast_Module_Factory *	factory_
	The factory used to create the modules attached to each proxy.
ACE_INET_Addr	mcast_group_
	The multicast group we subscribe and send to.
ACE_SOCK_Dgram_Mcast	dgram_
	The socket used to receive and send data.
Map	map_
	The collection of proxies.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager<ACE_INET_Addr,ACE_RMCast_UDP_Proxy*,ACE_Null_Mutex> ACE_RMCast_IO_UDP::Map [private]

Use a Hash_Map to maintain the collection of proxies.

Constructor & Destructor Documentation

ACE_INLINE ACE_RMCast_IO_UDP::ACE_RMCast_IO_UDP ( ACE_RMCast_Module_Factory * factory )

Constructor.
The <factory> argument is used to create the modules for each proxy that process incoming messages. The class does *not* assume ownership of <factory>, the caller owns it. But it does assume ownership of the modules returned by the factory, and it may ask the factory to release them eventually.

ACE_RMCast_IO_UDP::~ACE_RMCast_IO_UDP ( void )

Destructor.

Member Function Documentation

int ACE_RMCast_IO_UDP::ack ( ACE_RMCast::Ack & ) [virtual]

Push an ack mesage through the stack.

Reimplemented from ACE_RMCast_Module.

int ACE_RMCast_IO_UDP::ack_join ( ACE_RMCast::Ack_Join & ) [virtual]

Push a message to ack a join request through the stack.

Reimplemented from ACE_RMCast_Module.

int ACE_RMCast_IO_UDP::ack_leave ( ACE_RMCast::Ack_Leave & ) [virtual]

Push a message to ack a leave request through the stack.

Reimplemented from ACE_RMCast_Module.

ACE_INLINE ACE_RMCast_UDP_Proxy * ACE_RMCast_IO_UDP::allocate_and_bind_proxy ( ACE_RMCast_Module * module,

const ACE_INET_Addr &

) [private]

int ACE_RMCast_IO_UDP::data ( ACE_RMCast::Data & ) [virtual]

Push data through the stack.

Reimplemented from ACE_RMCast_Module.

ACE_HANDLE ACE_RMCast_IO_UDP::get_handle ( void ) const

Obtain the handle for the underlying socket.

int ACE_RMCast_IO_UDP::handle_events ( ACE_Time_Value * tv = 0 )

Wait for events for the period <tv>. If <tv> is zero it blocks forever.

int ACE_RMCast_IO_UDP::handle_input ( ACE_HANDLE h )

There is data to read, read it and process it.

int ACE_RMCast_IO_UDP::init ( const ACE_INET_Addr & mcast_group,

const ACE_Addr & local,

int protocol_family = PF_INET,

int protocol = 0,

int reuse_addr = 0

)

Open the internal socket, but only to send multicast data.
It is not clear to me if this is a valid configuration. Maybe it would be a problem to expose two separate, incompatible interfaces (check the subscribe() method). However, the alternative would be to implement almost identical class for outgoing and incoming UDP I/O

int ACE_RMCast_IO_UDP::join ( ACE_RMCast::Join & ) [virtual]

Push a join message through the stack.

Reimplemented from ACE_RMCast_Module.

int ACE_RMCast_IO_UDP::leave ( ACE_RMCast::Leave & ) [virtual]

Push a leave message through the stack.

Reimplemented from ACE_RMCast_Module.

int ACE_RMCast_IO_UDP::poll ( ACE_RMCast::Poll & ) [virtual]

Push a polling request through the stack.

Reimplemented from ACE_RMCast_Module.

int ACE_RMCast_IO_UDP::send_ack ( ACE_RMCast::Ack & ,

const ACE_INET_Addr &

)

Send the message to the ACE_INET_Addr argument.
These methods are used in the implementation of the ACE_RMCast_UDP_Proxy objects and the implementation of the inherited ACE_RMCast_Module methods in this class.

int ACE_RMCast_IO_UDP::send_ack_join ( ACE_RMCast::Ack_Join & ,

const ACE_INET_Addr &

)

Send the message to the ACE_INET_Addr argument.
These methods are used in the implementation of the ACE_RMCast_UDP_Proxy objects and the implementation of the inherited ACE_RMCast_Module methods in this class.

int ACE_RMCast_IO_UDP::send_ack_leave ( ACE_RMCast::Ack_Leave & ,

const ACE_INET_Addr &

)

Send the message to the ACE_INET_Addr argument.
These methods are used in the implementation of the ACE_RMCast_UDP_Proxy objects and the implementation of the inherited ACE_RMCast_Module methods in this class.

int ACE_RMCast_IO_UDP::send_data ( ACE_RMCast::Data & ,

const ACE_INET_Addr &

)

Send the message to the ACE_INET_Addr argument.
These methods are used in the implementation of the ACE_RMCast_UDP_Proxy objects and the implementation of the inherited ACE_RMCast_Module methods in this class.

int ACE_RMCast_IO_UDP::send_join ( ACE_RMCast::Join & ,

const ACE_INET_Addr &

)

Send the message to the ACE_INET_Addr argument.
These methods are used in the implementation of the ACE_RMCast_UDP_Proxy objects and the implementation of the inherited ACE_RMCast_Module methods in this class.

int ACE_RMCast_IO_UDP::send_leave ( ACE_RMCast::Leave & ,

const ACE_INET_Addr &

)

Send the message to the ACE_INET_Addr argument.
These methods are used in the implementation of the ACE_RMCast_UDP_Proxy objects and the implementation of the inherited ACE_RMCast_Module methods in this class.

int ACE_RMCast_IO_UDP::send_poll ( ACE_RMCast::Poll & ,

const ACE_INET_Addr &

)

Send the message to the ACE_INET_Addr argument.
These methods are used in the implementation of the ACE_RMCast_UDP_Proxy objects and the implementation of the inherited ACE_RMCast_Module methods in this class.

int ACE_RMCast_IO_UDP::subscribe ( const ACE_INET_Addr & mcast_addr,

int reuse_addr = 1,

const ACE_TCHAR * net_if = 0,

int protocol_family = PF_INET,

int protocol = 0

)

Join a new multicast group.
Start receiving data for the <mcast_addr> multicast group. Please read the documentation of ACE_SOCK_Dgram_Mcast for more details.

Member Data Documentation

ACE_SOCK_Dgram_Mcast ACE_RMCast_IO_UDP::dgram_ [private]

The socket used to receive and send data.

ACE_RMCast_Module_Factory* ACE_RMCast_IO_UDP::factory_ [private]

The factory used to create the modules attached to each proxy.

Map ACE_RMCast_IO_UDP::map_ [private]

The collection of proxies.

ACE_INET_Addr ACE_RMCast_IO_UDP::mcast_group_ [private]

The multicast group we subscribe and send to.

The documentation for this class was generated from the following files:
