TAO_CEC_Reactive_Pulling_Strategy Class Reference

Dispatch using the caller thread. More...

#include <CEC_Reactive_Pulling_Strategy.h>

Inheritance diagram for TAO_CEC_Reactive_Pulling_Strategy:

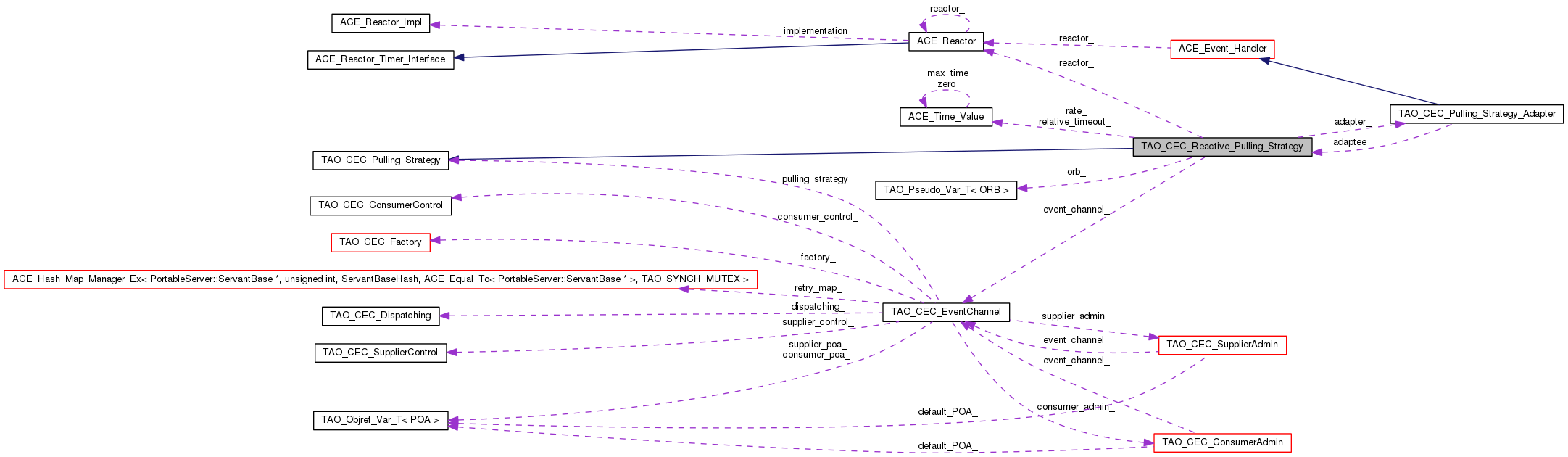

Collaboration diagram for TAO_CEC_Reactive_Pulling_Strategy:

List of all members.

Public Member Functions
	TAO_CEC_Reactive_Pulling_Strategy (const ACE_Time_Value &rate, const ACE_Time_Value &relative_timeout, TAO_CEC_EventChannel *event_channel, CORBA::ORB_ptr orb)
void	handle_timeout (const ACE_Time_Value &tv, const void *arg)
	Receive the timeout from the adapter.
virtual void	activate (void)
virtual void	shutdown (void)
Private Attributes
TAO_CEC_Pulling_Strategy_Adapter	adapter_
	The Adapter for the reactor events.
ACE_Time_Value	rate_
	The polling rate.
ACE_Time_Value	relative_timeout_
	The relative timeout.
TAO_CEC_EventChannel *	event_channel_
	The event channel.
CORBA::ORB_var	orb_
	The ORB.
CORBA::PolicyCurrent_var	policy_current_
	To control the timeout policy in the thread.
CORBA::PolicyList	policy_list_
	Precomputed policy list to the set timeout.
ACE_Reactor *	reactor_
	The ORB reactor.

---

Detailed Description

Dispatch using the caller thread.

The events are dispatched in FIFO ordering, using the invoking thread to push the event to the consumer.

---

Constructor & Destructor Documentation

TAO_CEC_Reactive_Pulling_Strategy::TAO_CEC_Reactive_Pulling_Strategy	(	const ACE_Time_Value &	rate,
		const ACE_Time_Value &	relative_timeout,
		TAO_CEC_EventChannel *	event_channel,
		CORBA::ORB_ptr	orb
	)

The scheduler is used to find the range of priorities and similar info.

---

Member Function Documentation

void TAO_CEC_Reactive_Pulling_Strategy::activate

(

void

)

[virtual]

Initialize all the data structures, activate any internal threads, etc.

Implements TAO_CEC_Pulling_Strategy.

void TAO_CEC_Reactive_Pulling_Strategy::handle_timeout	(	const ACE_Time_Value &	tv,
		const void *	arg
	)

Receive the timeout from the adapter.

void TAO_CEC_Reactive_Pulling_Strategy::shutdown

(

void

)

[virtual]

Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implements TAO_CEC_Pulling_Strategy.

---

Member Data Documentation

TAO_CEC_Pulling_Strategy_Adapter TAO_CEC_Reactive_Pulling_Strategy::adapter_ [private]

The Adapter for the reactor events.

TAO_CEC_EventChannel* TAO_CEC_Reactive_Pulling_Strategy::event_channel_ [private]

The event channel.

CORBA::ORB_var TAO_CEC_Reactive_Pulling_Strategy::orb_ [private]

The ORB.

CORBA::PolicyCurrent_var TAO_CEC_Reactive_Pulling_Strategy::policy_current_ [private]

To control the timeout policy in the thread.

CORBA::PolicyList TAO_CEC_Reactive_Pulling_Strategy::policy_list_ [private]

Precomputed policy list to the set timeout.

ACE_Time_Value TAO_CEC_Reactive_Pulling_Strategy::rate_ [private]

The polling rate.

ACE_Reactor* TAO_CEC_Reactive_Pulling_Strategy::reactor_ [private]

The ORB reactor.

ACE_Time_Value TAO_CEC_Reactive_Pulling_Strategy::relative_timeout_ [private]

The relative timeout.

---

The documentation for this class was generated from the following files:

• CEC_Reactive_Pulling_Strategy.h
• CEC_Reactive_Pulling_Strategy.cpp
