TAO's MIOP resource factory. More...

#include <miop_resource.h>

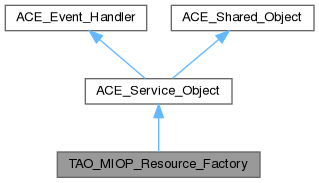

Inheritance diagram for TAO_MIOP_Resource_Factory:

[legend]

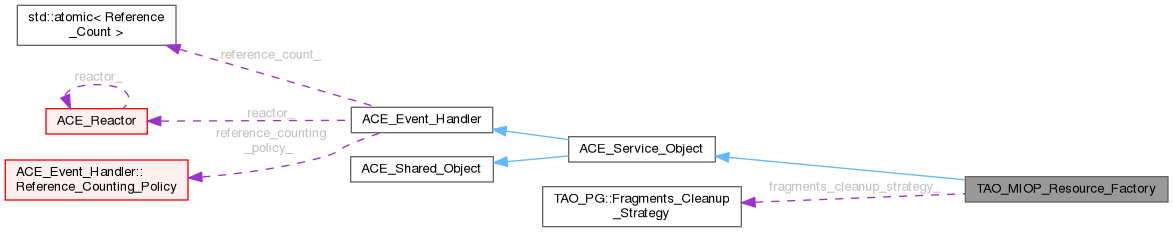

Collaboration diagram for TAO_MIOP_Resource_Factory:

[legend]

Public Member Functions
	TAO_MIOP_Resource_Factory ()
	Constructor.

virtual	~TAO_MIOP_Resource_Factory ()
	Destructor.

Service Configurator Hooks
virtual int	init (int argc, ACE_TCHAR *argv[])
	Dynamic linking hook.

Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)

virtual	~ACE_Service_Object ()

virtual int	suspend ()

virtual int	resume ()

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default

virtual ACE_HANDLE	get_handle () const

virtual void	set_handle (ACE_HANDLE)

virtual int	priority () const

virtual void	priority (int priority)

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler ()

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor () const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const

virtual Reference_Count	add_reference ()

virtual Reference_Count	remove_reference ()

Reference_Counting_Policy &	reference_counting_policy ()

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object ()

virtual	~ACE_Shared_Object ()

virtual int	fini ()

virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Member Accessors
enum	Fragments_Cleanup_Strategy_Type { TAO_MIOP_CLEANUP_TIME_BOUND , TAO_MIOP_CLEANUP_NUMBER_BOUND , TAO_MIOP_CLEANUP_MEMORY_BOUND }
	Maximum number of fragments. More...

Fragments_Cleanup_Strategy_Type	fragments_cleanup_strategy_type_
	Maximum number of fragments.

int	fragments_cleanup_bound_
	Maximum number of fragments.

TAO_PG::Fragments_Cleanup_Strategy *	fragments_cleanup_strategy_
	Maximum number of fragments.

u_long	max_fragments_
	Maximum number of fragments.

u_long	max_fragment_size_
	Maximum Size of a single fragment.

u_long	max_fragment_rate_
	Time required for transfering one maximum sized fragment.

u_long	send_hi_water_mark_
	Number of bytes that can be sent without delay.

u_long	send_buffer_size_
	Get the desired socket send buffer's size in bytes.

u_long	receive_buffer_size_
	Get the desired socket receive buffer's size in bytes.

bool	enable_throttling_
	Get the client-side transmission rate throttling enable flag.

bool	enable_eager_dequeue_
	Get the server-side eager complete message dequeuing enable flag.

TAO_PG::Fragments_Cleanup_Strategy *	fragments_cleanup_strategy () const
	Maximum number of fragments.

u_long	max_fragments () const
	Get Maximum number of fragments allowed.

u_long	max_fragment_size () const
	Get MTU value (roughly).

u_long	max_fragment_rate () const
	Get time required for transfering one maximum sized fragment.

u_long	send_hi_water_mark () const
	Get number of bytes that can be sent without delay.

u_long	send_buffer_size () const
	Get the desired socket transmit buffer's size in bytes (Zero is unspecified).

u_long	receive_buffer_size () const
	Get the desired socket receive buffer's size in bytes (Zero is unspecified).

bool	enable_throttling () const
	Get the client-side transmission rate throttling enable flag.

bool	enable_eager_dequeue () const
	Get the server-side eager complete message dequeuing enable flag.

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Public Attributes inherited from ACE_Service_Object
	ACE_ALLOC_HOOK_DECLARE

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

TAO's MIOP resource factory.

Using a <{resource source specifier}> as a discriminator, the factory can return resource instances which are, e.g., global, stored in thread-specific storage, stored in shared memory, etc.

Member Enumeration Documentation

◆ Fragments_Cleanup_Strategy_Type

enum TAO_MIOP_Resource_Factory::Fragments_Cleanup_Strategy_Type

private

Maximum number of fragments.

Enumerator
TAO_MIOP_CLEANUP_TIME_BOUND
TAO_MIOP_CLEANUP_NUMBER_BOUND
TAO_MIOP_CLEANUP_MEMORY_BOUND

Constructor & Destructor Documentation

◆ TAO_MIOP_Resource_Factory()

TAO_MIOP_Resource_Factory::TAO_MIOP_Resource_Factory ( )

Constructor.

◆ ~TAO_MIOP_Resource_Factory()

TAO_MIOP_Resource_Factory::~TAO_MIOP_Resource_Factory ( )

virtual

Destructor.

Member Function Documentation

◆ enable_eager_dequeue()

bool TAO_MIOP_Resource_Factory::enable_eager_dequeue ( ) const

Get the server-side eager complete message dequeuing enable flag.

◆ enable_throttling()

bool TAO_MIOP_Resource_Factory::enable_throttling ( ) const

Get the client-side transmission rate throttling enable flag.

◆ fragments_cleanup_strategy()

TAO_PG::Fragments_Cleanup_Strategy * TAO_MIOP_Resource_Factory::fragments_cleanup_strategy ( ) const

Maximum number of fragments.

◆ init()

int TAO_MIOP_Resource_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[] )

virtual

Dynamic linking hook.

Reimplemented from ACE_Shared_Object.

◆ max_fragment_rate()

u_long TAO_MIOP_Resource_Factory::max_fragment_rate ( ) const

Get time required for transfering one maximum sized fragment.

◆ max_fragment_size()

u_long TAO_MIOP_Resource_Factory::max_fragment_size ( ) const

Get MTU value (roughly).

◆ max_fragments()

u_long TAO_MIOP_Resource_Factory::max_fragments ( ) const

Get Maximum number of fragments allowed.

◆ receive_buffer_size()

u_long TAO_MIOP_Resource_Factory::receive_buffer_size ( ) const

Get the desired socket receive buffer's size in bytes (Zero is unspecified).

◆ send_buffer_size()

u_long TAO_MIOP_Resource_Factory::send_buffer_size ( ) const

Get the desired socket transmit buffer's size in bytes (Zero is unspecified).

◆ send_hi_water_mark()

u_long TAO_MIOP_Resource_Factory::send_hi_water_mark ( ) const

Get number of bytes that can be sent without delay.

Member Data Documentation

◆ enable_eager_dequeue_

bool TAO_MIOP_Resource_Factory::enable_eager_dequeue_

private

Get the server-side eager complete message dequeuing enable flag.

◆ enable_throttling_

bool TAO_MIOP_Resource_Factory::enable_throttling_

private

Get the client-side transmission rate throttling enable flag.

◆ fragments_cleanup_bound_

int TAO_MIOP_Resource_Factory::fragments_cleanup_bound_

private

Maximum number of fragments.

◆ fragments_cleanup_strategy_

TAO_PG::Fragments_Cleanup_Strategy* TAO_MIOP_Resource_Factory::fragments_cleanup_strategy_

mutableprivate

Maximum number of fragments.

◆ fragments_cleanup_strategy_type_

Fragments_Cleanup_Strategy_Type TAO_MIOP_Resource_Factory::fragments_cleanup_strategy_type_

private

Maximum number of fragments.

◆ max_fragment_rate_

u_long TAO_MIOP_Resource_Factory::max_fragment_rate_

private

Time required for transfering one maximum sized fragment.

◆ max_fragment_size_

u_long TAO_MIOP_Resource_Factory::max_fragment_size_

private

Maximum Size of a single fragment.

◆ max_fragments_

u_long TAO_MIOP_Resource_Factory::max_fragments_

private

Maximum number of fragments.

◆ receive_buffer_size_

u_long TAO_MIOP_Resource_Factory::receive_buffer_size_

private

Get the desired socket receive buffer's size in bytes.

◆ send_buffer_size_

u_long TAO_MIOP_Resource_Factory::send_buffer_size_

private

Get the desired socket send buffer's size in bytes.

◆ send_hi_water_mark_

u_long TAO_MIOP_Resource_Factory::send_hi_water_mark_

private

Number of bytes that can be sent without delay.

The documentation for this class was generated from the following files:
