#include <ETCL_Filter.h>

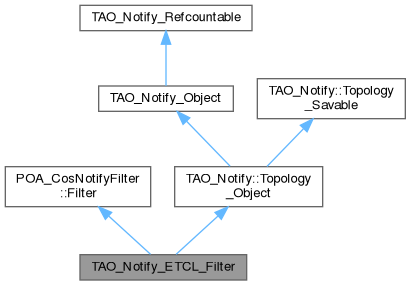

Inheritance diagram for TAO_Notify_ETCL_Filter:

[legend]

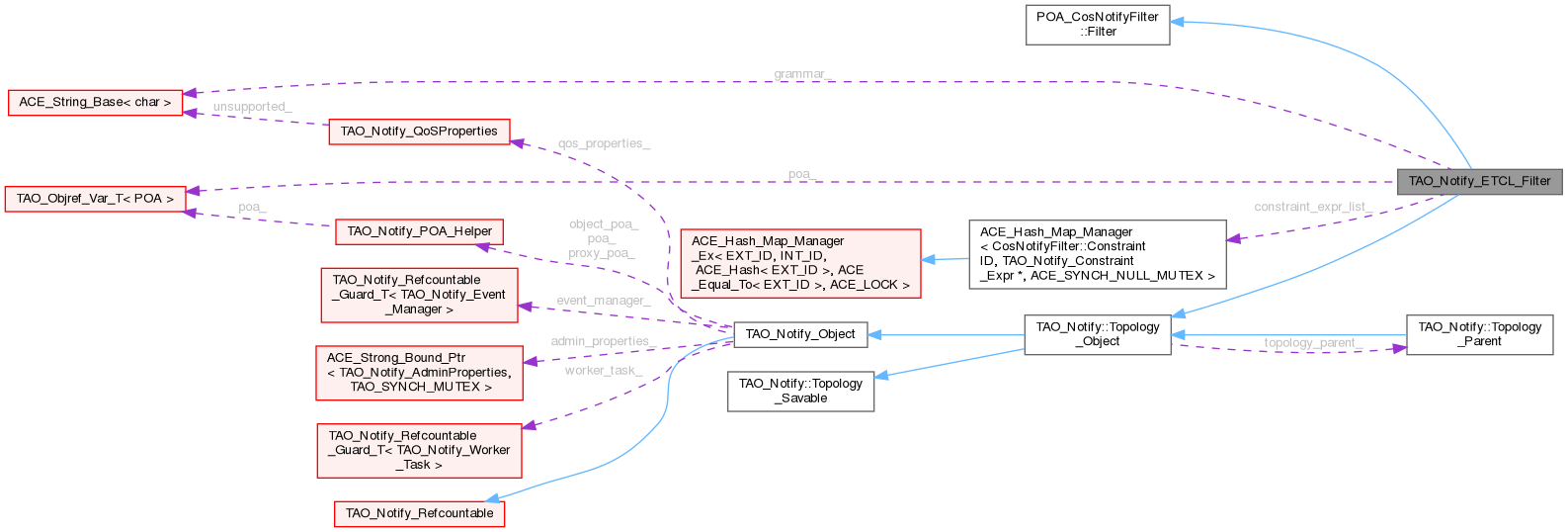

Collaboration diagram for TAO_Notify_ETCL_Filter:

[legend]

Public Member Functions
	TAO_Notify_ETCL_Filter (PortableServer::POA_ptr poa, const char *constraint_grammar, const TAO_Notify_Object::ID &id)
	Constructor.

virtual	~TAO_Notify_ETCL_Filter ()
	Destructor.

virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)

void	load_attrs (const TAO_Notify::NVPList &attrs)

TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it.

Public Member Functions inherited from TAO_Notify::Topology_Object
	Topology_Object ()
	The constructor.

virtual	~Topology_Object ()
	The destructor.

virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>.

virtual TAO_Notify_Object::ID	get_id () const
	Find the id associated with topology object.

void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object.

bool	is_changed () const
	Is there an unsaved change for this object or its children?

Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object ()
	Destructor.

ID	id () const
	This Object's ID.

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate.

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with existing id.

void	deactivate ()
	Deactivate.

bool	has_shutdown ()
	Have we been shutdown. returns true if shutdown.

void	execute_task (TAO_Notify_Method_Request &method_request)

CORBA::Object_ptr	ref ()
	Get CORBA Ref.

virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties.

CosNotification::QoSProperties *	get_qos ()
	Get the QoS Properties.

bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const

virtual TAO_Notify_Timer *	timer ()
	Obtain the Timer manager associated with this object.

TAO_Notify_Event_Manager &	event_manager ()
	Accessor for the Event Manager.

virtual int	shutdown ()
	Shutdown. Returns 1 if the shutdown was already run once before.

TAO_Notify_Worker_Task *	get_worker_task ()
	Allow access to the underlying worker task.

Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable ()
	Constructor.

virtual	~TAO_Notify_Refcountable ()

CORBA::ULong	_incr_refcnt ()

CORBA::ULong	_decr_refcnt ()

Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable ()
	Destructor.

virtual void	reconnect ()

Protected Member Functions
virtual char *	constraint_grammar ()

virtual CosNotifyFilter::ConstraintInfoSeq *	add_constraints (const CosNotifyFilter::ConstraintExpSeq &constraint_list)

virtual void	modify_constraints (const CosNotifyFilter::ConstraintIDSeq &del_list, const CosNotifyFilter::ConstraintInfoSeq &modify_list)

virtual CosNotifyFilter::ConstraintInfoSeq *	get_constraints (const CosNotifyFilter::ConstraintIDSeq &id_list)

virtual CosNotifyFilter::ConstraintInfoSeq *	get_all_constraints ()

virtual void	remove_all_constraints ()

virtual void	destroy ()

virtual CORBA::Boolean	match (const CORBA::Any &filterable_data)

virtual CORBA::Boolean	match_structured (const CosNotification::StructuredEvent &filterable_data)

virtual CORBA::Boolean	match_typed (const CosNotification::PropertySeq &filterable_data)

virtual CosNotifyFilter::CallbackID	attach_callback (CosNotifyComm::NotifySubscribe_ptr callback)

virtual void	detach_callback (CosNotifyFilter::CallbackID callback)

virtual CosNotifyFilter::CallbackIDSeq *	get_callbacks ()

Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool	is_persistent () const
	Should this object be saved?

bool	self_change ()
	Method to report change in this object.

Topology_Parent *	topology_parent () const
	pointer to our topological parent

bool	send_change ()
	Handle details of propagating change.

bool	send_deletion_change ()
	Handle details of propagating change for a deleted object.

Protected Member Functions inherited from TAO_Notify_Object
	TAO_Notify_Object ()
	Constructor.

void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>.

void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object.

void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas.

void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa.

TAO_Notify_POA_Helper *	proxy_poa ()
	Accessor for the proxy_poa_.

TAO_Notify_POA_Helper *	object_poa ()
	Accessor for the object_poa_.

TAO_Notify_POA_Helper *	poa ()
	Get the POA assigned to us.

void	set_event_manager (TAO_Notify_Event_Manager *event_manager)

void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)

TAO_Notify_AdminProperties &	admin_properties ()
	Accessor for the Admin Properties.

virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)

virtual void	save_attrs (TAO_Notify::NVPList &attrs)

Private Types
typedef ACE_Hash_Map_Manager< CosNotifyFilter::ConstraintID, TAO_Notify_Constraint_Expr *, ACE_SYNCH_NULL_MUTEX >	CONSTRAINT_EXPR_LIST
	A list of the constraints stored in this filter.

Private Member Functions
virtual void	release ()
	Release this object.

void	add_constraints_i (const CosNotifyFilter::ConstraintInfoSeq &constraint_info_seq)

void	add_constraint_i (const CosNotifyFilter::ConstraintInfo &constraint, CosNotifyFilter::ConstraintID cnstr_id=0)

TAO_Notify_Constraint_Expr *	add_constraint_i (CosNotifyFilter::ConstraintID cnstr_id)

void	remove_all_constraints_i ()

Private Attributes
TAO_SYNCH_MUTEX	lock_
	Lock to serialize access to data members.

CORBA::Long	constraint_expr_ids_
	Id generator for ConstraintInfo's.

CONSTRAINT_EXPR_LIST	constraint_expr_list_

PortableServer::POA_var	poa_

TAO_Notify_Object::ID	id_

ACE_CString	grammar_

Additional Inherited Members
Public Types inherited from TAO_Notify_Object
typedef CORBA::Long	ID
	Id for Objects.

Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Refcountable >	Ptr

Protected Attributes inherited from TAO_Notify::Topology_Object
bool	self_changed_
	true if this object changed since last save_persistent

bool	children_changed_
	true of any of this object's children changed since last save_persistent

Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;.

Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members.

TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables.

Member Typedef Documentation

◆ CONSTRAINT_EXPR_LIST

typedef ACE_Hash_Map_Manager<CosNotifyFilter::ConstraintID, TAO_Notify_Constraint_Expr*, ACE_SYNCH_NULL_MUTEX> TAO_Notify_ETCL_Filter::CONSTRAINT_EXPR_LIST

private

A list of the constraints stored in this filter.

Constructor & Destructor Documentation

◆ TAO_Notify_ETCL_Filter()

TAO_Notify_ETCL_Filter::TAO_Notify_ETCL_Filter	(	PortableServer::POA_ptr	poa,
		const char *	constraint_grammar,
		const TAO_Notify_Object::ID &	id )

Constructor.

◆ ~TAO_Notify_ETCL_Filter()

TAO_Notify_ETCL_Filter::~TAO_Notify_ETCL_Filter ( )

virtual

Destructor.

Member Function Documentation

◆ add_constraint_i() [1/2]

void TAO_Notify_ETCL_Filter::add_constraint_i	(	const CosNotifyFilter::ConstraintInfo &	constraint,
		CosNotifyFilter::ConstraintID	cnstr_id = 0 )

private

◆ add_constraint_i() [2/2]

TAO_Notify_Constraint_Expr * TAO_Notify_ETCL_Filter::add_constraint_i ( CosNotifyFilter::ConstraintID cnstr_id )

private

◆ add_constraints()

CosNotifyFilter::ConstraintInfoSeq * TAO_Notify_ETCL_Filter::add_constraints ( const CosNotifyFilter::ConstraintExpSeq & constraint_list )

protectedvirtual

◆ add_constraints_i()

void TAO_Notify_ETCL_Filter::add_constraints_i ( const CosNotifyFilter::ConstraintInfoSeq & constraint_info_seq )

private

◆ attach_callback()

CosNotifyFilter::CallbackID TAO_Notify_ETCL_Filter::attach_callback ( CosNotifyComm::NotifySubscribe_ptr callback )

protectedvirtual

◆ constraint_grammar()

char * TAO_Notify_ETCL_Filter::constraint_grammar ( )

protectedvirtual

◆ destroy()

void TAO_Notify_ETCL_Filter::destroy ( )

protectedvirtual

◆ detach_callback()

void TAO_Notify_ETCL_Filter::detach_callback ( CosNotifyFilter::CallbackID callback )

protectedvirtual

◆ get_all_constraints()

CosNotifyFilter::ConstraintInfoSeq * TAO_Notify_ETCL_Filter::get_all_constraints ( )

protectedvirtual

◆ get_callbacks()

CosNotifyFilter::CallbackIDSeq * TAO_Notify_ETCL_Filter::get_callbacks ( )

protectedvirtual

◆ get_constraints()

CosNotifyFilter::ConstraintInfoSeq * TAO_Notify_ETCL_Filter::get_constraints ( const CosNotifyFilter::ConstraintIDSeq & id_list )

protectedvirtual

◆ load_attrs()

void TAO_Notify_ETCL_Filter::load_attrs ( const TAO_Notify::NVPList & attrs )

virtual

Load our attributes. Each derived type should call the superclass load first before loading its own attributes.

Reimplemented from TAO_Notify_Object.

◆ load_child()

TAO_Notify::Topology_Object * TAO_Notify_ETCL_Filter::load_child	(	const ACE_CString &	type,
		CORBA::Long	id,
		const TAO_Notify::NVPList &	attrs )

virtual

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented from TAO_Notify::Topology_Object.

◆ match()

CORBA::Boolean TAO_Notify_ETCL_Filter::match ( const CORBA::Any & filterable_data )

protectedvirtual

◆ match_structured()

CORBA::Boolean TAO_Notify_ETCL_Filter::match_structured ( const CosNotification::StructuredEvent & filterable_data )

protectedvirtual

◆ match_typed()

CORBA::Boolean TAO_Notify_ETCL_Filter::match_typed ( const CosNotification::PropertySeq & filterable_data )

protectedvirtual

◆ modify_constraints()

void TAO_Notify_ETCL_Filter::modify_constraints	(	const CosNotifyFilter::ConstraintIDSeq &	del_list,
		const CosNotifyFilter::ConstraintInfoSeq &	modify_list )

protectedvirtual

◆ release()

void TAO_Notify_ETCL_Filter::release ( )

privatevirtual

Release this object.

Implements TAO_Notify_Refcountable.

◆ remove_all_constraints()

void TAO_Notify_ETCL_Filter::remove_all_constraints ( )

protectedvirtual

◆ remove_all_constraints_i()

void TAO_Notify_ETCL_Filter::remove_all_constraints_i ( )

private

◆ save_persistent()

void TAO_Notify_ETCL_Filter::save_persistent ( TAO_Notify::Topology_Saver & saver )

virtual

Save our state to a Topology_Saver.

Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change); for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver); } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type); )

Implements TAO_Notify::Topology_Savable.

Member Data Documentation

◆ constraint_expr_ids_

CORBA::Long TAO_Notify_ETCL_Filter::constraint_expr_ids_

private

Id generator for ConstraintInfo's.

◆ constraint_expr_list_

CONSTRAINT_EXPR_LIST TAO_Notify_ETCL_Filter::constraint_expr_list_

private

◆ grammar_

ACE_CString TAO_Notify_ETCL_Filter::grammar_

private

◆ id_

TAO_Notify_Object::ID TAO_Notify_ETCL_Filter::id_

private

◆ lock_

TAO_SYNCH_MUTEX TAO_Notify_ETCL_Filter::lock_

private

Lock to serialize access to data members.

◆ poa_

PortableServer::POA_var TAO_Notify_ETCL_Filter::poa_

private

The documentation for this class was generated from the following files:
