TAO_EC_Dispatching Class Reference

Abstract base class for the dispatching strategies. More...

#include <EC_Dispatching.h>

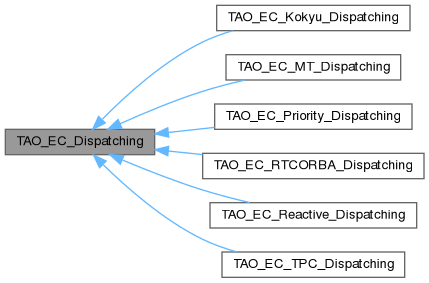

Inheritance diagram for TAO_EC_Dispatching:

Public Member Functions
virtual	~TAO_EC_Dispatching ()
	Destructor...
virtual void	activate ()=0
virtual void	shutdown ()=0
virtual void	push (TAO_EC_ProxyPushSupplier *proxy, RtecEventComm::PushConsumer_ptr consumer, const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)=0
virtual void	push_nocopy (TAO_EC_ProxyPushSupplier *proxy, RtecEventComm::PushConsumer_ptr consumer, RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)=0

Detailed Description

Abstract base class for the dispatching strategies.

The dispatching strategies. The EC may be configured with different dispatching strategies, for instance, it can use a pool of threads to dispatch the events, or a set of queues with threads at different priorities for each queue or can simply push the event to the consumer in FIFO order.

Constructor & Destructor Documentation

~TAO_EC_Dispatching()

TAO_EC_Dispatching::~TAO_EC_Dispatching ( )

virtual

Destructor...

Member Function Documentation

activate()

virtual void TAO_EC_Dispatching::activate ( )

pure virtual

Initialize all the data structures, activate any internal threads, etc.

Implemented in TAO_EC_Kokyu_Dispatching, TAO_EC_MT_Dispatching, TAO_EC_Priority_Dispatching, TAO_EC_Reactive_Dispatching, TAO_EC_RTCORBA_Dispatching, and TAO_EC_TPC_Dispatching.

push()

virtual void TAO_EC_Dispatching::push ( TAO_EC_ProxyPushSupplier * proxy, RtecEventComm::PushConsumer_ptr consumer, const RtecEventComm::EventSet & event, TAO_EC_QOS_Info & qos_info )

pure virtual

The consumer represented by proxy should receive event. It can use the information in qos_info to determine the event priority (among other things).

Implemented in TAO_EC_Kokyu_Dispatching, TAO_EC_MT_Dispatching, TAO_EC_Priority_Dispatching, TAO_EC_Reactive_Dispatching, TAO_EC_RTCORBA_Dispatching, and TAO_EC_TPC_Dispatching.

push_nocopy()

virtual void TAO_EC_Dispatching::push_nocopy ( TAO_EC_ProxyPushSupplier * proxy, RtecEventComm::PushConsumer_ptr consumer, RtecEventComm::EventSet & event, TAO_EC_QOS_Info & qos_info )

pure virtual

Implemented in TAO_EC_Kokyu_Dispatching, TAO_EC_MT_Dispatching, TAO_EC_Priority_Dispatching, TAO_EC_Reactive_Dispatching, TAO_EC_RTCORBA_Dispatching, and TAO_EC_TPC_Dispatching.

shutdown()

virtual void TAO_EC_Dispatching::shutdown ( )

pure virtual

Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implemented in TAO_EC_Kokyu_Dispatching, TAO_EC_MT_Dispatching, TAO_EC_Priority_Dispatching, TAO_EC_Reactive_Dispatching, TAO_EC_RTCORBA_Dispatching, and TAO_EC_TPC_Dispatching.

---

The documentation for this class was generated from the following files:

• EC_Dispatching.h
• EC_Dispatching.cpp
