TAO_Naming_Server Class Reference

Defines a wrapper class that holds the root Naming Context. More...

#include <Naming_Server.h>

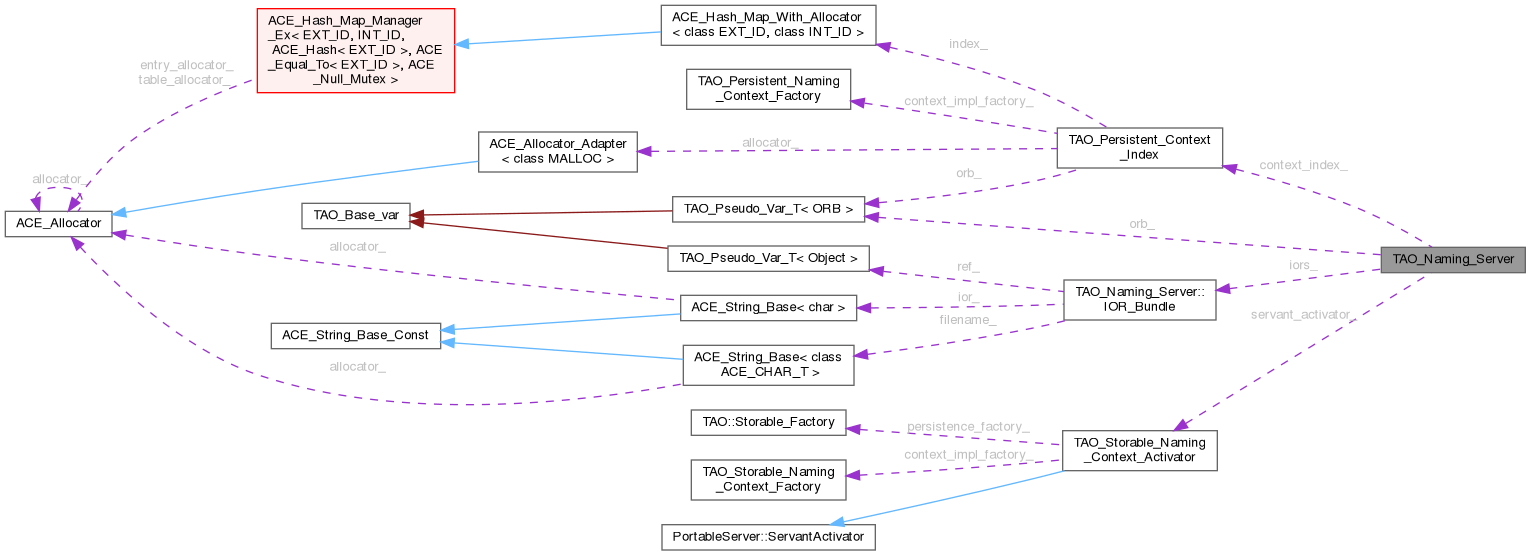

Collaboration diagram for TAO_Naming_Server:

Classes
struct	IOR_Bundle

Public Member Functions
	TAO_Naming_Server (size_t bsize=1)
	Default constructor.
	TAO_Naming_Server (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa, size_t context_size=ACE_DEFAULT_MAP_SIZE, ACE_Time_Value *timeout=0, bool resolve_for_existing_naming_service=true, const ACE_TCHAR *persistence_location=0, void *base_addr=TAO_NAMING_BASE_ADDR, int enable_multicast=1, int use_storable_context=0, int round_trip_timeout=0, int use_round_trip_timeout=0, size_t bsize=1)
int	init (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa, size_t context_size=ACE_DEFAULT_MAP_SIZE, ACE_Time_Value *timeout=0, bool resolve_for_existing_naming_service=true, const ACE_TCHAR *persistence_location=0, void *base_addr=TAO_NAMING_BASE_ADDR, int enable_multicast=1, int use_storable_context=0, int round_trip_timeout=0, int use_round_trip_timeout=0)
virtual int	init_with_orb (int argc, ACE_TCHAR *argv[], CORBA::ORB_ptr orb)
virtual int	fini ()
	Destroy the child POA created in init_with_orb.
virtual	~TAO_Naming_Server ()
	Destructor.
char *	naming_service_ior ()
	Returns the IOR of the naming service.
CosNaming::NamingContext_ptr	operator-> () const
	Returns a <NamingContext_ptr> for the root Naming Context.

Protected Types
enum	Base_IOR_Indexes { ROOT = 0 }

Protected Member Functions
void	assign (size_t ndx, bool take, CORBA::Object_ptr obj)
int	write (size_t ndx) const
virtual int	init_new_naming (CORBA::ORB_ptr orb, PortableServer::POA_ptr root_poa, const ACE_TCHAR *persistence_location, void *base_addr, size_t context_size, int enable_multicast, int use_storable_context, int round_trip_timeout=0, int use_round_trip_timeout=0)
virtual int	parse_args (int argc, ACE_TCHAR *argv[])
	parses the arguments.
int	write_ior_to_file (const char *ior_string, const char *file_name)
	Write the provided ior_string to the file. Return 0 if success.
virtual TAO_Storable_Naming_Context_Factory *	storable_naming_context_factory (size_t context_size)
virtual TAO_Persistent_Naming_Context_Factory *	persistent_naming_context_factory ()
IOR_Bundle *	bundle_at (size_t ndx)
const IOR_Bundle *	bundle_at (size_t ndx) const

Protected Attributes
TAO_IOR_Multicast *	ior_multicast_
	The ior_multicast event handler.
CORBA::ORB_var	orb_
	The ORB.
PortableServer::POA_var	root_poa_
	The Root POA.
PortableServer::POA_var	ns_poa_
	The Naming Service POA.
const ACE_TCHAR *	pid_file_name_
	File to output the process id.
IOR_Bundle *	iors_
size_t	bundle_size_
size_t	context_size_
int	multicast_
	If not zero multicast is enabled.
TAO_Persistent_Context_Index *	context_index_
const ACE_TCHAR *	persistence_dir_
void *	base_address_
int	use_storable_context_
	If not zero use flat file persistence.
int	use_servant_activator_
TAO_Storable_Naming_Context_Activator *	servant_activator_
int	use_redundancy_
int	round_trip_timeout_
	If not zero use round trip timeout policy set to value specified.
int	use_round_trip_timeout_

Detailed Description

Defines a wrapper class that holds the root Naming Context.

This class either finds an existing Naming Service (if the <resolve_for_existing_naming_service> flag is set) or creates one (if resolve_for_existing_naming_service flag isn't set or Naming Service was not found). This class also defines the operator-> so that <NamingContext> functions like <bind>, <unbind> .. can be called directly on a <TAO_Naming_Server> object, and be forwareded to the root Naming Context. This class is intended to simplify programs that want to play the role of a Naming Service server. To simplify programs that want to play the role of Naming Service clients, use <TAO_Naming_Client>. If a Naming Service is created locally, a TAO_IOR_Multicast event handler is created and installed on the ORB's reactor. This event handler allows other clients on the network to discover and use this Naming Service. Event handler listens on a multicast port for messages from clients looking for a Naming Service, and sends back the ior of the root Naming Context. For more information on how this bootstraping through a multicast process works, check out orbsvcs/orbsvcs/TAO_IOR_Multicast.*, implementation of <resolve_initial_references>, and orbsvcs/Naming/README.

Member Enumeration Documentation

Base_IOR_Indexes

enum TAO_Naming_Server::Base_IOR_Indexes

protected

Enumerator
ROOT

Constructor & Destructor Documentation

TAO_Naming_Server() [1/2]

TAO_Naming_Server::TAO_Naming_Server

(

size_t

bsize = 1

)

Default constructor.

TAO_Naming_Server() [2/2]

TAO_Naming_Server::TAO_Naming_Server	(	CORBA::ORB_ptr	orb,
		PortableServer::POA_ptr	poa,
		size_t	context_size = ACE_DEFAULT_MAP_SIZE,
		ACE_Time_Value *	timeout = 0,
		bool	resolve_for_existing_naming_service = true,
		const ACE_TCHAR *	persistence_location = 0,
		void *	base_addr = TAO_NAMING_BASE_ADDR,
		int	enable_multicast = 1,
		int	use_storable_context = 0,
		int	round_trip_timeout = 0,
		int	use_round_trip_timeout = 0,
		size_t	bsize = 1 )

Constructor. Attempts to find an existing Naming Service if resolve_for_existing_naming_service is set to true. If it is false, or no Naming Service was found during a timeout period, create the Naming Service in this process. If creating the Naming Service locally, make the root context of size <context_size>, register it under the <poa>, and make the Naming Service persistent if <persistence_location> is not 0. (<persistence_location> specifies name of the file to use for persistent storage, <base_addr> specifies the address used for memory mapping <persistent_location> file). If <enable_multicast> is not zero then the service will respond to multicast location queries.

~TAO_Naming_Server()

TAO_Naming_Server::~TAO_Naming_Server ( )

virtual

Destructor.

Member Function Documentation

assign()

void TAO_Naming_Server::assign ( size_t ndx, bool take, CORBA::Object_ptr obj )

protected

bundle_at() [1/2]

TAO_Naming_Server::IOR_Bundle * TAO_Naming_Server::bundle_at ( size_t ndx )

protected

bundle_at() [2/2]

const TAO_Naming_Server::IOR_Bundle * TAO_Naming_Server::bundle_at ( size_t ndx ) const

protected

fini()

int TAO_Naming_Server::fini ( )

virtual

Destroy the child POA created in init_with_orb.

init()

int TAO_Naming_Server::init	(	CORBA::ORB_ptr	orb,
		PortableServer::POA_ptr	poa,
		size_t	context_size = ACE_DEFAULT_MAP_SIZE,
		ACE_Time_Value *	timeout = 0,
		bool	resolve_for_existing_naming_service = true,
		const ACE_TCHAR *	persistence_location = 0,
		void *	base_addr = TAO_NAMING_BASE_ADDR,
		int	enable_multicast = 1,
		int	use_storable_context = 0,
		int	round_trip_timeout = 0,
		int	use_round_trip_timeout = 0 )

Initializer. Attempts to find an existing Naming Service if resolve_for_existing_naming_service is set to true. If it is false, or no Naming Service was found during a <timeout> period, create the Naming Service in this process. If creating the Naming Service locally, make the root context of size <context_size>, register it under the <poa>, and make the Naming Service persistent if <persistence_location> is not 0. (<persistence_location> specifies name of the file to use for persistent storage, <base_addr> specifies the address used for memory mapping <persistent_location> file). If <enable_multicast> is not zero then the service will respond to multicast location queries.

init_new_naming()

int TAO_Naming_Server::init_new_naming ( CORBA::ORB_ptr orb, PortableServer::POA_ptr root_poa, const ACE_TCHAR * persistence_location, void * base_addr, size_t context_size, int enable_multicast, int use_storable_context, int round_trip_timeout = 0, int use_round_trip_timeout = 0 )

protectedvirtual

Helper method: create Naming Service locally. Can be specialized to refine how Naming Service components are created and initialized Make the root context of size context_size, register it under the root_poa, and make the Naming Service persistent if <persistence_location> is not 0. (<persistence_location> specifies name of the file to use for persistent storage). If <enable_multicast> is not zero then the service will respond to multicast location queries.

init_with_orb()

int TAO_Naming_Server::init_with_orb ( int argc, ACE_TCHAR * argv[], CORBA::ORB_ptr orb )

virtual

Initialize the Naming Service with the command line arguments and the ORB.

naming_service_ior()

char * TAO_Naming_Server::naming_service_ior

(

)

Returns the IOR of the naming service.

operator->()

CosNaming::NamingContext_ptr TAO_Naming_Server::operator->

(

)

const

Returns a <NamingContext_ptr> for the root Naming Context.

parse_args()

int TAO_Naming_Server::parse_args ( int argc, ACE_TCHAR * argv[] )

protectedvirtual

parses the arguments.

persistent_naming_context_factory()

TAO_Persistent_Naming_Context_Factory * TAO_Naming_Server::persistent_naming_context_factory ( )

protectedvirtual

storable_naming_context_factory()

TAO_Storable_Naming_Context_Factory * TAO_Naming_Server::storable_naming_context_factory ( size_t context_size )

protectedvirtual

write()

int TAO_Naming_Server::write ( size_t ndx ) const

protected

write_ior_to_file()

int TAO_Naming_Server::write_ior_to_file ( const char * ior_string, const char * file_name )

protected

Write the provided ior_string to the file. Return 0 if success.

Member Data Documentation

base_address_

void* TAO_Naming_Server::base_address_

protected

Address to be used for memory mapping Naming Service state file, identified by the <persistence_file_name_>.

bundle_size_

size_t TAO_Naming_Server::bundle_size_

protected

context_index_

TAO_Persistent_Context_Index* TAO_Naming_Server::context_index_

protected

Pointer to the object used to create/initialize the Naming Service when local persistent Naming Service is desired.

context_size_

size_t TAO_Naming_Server::context_size_

protected

Size of the hash_table allocated upon the creation of the Naming Service context (if one is created). Note: all the contexts created under the given context will use the same size for their initial hash table allocations.

ior_multicast_

TAO_IOR_Multicast* TAO_Naming_Server::ior_multicast_

protected

The ior_multicast event handler.

iors_

IOR_Bundle* TAO_Naming_Server::iors_

protected

Although this class only manages the root context info the FT class adds primary/backup IORs for the root context as well as IORs for LB groups as well.

multicast_

int TAO_Naming_Server::multicast_

protected

If not zero multicast is enabled.

ns_poa_

PortableServer::POA_var TAO_Naming_Server::ns_poa_

protected

The Naming Service POA.

orb_

CORBA::ORB_var TAO_Naming_Server::orb_

protected

The ORB.

persistence_dir_

const ACE_TCHAR* TAO_Naming_Server::persistence_dir_

protected

Path to the file to be used to store/read in Naming Service persistent state.

pid_file_name_

const ACE_TCHAR* TAO_Naming_Server::pid_file_name_

protected

File to output the process id.

root_poa_

PortableServer::POA_var TAO_Naming_Server::root_poa_

protected

The Root POA.

round_trip_timeout_

int TAO_Naming_Server::round_trip_timeout_

protected

If not zero use round trip timeout policy set to value specified.

servant_activator_

TAO_Storable_Naming_Context_Activator* TAO_Naming_Server::servant_activator_

protected

Need to retain the servant activator between calls to init_with_orb() and init_new_naming().

use_redundancy_

int TAO_Naming_Server::use_redundancy_

protected

If not zero support redundant naming servers.

use_round_trip_timeout_

int TAO_Naming_Server::use_round_trip_timeout_

protected

use_servant_activator_

int TAO_Naming_Server::use_servant_activator_

protected

If not zero use servant activator that uses flat file persistence.

use_storable_context_

int TAO_Naming_Server::use_storable_context_

protected

If not zero use flat file persistence.

---

The documentation for this class was generated from the following files:

• Naming_Server.h
• Naming_Server.cpp
