TAO_SFP_Object Class Reference

#include <sfp.h>

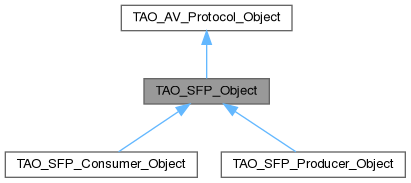

Inheritance diagram for TAO_SFP_Object:

Collaboration diagram for TAO_SFP_Object:

Public Member Functions
	TAO_SFP_Object (TAO_AV_Callback *callback, TAO_AV_Transport *transport)
virtual	~TAO_SFP_Object ()
virtual int	handle_input ()=0
virtual int	send_frame (ACE_Message_Block *frame, TAO_AV_frame_info *frame_info=0)
	send a data frame.
virtual int	send_frame (const iovec *iov, int iovcnt, TAO_AV_frame_info *frame_info=0)
	send a frame in iovecs.
virtual int	send_frame (const char *buf, size_t len)
virtual int	destroy ()
virtual int	set_policies (const TAO_AV_PolicyList &policies)
	set/get policies.
Public Member Functions inherited from TAO_AV_Protocol_Object
	TAO_AV_Protocol_Object ()
	TAO_AV_Protocol_Object (TAO_AV_Callback *callback, TAO_AV_Transport *transport)
	constructor.
virtual	~TAO_AV_Protocol_Object ()
	Destructor.
virtual int	open (TAO_AV_Callback *callback, TAO_AV_Transport *transport)
virtual int	handle_control_input (ACE_Message_Block *control_frame, const ACE_Addr &peer_address)
	Called on a control object.
virtual TAO_AV_PolicyList	get_policies ()
virtual int	start ()
	start/stop the flow.
virtual int	stop ()
virtual void	control_object (TAO_AV_Protocol_Object *object)
	end the stream.
TAO_AV_Transport *	transport ()

Protected Member Functions
ACE_Message_Block *	get_fragment (ACE_Message_Block *&frame, size_t initial_len, size_t &last_mb_orig_len, size_t &last_mb_current_len)

Protected Attributes
CORBA::ULong	sequence_num_
CORBA::ULong	source_id_
CORBA::Long	max_credit_
CORBA::Long	current_credit_
TAO_SFP_Frame_State	state_
Protected Attributes inherited from TAO_AV_Protocol_Object
TAO_AV_Transport *	transport_
TAO_AV_PolicyList	policy_list_
TAO_AV_Callback *	callback_

Constructor & Destructor Documentation

TAO_SFP_Object()

TAO_SFP_Object::TAO_SFP_Object	(	TAO_AV_Callback *	callback,
		TAO_AV_Transport *	transport )

~TAO_SFP_Object()

TAO_SFP_Object::~TAO_SFP_Object ( )

virtual

Member Function Documentation

destroy()

int TAO_SFP_Object::destroy ( )

virtual

Implements TAO_AV_Protocol_Object.

get_fragment()

ACE_Message_Block * TAO_SFP_Object::get_fragment ( ACE_Message_Block *& frame, size_t initial_len, size_t & last_mb_orig_len, size_t & last_mb_current_len )

protected

handle_input()

virtual int TAO_SFP_Object::handle_input ( )

pure virtual

Implements TAO_AV_Protocol_Object.

Implemented in TAO_SFP_Producer_Object, and TAO_SFP_Consumer_Object.

send_frame() [1/3]

int TAO_SFP_Object::send_frame ( ACE_Message_Block * frame, TAO_AV_frame_info * frame_info = 0 )

virtual

send a data frame.

Implements TAO_AV_Protocol_Object.

send_frame() [2/3]

int TAO_SFP_Object::send_frame ( const char * buf, size_t len )

virtual

Implements TAO_AV_Protocol_Object.

send_frame() [3/3]

int TAO_SFP_Object::send_frame ( const iovec * iov, int iovcnt, TAO_AV_frame_info * frame_info = 0 )

virtual

send a frame in iovecs.

Implements TAO_AV_Protocol_Object.

set_policies()

int TAO_SFP_Object::set_policies ( const TAO_AV_PolicyList & policy_list )

virtual

set/get policies.

Reimplemented from TAO_AV_Protocol_Object.

Member Data Documentation

current_credit_

CORBA::Long TAO_SFP_Object::current_credit_

protected

max_credit_

CORBA::Long TAO_SFP_Object::max_credit_

protected

sequence_num_

CORBA::ULong TAO_SFP_Object::sequence_num_

protected

source_id_

CORBA::ULong TAO_SFP_Object::source_id_

protected

state_

TAO_SFP_Frame_State TAO_SFP_Object::state_

protected

---

The documentation for this class was generated from the following files:

• sfp.h
• sfp.cpp
