The "A" side of a streamendpoint. More...

#include <AVStreams_i.h>

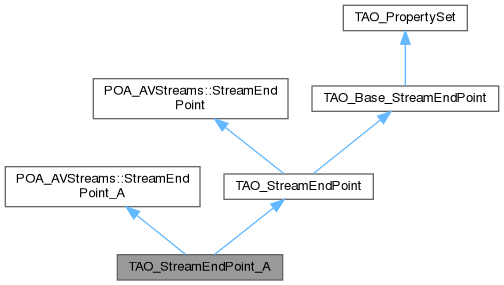

Inheritance diagram for TAO_StreamEndPoint_A:

[legend]

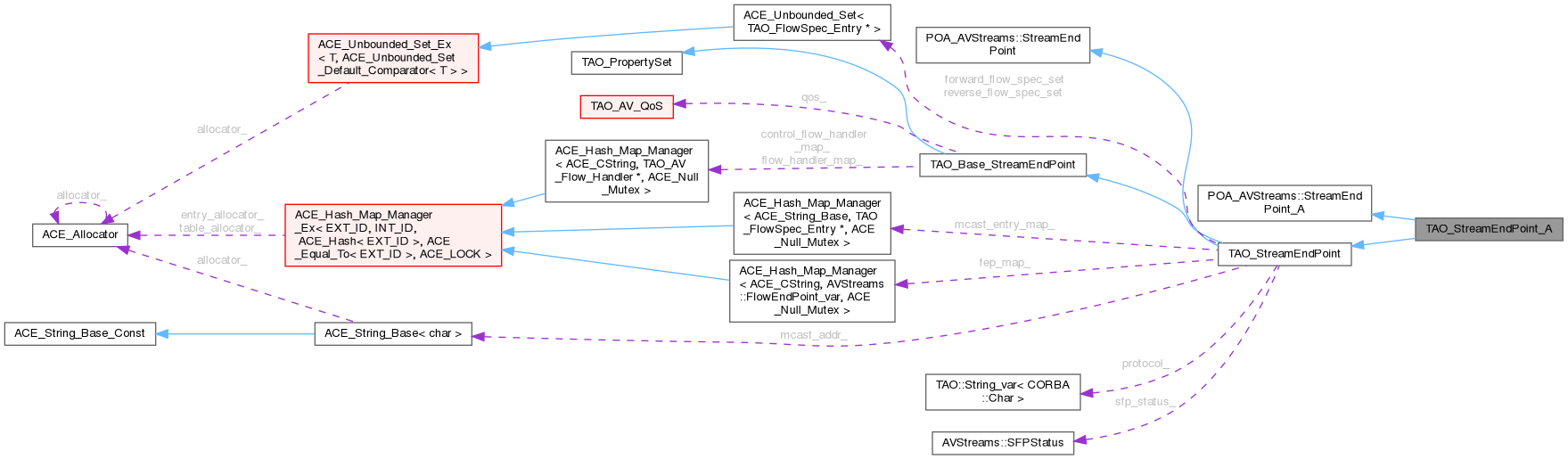

Collaboration diagram for TAO_StreamEndPoint_A:

[legend]

Public Member Functions
	TAO_StreamEndPoint_A ()
	Constructor.

virtual CORBA::Boolean	multiconnect (AVStreams::streamQoS &the_qos, AVStreams::flowSpec &the_spec)
	Used for ATM-style multicast.

virtual CORBA::Boolean	connect_leaf (AVStreams::StreamEndPoint_B_ptr the_ep, AVStreams::streamQoS &the_qos, const AVStreams::flowSpec &the_flows)
	Used for ATM-style multicast.

virtual void	disconnect_leaf (AVStreams::StreamEndPoint_B_ptr the_ep, const AVStreams::flowSpec &theSpec)
	Used to remove a multicast leaf.

virtual	~TAO_StreamEndPoint_A ()
	Destructor.

Public Member Functions inherited from TAO_StreamEndPoint
	TAO_StreamEndPoint ()
	Constructor.

virtual void	stop (const AVStreams::flowSpec &the_spec)
	Stop the stream. Empty the_spec means, for all the flows.

virtual void	start (const AVStreams::flowSpec &the_spec)
	Start the stream, Empty the_spec means, for all the flows.

virtual void	destroy (const AVStreams::flowSpec &the_spec)
	Destroy the stream, Empty the_spec means, for all the flows.

virtual CORBA::Boolean	connect (AVStreams::StreamEndPoint_ptr responder, AVStreams::streamQoS &qos_spec, const AVStreams::flowSpec &the_spec)
	Called by StreamCtrl. responder is the peer to connect to.

virtual CORBA::Boolean	request_connection (AVStreams::StreamEndPoint_ptr initiator, CORBA::Boolean is_mcast, AVStreams::streamQoS &qos, AVStreams::flowSpec &the_spec)

virtual CORBA::Boolean	modify_QoS (AVStreams::streamQoS &new_qos, const AVStreams::flowSpec &the_flows)
	Change the transport qos on a stream.

virtual int	change_qos (AVStreams::streamQoS &new_qos, const AVStreams::flowSpec &the_flows)

virtual CORBA::Boolean	set_protocol_restriction (const AVStreams::protocolSpec &the_pspec)
	Used to restrict the set of protocols.

virtual void	disconnect (const AVStreams::flowSpec &the_spec)
	disconnect the flows

virtual void	set_FPStatus (const AVStreams::flowSpec &the_spec, const char *fp_name, const CORBA::Any &fp_settings)
	Used to control the flow.

virtual CORBA::Object_ptr	get_fep (const char *flow_name)
	Not implemented in the light profile, throws notsupported.

virtual char *	add_fep (CORBA::Object_ptr the_fep)
	Not implemented in the light profile, throws notsupported.

virtual void	remove_fep (const char *fep_name)
	Not implemented in the light profile, throws notsupported.

virtual void	set_negotiator (AVStreams::Negotiator_ptr new_negotiator)
	Used to "attach" a negotiator to the endpoint.

virtual void	set_key (const char *flow_name, const AVStreams::key &the_key)
	Used for public key encryption.

virtual void	set_source_id (CORBA::Long source_id)
	Used to set a unique id for packets sent by this streamendpoint.

virtual	~TAO_StreamEndPoint ()
	Destructor.

CORBA::Boolean	multiconnect (AVStreams::streamQoS &the_qos, AVStreams::flowSpec &the_spec)

Public Member Functions inherited from TAO_Base_StreamEndPoint
	TAO_Base_StreamEndPoint ()

virtual	~TAO_Base_StreamEndPoint ()

virtual int	handle_open ()
	called when streamendpoint is instantiated

virtual int	handle_close ()
	called when streamendpoint is being destructed

virtual int	handle_stop (const AVStreams::flowSpec &the_spec)
	Application needs to define this.

virtual int	handle_start (const AVStreams::flowSpec &the_spec)
	Application needs to define this.

virtual int	handle_destroy (const AVStreams::flowSpec &the_spec)
	Application needs to define this.

virtual CORBA::Boolean	handle_preconnect (AVStreams::flowSpec &the_spec)
	Application needs to define this.

virtual CORBA::Boolean	handle_postconnect (AVStreams::flowSpec &the_spec)
	Application needs to define this.

virtual CORBA::Boolean	handle_connection_requested (AVStreams::flowSpec &the_spec)
	Application needs to define this.

virtual int	get_callback (const char flowname, TAO_AV_Callback &callback)

virtual int	get_control_callback (const char flowname, TAO_AV_Callback &callback)

virtual int	set_protocol_object (const char flowname, TAO_AV_Protocol_Object object)

virtual void	set_flow_handler (const char flowname, TAO_AV_Flow_Handler handler)

virtual void	set_control_flow_handler (const char flowname, TAO_AV_Flow_Handler handler)

TAO_AV_QoS &	qos ()

void	protocol_object_set ()

int	is_protocol_object_set ()

Additional Inherited Members
Protected Member Functions inherited from TAO_StreamEndPoint
char *	add_fep_i (AVStreams::FlowEndPoint_ptr fep)
	Helper methods to implement add_fep()

char *	add_fep_i_add_property (AVStreams::FlowEndPoint_ptr fep)

int	translate_qos (const AVStreams::streamQoS &application_qos, AVStreams::streamQoS &network_qos)
	translate from application level to network level qos.

Protected Attributes inherited from TAO_StreamEndPoint
u_int	flow_count_

u_int	flow_num_
	current flow number used for system generation of flow names.

FlowEndPoint_Map	fep_map_
	hash table for the flownames and its corresponding flowEndpoint reference.

AVStreams::flowSpec	flows_
	sequence of supported flow names.

CORBA::Long	source_id_
	source id used for multicast.

AVStreams::Negotiator_var	negotiator_
	our local negotiator for QoS.

AVStreams::protocolSpec	protocols_
	Our available list of protocols.

CORBA::String_var	protocol_
	Chosen protocol for this streamendpoint based on availableprotocols property.

AVStreams::key	key_
	Key used for encryption.

u_short	mcast_port_

ACE_CString	mcast_addr_

ACE_Hash_Map_Manager< ACE_CString, TAO_FlowSpec_Entry *, ACE_Null_Mutex >	mcast_entry_map_

TAO_AV_FlowSpecSet	forward_flow_spec_set

TAO_AV_FlowSpecSet	reverse_flow_spec_set

AVStreams::StreamEndPoint_var	peer_sep_

const AVStreams::SFPStatus *	sfp_status_

AVStreams::StreamCtrl_var	streamctrl_

Protected Attributes inherited from TAO_Base_StreamEndPoint
TAO_AV_QoS	qos_

Flow_Handler_Map	flow_handler_map_

Flow_Handler_Map	control_flow_handler_map_

int	protocol_object_set_

Detailed Description

The "A" side of a streamendpoint.

Constructor & Destructor Documentation

◆ TAO_StreamEndPoint_A()

TAO_StreamEndPoint_A::TAO_StreamEndPoint_A ( )

Constructor.

◆ ~TAO_StreamEndPoint_A()

TAO_StreamEndPoint_A::~TAO_StreamEndPoint_A ( )

virtual

Destructor.

Member Function Documentation

◆ connect_leaf()

CORBA::Boolean TAO_StreamEndPoint_A::connect_leaf	(	AVStreams::StreamEndPoint_B_ptr	the_ep,
		AVStreams::streamQoS &	the_qos,
		const AVStreams::flowSpec &	the_flows )

virtual

Used for ATM-style multicast.

◆ disconnect_leaf()

void TAO_StreamEndPoint_A::disconnect_leaf	(	AVStreams::StreamEndPoint_B_ptr	the_ep,
		const AVStreams::flowSpec &	theSpec )

virtual

Used to remove a multicast leaf.

◆ multiconnect()

CORBA::Boolean TAO_StreamEndPoint_A::multiconnect	(	AVStreams::streamQoS &	the_qos,
		AVStreams::flowSpec &	the_spec )

virtual

Used for ATM-style multicast.

The documentation for this class was generated from the following files:
