This is the "default" client strategy factor for TAO. It includes strategies that are configured through command-line options so that everything operates as if there were no dynamically-linkable strategies. More...

#include <default_client.h>

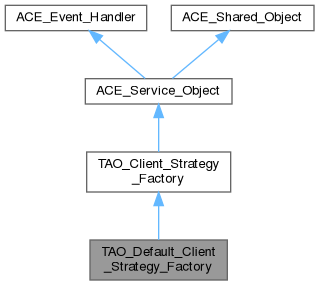

Inheritance diagram for TAO_Default_Client_Strategy_Factory:

[legend]

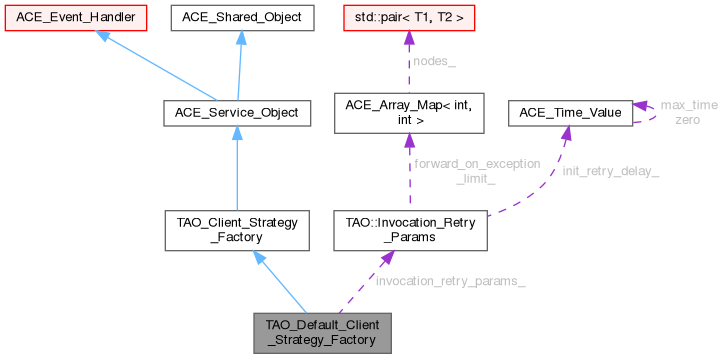

Collaboration diagram for TAO_Default_Client_Strategy_Factory:

[legend]

Public Member Functions
	TAO_Default_Client_Strategy_Factory ()
	Constructor.

virtual	~TAO_Default_Client_Strategy_Factory ()
	Destructor.

virtual int	init (int argc, ACE_TCHAR *argv[])
	Dynamic linking hook.

int	parse_args (int argc, ACE_TCHAR *argv[])
	Parse svc.conf arguments.

virtual TAO_Transport_Mux_Strategy *	create_transport_mux_strategy (TAO_Transport *transport)
	Create the correct client transport muxing strategy.

virtual ACE_Lock *	create_transport_mux_strategy_lock ()
	Create the correct lock for request muxing strategy.

virtual int	reply_dispatcher_table_size () const
	Return the size of the reply dispatcher table.

virtual int	allow_callback ()
	Does the client allow any form of callback?

virtual TAO_Wait_Strategy *	create_wait_strategy (TAO_Transport *transport)
	Create the correct client wait_for_reply strategy.

virtual TAO_Connect_Strategy *	create_connect_strategy (TAO_ORB_Core *)
	Create the correct client asynch_connect strategy.

virtual bool	use_cleanup_options () const
	Cleanup options for wait strategy.

virtual Connect_Strategy	connect_strategy () const
	Return the selected connection strategy option.

virtual const TAO::Invocation_Retry_Params &	invocation_retry_params () const

virtual Messaging::SyncScope	sync_scope () const
	Return the value to be used as the default sync scope for the ORB.

Public Member Functions inherited from TAO_Client_Strategy_Factory
virtual	~TAO_Client_Strategy_Factory ()
	Destructor.

Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)

virtual	~ACE_Service_Object ()

virtual int	suspend ()

virtual int	resume ()

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default

virtual ACE_HANDLE	get_handle () const

virtual void	set_handle (ACE_HANDLE)

virtual int	priority () const

virtual void	priority (int priority)

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler ()

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor () const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const

virtual Reference_Count	add_reference ()

virtual Reference_Count	remove_reference ()

Reference_Counting_Policy &	reference_counting_policy ()

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object ()

virtual	~ACE_Shared_Object ()

virtual int	fini ()

virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Protected Member Functions
void	report_option_value_error (const ACE_TCHAR option_name, const ACE_TCHAR option_value)

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)

Private Types
enum	Lock_Type { TAO_NULL_LOCK , TAO_THREAD_LOCK }

enum	Transport_Mux_Strategy { TAO_MUXED_TMS , TAO_EXCLUSIVE_TMS }

enum	Wait_Strategy { TAO_WAIT_ON_LEADER_FOLLOWER , TAO_WAIT_ON_REACTOR , TAO_WAIT_ON_READ , TAO_WAIT_ON_LF_NO_UPCALL }

Private Attributes
Transport_Mux_Strategy	transport_mux_strategy_
	The client Request Mux Strategy.

Wait_Strategy	wait_strategy_
	The wait-for-reply strategy.

Connect_Strategy	connect_strategy_
	The connection initiation strategy.

int	rd_table_size_
	Size of the reply dispatcher table.

Lock_Type	muxed_strategy_lock_type_
	Type of lock for the muxed_strategy.

bool	use_cleanup_options_
	Cleanupoptions for RW strategy.

TAO::Invocation_Retry_Params	invocation_retry_params_
	Retry options when exceptions occur.

Messaging::SyncScope	sync_scope_

Additional Inherited Members
Public Types inherited from TAO_Client_Strategy_Factory
enum	Connect_Strategy { TAO_BLOCKED_CONNECT , TAO_REACTIVE_CONNECT , TAO_LEADER_FOLLOWER_CONNECT }

Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Public Attributes inherited from ACE_Service_Object
	ACE_ALLOC_HOOK_DECLARE

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

This is the "default" client strategy factor for TAO. It includes strategies that are configured through command-line options so that everything operates as if there were no dynamically-linkable strategies.

Member Enumeration Documentation

◆ Lock_Type

enum TAO_Default_Client_Strategy_Factory::Lock_Type

private

Enumerator
TAO_NULL_LOCK
TAO_THREAD_LOCK

◆ Transport_Mux_Strategy

enum TAO_Default_Client_Strategy_Factory::Transport_Mux_Strategy

private

Enumerator
TAO_MUXED_TMS
TAO_EXCLUSIVE_TMS

◆ Wait_Strategy

enum TAO_Default_Client_Strategy_Factory::Wait_Strategy

private

Enumerator
TAO_WAIT_ON_LEADER_FOLLOWER
TAO_WAIT_ON_REACTOR
TAO_WAIT_ON_READ
TAO_WAIT_ON_LF_NO_UPCALL

Constructor & Destructor Documentation

◆ TAO_Default_Client_Strategy_Factory()

TAO_Default_Client_Strategy_Factory::TAO_Default_Client_Strategy_Factory ( )

Constructor.

◆ ~TAO_Default_Client_Strategy_Factory()

TAO_Default_Client_Strategy_Factory::~TAO_Default_Client_Strategy_Factory ( )

virtual

Destructor.

Member Function Documentation

◆ allow_callback()

int TAO_Default_Client_Strategy_Factory::allow_callback ( )

virtual

Does the client allow any form of callback?

Implements TAO_Client_Strategy_Factory.

◆ connect_strategy()

TAO_Client_Strategy_Factory::Connect_Strategy TAO_Default_Client_Strategy_Factory::connect_strategy ( ) const

virtual

Return the selected connection strategy option.

Implements TAO_Client_Strategy_Factory.

◆ create_connect_strategy()

TAO_Connect_Strategy * TAO_Default_Client_Strategy_Factory::create_connect_strategy ( TAO_ORB_Core * )

virtual

Create the correct client asynch_connect strategy.

Implements TAO_Client_Strategy_Factory.

◆ create_transport_mux_strategy()

TAO_Transport_Mux_Strategy * TAO_Default_Client_Strategy_Factory::create_transport_mux_strategy ( TAO_Transport * transport )

virtual

Create the correct client transport muxing strategy.

Implements TAO_Client_Strategy_Factory.

◆ create_transport_mux_strategy_lock()

ACE_Lock * TAO_Default_Client_Strategy_Factory::create_transport_mux_strategy_lock ( )

virtual

Create the correct lock for request muxing strategy.

Implements TAO_Client_Strategy_Factory.

◆ create_wait_strategy()

TAO_Wait_Strategy * TAO_Default_Client_Strategy_Factory::create_wait_strategy ( TAO_Transport * transport )

virtual

Create the correct client wait_for_reply strategy.

Implements TAO_Client_Strategy_Factory.

◆ init()

int TAO_Default_Client_Strategy_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[] )

virtual

Dynamic linking hook.

Reimplemented from ACE_Shared_Object.

◆ invocation_retry_params()

const TAO::Invocation_Retry_Params & TAO_Default_Client_Strategy_Factory::invocation_retry_params ( ) const

virtual

Return the parameters used to optionally retry invocation after an exception occurs.

Implements TAO_Client_Strategy_Factory.

◆ parse_args()

int TAO_Default_Client_Strategy_Factory::parse_args	(	int	argc,
		ACE_TCHAR *	argv[] )

Parse svc.conf arguments.

◆ reply_dispatcher_table_size()

int TAO_Default_Client_Strategy_Factory::reply_dispatcher_table_size ( ) const

virtual

Return the size of the reply dispatcher table.

Implements TAO_Client_Strategy_Factory.

◆ report_option_value_error()

void TAO_Default_Client_Strategy_Factory::report_option_value_error	(	const ACE_TCHAR *	option_name,
		const ACE_TCHAR *	option_value )

protected

◆ sync_scope()

Messaging::SyncScope TAO_Default_Client_Strategy_Factory::sync_scope ( ) const

virtual

Return the value to be used as the default sync scope for the ORB.

Implements TAO_Client_Strategy_Factory.

◆ use_cleanup_options()

bool TAO_Default_Client_Strategy_Factory::use_cleanup_options ( ) const

virtual

Cleanup options for wait strategy.

Only applicable to RW wait strategy

Implements TAO_Client_Strategy_Factory.

Member Data Documentation

◆ connect_strategy_

Connect_Strategy TAO_Default_Client_Strategy_Factory::connect_strategy_

private

The connection initiation strategy.

◆ invocation_retry_params_

TAO::Invocation_Retry_Params TAO_Default_Client_Strategy_Factory::invocation_retry_params_

private

Retry options when exceptions occur.

◆ muxed_strategy_lock_type_

Lock_Type TAO_Default_Client_Strategy_Factory::muxed_strategy_lock_type_

private

Type of lock for the muxed_strategy.

◆ rd_table_size_

int TAO_Default_Client_Strategy_Factory::rd_table_size_

private

Size of the reply dispatcher table.

◆ sync_scope_

Messaging::SyncScope TAO_Default_Client_Strategy_Factory::sync_scope_

private

The default sync scope used with oneways when a policy does not override

◆ transport_mux_strategy_

Transport_Mux_Strategy TAO_Default_Client_Strategy_Factory::transport_mux_strategy_

private

The client Request Mux Strategy.

◆ use_cleanup_options_

bool TAO_Default_Client_Strategy_Factory::use_cleanup_options_

private

Cleanupoptions for RW strategy.

◆ wait_strategy_

Wait_Strategy TAO_Default_Client_Strategy_Factory::wait_strategy_

private

The wait-for-reply strategy.

The documentation for this class was generated from the following files:
