ACE_Service_Type_Impl Class Reference

The abstract base class of the hierarchy that defines the contents of the ACE_Service_Repository. The subclasses of this class allow the configuration of ACE_Service_Objects, ACE_Modules, and ACE_Streams. More...

#include <Service_Types.h>

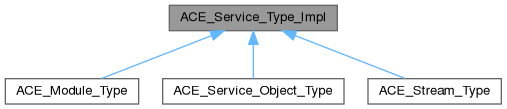

Inheritance diagram for ACE_Service_Type_Impl:

Public Member Functions
	ACE_Service_Type_Impl (void *object, const ACE_TCHAR *s_name, u_int flags=0, ACE_Service_Object_Exterminator gobbler=0, int stype=ACE_Service_Type::INVALID_TYPE)
virtual	~ACE_Service_Type_Impl ()
virtual int	suspend () const =0
virtual int	resume () const =0
virtual int	init (int argc, ACE_TCHAR *argv[]) const =0
virtual int	fini () const
virtual int	info (ACE_TCHAR **str, size_t len) const =0
void *	object () const
	The pointer to the service.
const ACE_TCHAR *	name () const
	Get the name of the service.
void	name (const ACE_TCHAR *)
	Set the name of the service.
void	dump () const
	Dump the state of an object.
int	service_type () const
	get the service_type of this service
void	service_type (int stype)
	set the service_type of this service

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Protected Attributes
const ACE_TCHAR *	name_
	Name of the service.
void *	obj_
ACE_Service_Object_Exterminator	gobbler_
	Destroy function to deallocate obj_.
u_int	flags_
	Flags that control serivce behavior (particularly deletion).
int	service_type_

Detailed Description

The abstract base class of the hierarchy that defines the contents of the ACE_Service_Repository. The subclasses of this class allow the configuration of ACE_Service_Objects, ACE_Modules, and ACE_Streams.

This class provides the root of the implementation hierarchy of the "Bridge" pattern. It maintains a pointer to the appropriate type of service implementation, i.e., ACE_Service_Object, ACE_Module, or ACE_Stream.

Constructor & Destructor Documentation

ACE_Service_Type_Impl()

ACE_Service_Type_Impl::ACE_Service_Type_Impl	(	void *	object,
		const ACE_TCHAR *	s_name,
		u_int	flags = 0,
		ACE_Service_Object_Exterminator	gobbler = 0,
		int	stype = ACE_Service_Type::INVALID_TYPE )

~ACE_Service_Type_Impl()

ACE_Service_Type_Impl::~ACE_Service_Type_Impl ( )

virtual

Member Function Documentation

dump()

void ACE_Service_Type_Impl::dump

(

)

const

Dump the state of an object.

fini()

int ACE_Service_Type_Impl::fini ( ) const

virtual

Reimplemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

info()

virtual int ACE_Service_Type_Impl::info ( ACE_TCHAR ** str, size_t len ) const

pure virtual

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

init()

virtual int ACE_Service_Type_Impl::init ( int argc, ACE_TCHAR * argv[] ) const

pure virtual

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

name() [1/2]

const ACE_TCHAR * ACE_Service_Type_Impl::name ( ) const

inline

Get the name of the service.

name() [2/2]

void ACE_Service_Type_Impl::name ( const ACE_TCHAR * n )

inline

Set the name of the service.

object()

void * ACE_Service_Type_Impl::object ( ) const

inline

The pointer to the service.

resume()

virtual int ACE_Service_Type_Impl::resume ( ) const

pure virtual

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

service_type() [1/2]

int ACE_Service_Type_Impl::service_type ( ) const

inline

get the service_type of this service

service_type() [2/2]

void ACE_Service_Type_Impl::service_type ( int stype )

inline

set the service_type of this service

suspend()

virtual int ACE_Service_Type_Impl::suspend ( ) const

pure virtual

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

Member Data Documentation

ACE_ALLOC_HOOK_DECLARE

ACE_Service_Type_Impl::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

flags_

u_int ACE_Service_Type_Impl::flags_

protected

Flags that control serivce behavior (particularly deletion).

gobbler_

ACE_Service_Object_Exterminator ACE_Service_Type_Impl::gobbler_

protected

Destroy function to deallocate obj_.

name_

const ACE_TCHAR* ACE_Service_Type_Impl::name_

protected

Name of the service.

obj_

void* ACE_Service_Type_Impl::obj_

protected

Pointer to object that implements the service. This actually points to an ACE_Service_Object, ACE_Module, or ACE_Stream.

service_type_

int ACE_Service_Type_Impl::service_type_

protected

type of this service Used to properly manage the lifecycle of ACE_Modules and ACE_Streams during shutdown

---

The documentation for this class was generated from the following files:

• Service_Types.h
• Service_Types.cpp
• Service_Types.inl
