Implements "barrier synchronization" using ACE_Thread_Mutexes! More...

#include <Barrier.h>

Inheritance diagram for ACE_Thread_Barrier:

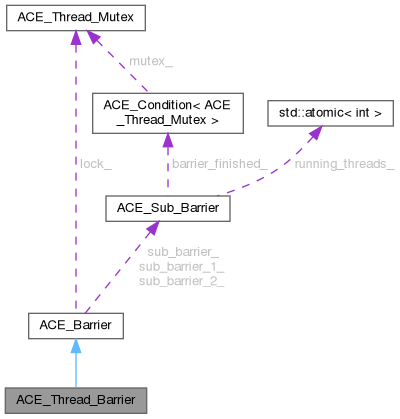

Collaboration diagram for ACE_Thread_Barrier:

[legend]

Public Member Functions
	ACE_Thread_Barrier (unsigned int count, const ACE_TCHAR *name=0)
	Create a Thread_Barrier, passing in the optional name.

	~ACE_Thread_Barrier ()=default
	Default destructor.

void	dump () const
	Dump the state of an object.

Public Member Functions inherited from ACE_Barrier
	ACE_Barrier (unsigned int count, const ACE_TCHAR name=0, void arg=0)
	Initialize the barrier to synchronize count threads.

	~ACE_Barrier ()=default
	Default destructor.

int	wait ()

int	shutdown ()

void	dump () const
	Dump the state of an object.

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Public Attributes inherited from ACE_Barrier
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Additional Inherited Members
Protected Attributes inherited from ACE_Barrier
ACE_Thread_Mutex	lock_
	Serialize access to the barrier state.

int	current_generation_

int	count_
	Total number of threads that can be waiting at any one time.

ACE_Sub_Barrier	sub_barrier_1_

ACE_Sub_Barrier	sub_barrier_2_

ACE_Sub_Barrier *	sub_barrier_ [2]

Detailed Description

Implements "barrier synchronization" using ACE_Thread_Mutexes!

This class is just a simple wrapper for ACE_Barrier that selects the USYNC_THREAD variant for the locks.

Constructor & Destructor Documentation

ACE_Thread_Barrier::ACE_Thread_Barrier	(	unsigned int	count,
		const ACE_TCHAR *	name = 0 )

Create a Thread_Barrier, passing in the optional name.

ACE_Thread_Barrier::~ACE_Thread_Barrier ( )

default

Default destructor.

void ACE_Thread_Barrier::dump ( ) const

Dump the state of an object.

ACE_Thread_Barrier::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

The documentation for this class was generated from the following files:
