TAO_EC_TPC_Dispatching Class Reference

Dispatching strategy that isolates deliveries to a consumer from any other. More...

#include <EC_TPC_Dispatching.h>

Inheritance diagram for TAO_EC_TPC_Dispatching:

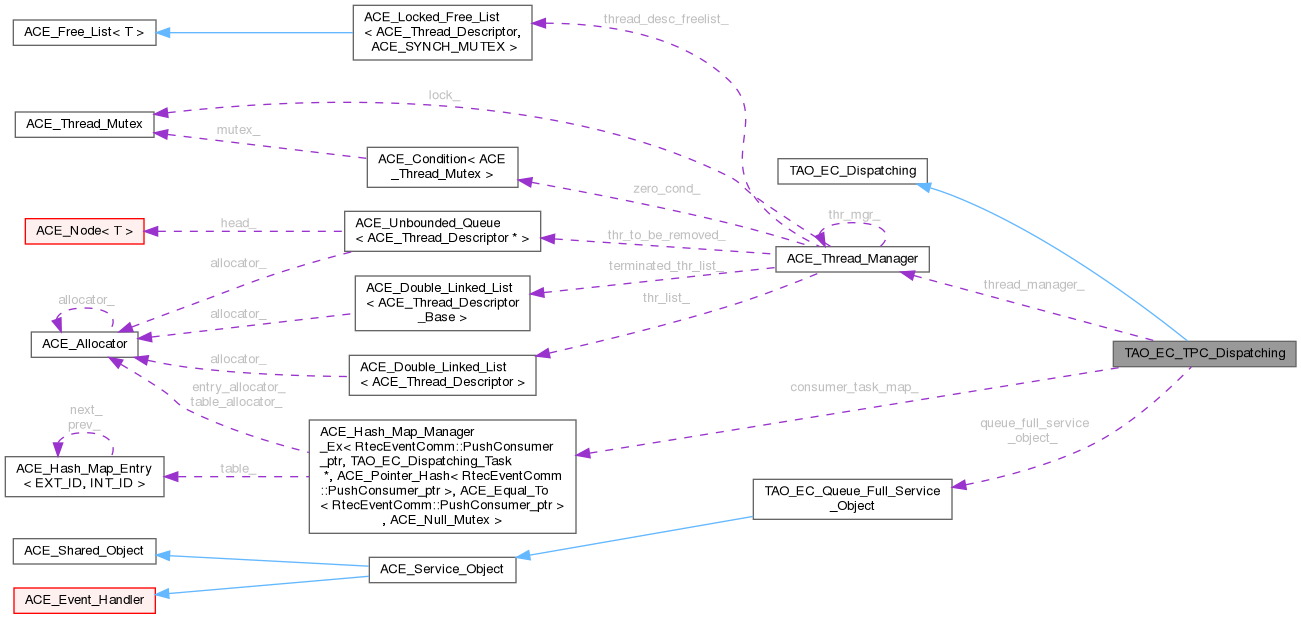

Collaboration diagram for TAO_EC_TPC_Dispatching:

Public Member Functions
	TAO_EC_TPC_Dispatching (int nthreads, int thread_creation_flags, int thread_priority, int force_activate, TAO_EC_Queue_Full_Service_Object *so)
	~TAO_EC_TPC_Dispatching ()
virtual void	activate ()
virtual void	shutdown ()
virtual void	push (TAO_EC_ProxyPushSupplier *proxy, RtecEventComm::PushConsumer_ptr consumer, const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)
virtual void	push_nocopy (TAO_EC_ProxyPushSupplier *proxy, RtecEventComm::PushConsumer_ptr consumer, RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)
int	add_consumer (RtecEventComm::PushConsumer_ptr consumer)
int	remove_consumer (RtecEventComm::PushConsumer_ptr consumer)
Public Member Functions inherited from TAO_EC_Dispatching
virtual	~TAO_EC_Dispatching ()
	Destructor...

Private Types
typedef ACE_Hash_Map_Manager_Ex< RtecEventComm::PushConsumer_ptr, TAO_EC_Dispatching_Task *, ACE_Pointer_Hash< RtecEventComm::PushConsumer_ptr >, ACE_Equal_To< RtecEventComm::PushConsumer_ptr >, ACE_Null_Mutex >	MAPTYPE

Private Attributes
ACE_Thread_Manager	thread_manager_
int	thread_creation_flags_
int	thread_priority_
	The priority of the dispatching threads.
MAPTYPE	consumer_task_map_
TAO_SYNCH_MUTEX	lock_
TAO_EC_Queue_Full_Service_Object *	queue_full_service_object_

Detailed Description

Dispatching strategy that isolates deliveries to a consumer from any other.

This strategy uses a thread per consumer, and was specifically designed to isolate the effects of an ill-behaved consumer from affecting other consumers.

Member Typedef Documentation

MAPTYPE

typedef ACE_Hash_Map_Manager_Ex<RtecEventComm::PushConsumer_ptr,TAO_EC_Dispatching_Task*,ACE_Pointer_Hash<RtecEventComm::PushConsumer_ptr>,ACE_Equal_To<RtecEventComm::PushConsumer_ptr>,ACE_Null_Mutex> TAO_EC_TPC_Dispatching::MAPTYPE

private

Constructor & Destructor Documentation

TAO_EC_TPC_Dispatching()

TAO_EC_TPC_Dispatching::TAO_EC_TPC_Dispatching	(	int	nthreads,
		int	thread_creation_flags,
		int	thread_priority,
		int	force_activate,
		TAO_EC_Queue_Full_Service_Object *	so )

~TAO_EC_TPC_Dispatching()

TAO_EC_TPC_Dispatching::~TAO_EC_TPC_Dispatching

(

)

Member Function Documentation

activate()

void TAO_EC_TPC_Dispatching::activate ( )

virtual

Initialize all the data structures, activate any internal threads, etc.

Implements TAO_EC_Dispatching.

add_consumer()

int TAO_EC_TPC_Dispatching::add_consumer

(

RtecEventComm::PushConsumer_ptr

consumer

)

push()

void TAO_EC_TPC_Dispatching::push ( TAO_EC_ProxyPushSupplier * proxy, RtecEventComm::PushConsumer_ptr consumer, const RtecEventComm::EventSet & event, TAO_EC_QOS_Info & qos_info )

virtual

The consumer represented by proxy should receive event. It can use the information in qos_info to determine the event priority (among other things).

Implements TAO_EC_Dispatching.

push_nocopy()

void TAO_EC_TPC_Dispatching::push_nocopy ( TAO_EC_ProxyPushSupplier * proxy, RtecEventComm::PushConsumer_ptr consumer, RtecEventComm::EventSet & event, TAO_EC_QOS_Info & qos_info )

virtual

Implements TAO_EC_Dispatching.

remove_consumer()

int TAO_EC_TPC_Dispatching::remove_consumer

(

RtecEventComm::PushConsumer_ptr

consumer

)

shutdown()

void TAO_EC_TPC_Dispatching::shutdown ( )

virtual

Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implements TAO_EC_Dispatching.

Member Data Documentation

consumer_task_map_

MAPTYPE TAO_EC_TPC_Dispatching::consumer_task_map_

private

lock_

TAO_SYNCH_MUTEX TAO_EC_TPC_Dispatching::lock_

private

queue_full_service_object_

TAO_EC_Queue_Full_Service_Object* TAO_EC_TPC_Dispatching::queue_full_service_object_

private

thread_creation_flags_

int TAO_EC_TPC_Dispatching::thread_creation_flags_

private

The flags (THR_BOUND, THR_NEW_LWP, etc.) used to create the dispatching threads.

thread_manager_

ACE_Thread_Manager TAO_EC_TPC_Dispatching::thread_manager_

private

thread_priority_

int TAO_EC_TPC_Dispatching::thread_priority_

private

The priority of the dispatching threads.

---

The documentation for this class was generated from the following files:

• EC_TPC_Dispatching.h
• EC_TPC_Dispatching.cpp
