#include <Notify_Constraint_Visitors.h>

Inheritance diagram for TAO_Notify_Constraint_Visitor:

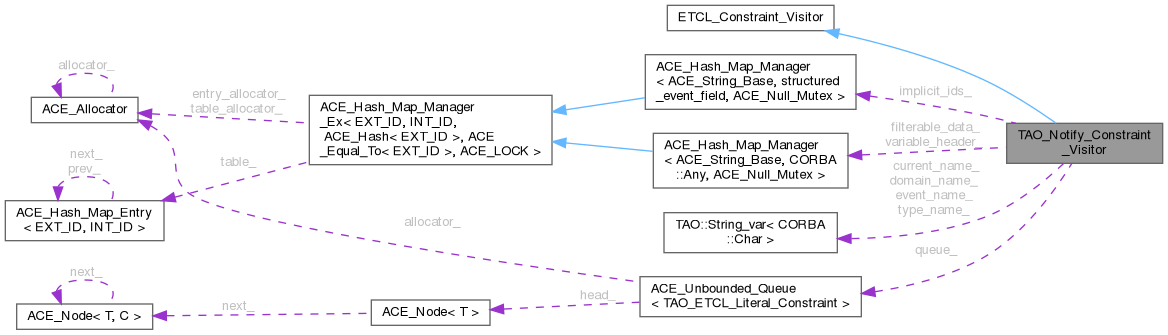

Collaboration diagram for TAO_Notify_Constraint_Visitor:

[legend]

Public Member Functions
	TAO_Notify_Constraint_Visitor ()
	Constructor.

int	bind_structured_event (const CosNotification::StructuredEvent &s_event)
	Put the event data into our hash map.

CORBA::Boolean	evaluate_constraint (ETCL_Constraint *root)

virtual int	visit_literal (ETCL_Literal_Constraint *)

virtual int	visit_identifier (ETCL_Identifier *)

virtual int	visit_union_value (ETCL_Union_Value *)

virtual int	visit_union_pos (ETCL_Union_Pos *)

virtual int	visit_component_pos (ETCL_Component_Pos *)

virtual int	visit_component_assoc (ETCL_Component_Assoc *)

virtual int	visit_component_array (ETCL_Component_Array *)

virtual int	visit_special (ETCL_Special *)

virtual int	visit_component (ETCL_Component *)

virtual int	visit_dot (ETCL_Dot *)

virtual int	visit_eval (ETCL_Eval *)

virtual int	visit_default (ETCL_Default *)

virtual int	visit_exist (ETCL_Exist *)

virtual int	visit_unary_expr (ETCL_Unary_Expr *)

virtual int	visit_binary_expr (ETCL_Binary_Expr *)

virtual int	visit_preference (ETCL_Preference *)

Protected Types
enum	structured_event_field { FILTERABLE_DATA , HEADER , FIXED_HEADER , EVENT_TYPE , DOMAIN_NAME , TYPE_NAME , EVENT_NAME , VARIABLE_HEADER , REMAINDER_OF_BODY , EMPTY }

Protected Member Functions
int	visit_or (ETCL_Binary_Expr *)

int	visit_and (ETCL_Binary_Expr *)

int	visit_twiddle (ETCL_Binary_Expr *)

int	visit_in (ETCL_Binary_Expr *)

int	visit_binary_op (ETCL_Binary_Expr *binary_expr, int op_type)

CORBA::Boolean	sequence_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)

CORBA::Boolean	array_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)

CORBA::Boolean	struct_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)

CORBA::Boolean	union_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)

CORBA::Boolean	any_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)

CORBA::Boolean	simple_type_match (int expr_type, CORBA::TCKind tc_kind)

Protected Attributes
structured_event_field	implicit_id_
	Storage for the type of implicit id the component has (if any).

ACE_Hash_Map_Manager< ACE_CString, structured_event_field, ACE_Null_Mutex >	implicit_ids_

ACE_Hash_Map_Manager< ACE_CString, CORBA::Any, ACE_Null_Mutex >	filterable_data_
	Used to lookup names and values in the event's 'filterable_data' field.

ACE_Hash_Map_Manager< ACE_CString, CORBA::Any, ACE_Null_Mutex >	variable_header_
	Used to lookup names and values in the event's 'variable_header' field.

CORBA::String_var	domain_name_

CORBA::String_var	type_name_

CORBA::String_var	event_name_

CORBA::Any	remainder_of_body_
	Storage for the structured_event's 'remainder_of_body' field.

ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >	queue_
	The result of a non_boolean operation.

CORBA::Any_var	current_value_

CORBA::String_var	current_name_

Static Protected Attributes
static const size_t	implicit_ids_size_ = 27

static const size_t	filterable_data_size_ = 31

static const size_t	variable_header_size_ = 31

Member Enumeration Documentation

◆ structured_event_field

enum TAO_Notify_Constraint_Visitor::structured_event_field

protected

Enumerator
FILTERABLE_DATA
HEADER
FIXED_HEADER
EVENT_TYPE
DOMAIN_NAME
TYPE_NAME
EVENT_NAME
VARIABLE_HEADER
REMAINDER_OF_BODY
EMPTY

Constructor & Destructor Documentation

◆ TAO_Notify_Constraint_Visitor()

TAO_Notify_Constraint_Visitor::TAO_Notify_Constraint_Visitor ( )

Constructor.

Member Function Documentation

◆ any_does_contain()

CORBA::Boolean TAO_Notify_Constraint_Visitor::any_does_contain	(	const CORBA::Any *	any,
		TAO_ETCL_Literal_Constraint &	item )

protected

◆ array_does_contain()

CORBA::Boolean TAO_Notify_Constraint_Visitor::array_does_contain	(	const CORBA::Any *	any,
		TAO_ETCL_Literal_Constraint &	item )

protected

◆ bind_structured_event()

int TAO_Notify_Constraint_Visitor::bind_structured_event ( const CosNotification::StructuredEvent & s_event )

Put the event data into our hash map.

◆ evaluate_constraint()

CORBA::Boolean TAO_Notify_Constraint_Visitor::evaluate_constraint ( ETCL_Constraint * root )

Returns true if the event satisfies the constraint represented by the the expression tree rooted at root, false if it doesn't. If an error occurs during the process, the traversal automatically fails.

◆ sequence_does_contain()

CORBA::Boolean TAO_Notify_Constraint_Visitor::sequence_does_contain	(	const CORBA::Any *	any,
		TAO_ETCL_Literal_Constraint &	item )

protected

◆ simple_type_match()

CORBA::Boolean TAO_Notify_Constraint_Visitor::simple_type_match	(	int	expr_type,
		CORBA::TCKind	tc_kind )

protected

Utility function to compare a TAO_ETCL_Literal_Constraint type and a type code.

◆ struct_does_contain()

CORBA::Boolean TAO_Notify_Constraint_Visitor::struct_does_contain	(	const CORBA::Any *	any,
		TAO_ETCL_Literal_Constraint &	item )

protected

◆ union_does_contain()

CORBA::Boolean TAO_Notify_Constraint_Visitor::union_does_contain	(	const CORBA::Any *	any,
		TAO_ETCL_Literal_Constraint &	item )

protected

◆ visit_and()

int TAO_Notify_Constraint_Visitor::visit_and ( ETCL_Binary_Expr * binary )

protected

◆ visit_binary_expr()

int TAO_Notify_Constraint_Visitor::visit_binary_expr ( ETCL_Binary_Expr * binary_expr )

virtual

◆ visit_binary_op()

int TAO_Notify_Constraint_Visitor::visit_binary_op	(	ETCL_Binary_Expr *	binary_expr,
		int	op_type )

protected

◆ visit_component()

int TAO_Notify_Constraint_Visitor::visit_component ( ETCL_Component * component )

virtual

◆ visit_component_array()

int TAO_Notify_Constraint_Visitor::visit_component_array ( ETCL_Component_Array * array )

virtual

◆ visit_component_assoc()

int TAO_Notify_Constraint_Visitor::visit_component_assoc ( ETCL_Component_Assoc * assoc )

virtual

◆ visit_component_pos()

int TAO_Notify_Constraint_Visitor::visit_component_pos ( ETCL_Component_Pos * pos )

virtual

◆ visit_default()

int TAO_Notify_Constraint_Visitor::visit_default ( ETCL_Default * def )

virtual

◆ visit_dot()

int TAO_Notify_Constraint_Visitor::visit_dot ( ETCL_Dot * dot )

virtual

◆ visit_eval()

int TAO_Notify_Constraint_Visitor::visit_eval ( ETCL_Eval * eval )

virtual

◆ visit_exist()

int TAO_Notify_Constraint_Visitor::visit_exist ( ETCL_Exist * exist )

virtual

◆ visit_identifier()

int TAO_Notify_Constraint_Visitor::visit_identifier ( ETCL_Identifier * ident )

virtual

◆ visit_in()

int TAO_Notify_Constraint_Visitor::visit_in ( ETCL_Binary_Expr * binary )

protected

◆ visit_literal()

int TAO_Notify_Constraint_Visitor::visit_literal ( ETCL_Literal_Constraint * literal )

virtual

◆ visit_or()

int TAO_Notify_Constraint_Visitor::visit_or ( ETCL_Binary_Expr * binary )

protected

◆ visit_preference()

int TAO_Notify_Constraint_Visitor::visit_preference ( ETCL_Preference * )

virtual

◆ visit_special()

int TAO_Notify_Constraint_Visitor::visit_special ( ETCL_Special * special )

virtual

◆ visit_twiddle()

int TAO_Notify_Constraint_Visitor::visit_twiddle ( ETCL_Binary_Expr * binary )

protected

◆ visit_unary_expr()

int TAO_Notify_Constraint_Visitor::visit_unary_expr ( ETCL_Unary_Expr * unary_expr )

virtual

◆ visit_union_pos()

int TAO_Notify_Constraint_Visitor::visit_union_pos ( ETCL_Union_Pos * union_pos )

virtual

◆ visit_union_value()

int TAO_Notify_Constraint_Visitor::visit_union_value ( ETCL_Union_Value * union_value )

virtual

Member Data Documentation

◆ current_name_

CORBA::String_var TAO_Notify_Constraint_Visitor::current_name_

protected

Holder for a string name in the event fields fixed_header, variable_header, or filterable_data.

◆ current_value_

CORBA::Any_var TAO_Notify_Constraint_Visitor::current_value_

protected

Holder for a value found in the event fields filterable_data, variable_header or remainder_of_body.

◆ domain_name_

CORBA::String_var TAO_Notify_Constraint_Visitor::domain_name_

protected

Storage for string names under the structured event's 'fixed_header' field.

◆ event_name_

CORBA::String_var TAO_Notify_Constraint_Visitor::event_name_

protected

◆ filterable_data_

ACE_Hash_Map_Manager<ACE_CString, CORBA::Any, ACE_Null_Mutex> TAO_Notify_Constraint_Visitor::filterable_data_

protected

Used to lookup names and values in the event's 'filterable_data' field.

◆ filterable_data_size_

const size_t TAO_Notify_Constraint_Visitor::filterable_data_size_ = 31

staticprotected

Size of filterable_data_ hash map.

Todo: define inline once VC6 support is deprecated.

◆ implicit_id_

structured_event_field TAO_Notify_Constraint_Visitor::implicit_id_

protected

Storage for the type of implicit id the component has (if any).

◆ implicit_ids_

ACE_Hash_Map_Manager<ACE_CString, structured_event_field, ACE_Null_Mutex> TAO_Notify_Constraint_Visitor::implicit_ids_

protected

Lookup table for the implicit ids, to avoid string comparisons in derived visitors.

◆ implicit_ids_size_

const size_t TAO_Notify_Constraint_Visitor::implicit_ids_size_ = 27

staticprotected

Size of implicit_ids_ hash map.

Note: A fixed set of 9 keys are stored in this map. In the absence of a minimal perfect hash, ACE's default hash_pjw() and a hash size of 27 ensures each element is hashed to a unique bucket.

Todo: define inline once VC6 support is deprecated.

◆ queue_

ACE_Unbounded_Queue<TAO_ETCL_Literal_Constraint> TAO_Notify_Constraint_Visitor::queue_

protected

The result of a non_boolean operation.

◆ remainder_of_body_

CORBA::Any TAO_Notify_Constraint_Visitor::remainder_of_body_

protected

Storage for the structured_event's 'remainder_of_body' field.

◆ type_name_

CORBA::String_var TAO_Notify_Constraint_Visitor::type_name_

protected

◆ variable_header_

ACE_Hash_Map_Manager<ACE_CString, CORBA::Any, ACE_Null_Mutex> TAO_Notify_Constraint_Visitor::variable_header_

protected

Used to lookup names and values in the event's 'variable_header' field.

◆ variable_header_size_

const size_t TAO_Notify_Constraint_Visitor::variable_header_size_ = 31

staticprotected

Size of variable_header_ hash map.

Todo: define inline once VC6 support is deprecated.

The documentation for this class was generated from the following files:
