TAO_CEC_Reactive_SupplierControl Class Reference

SupplierControl. More...

#include <CEC_Reactive_SupplierControl.h>

Inheritance diagram for TAO_CEC_Reactive_SupplierControl:

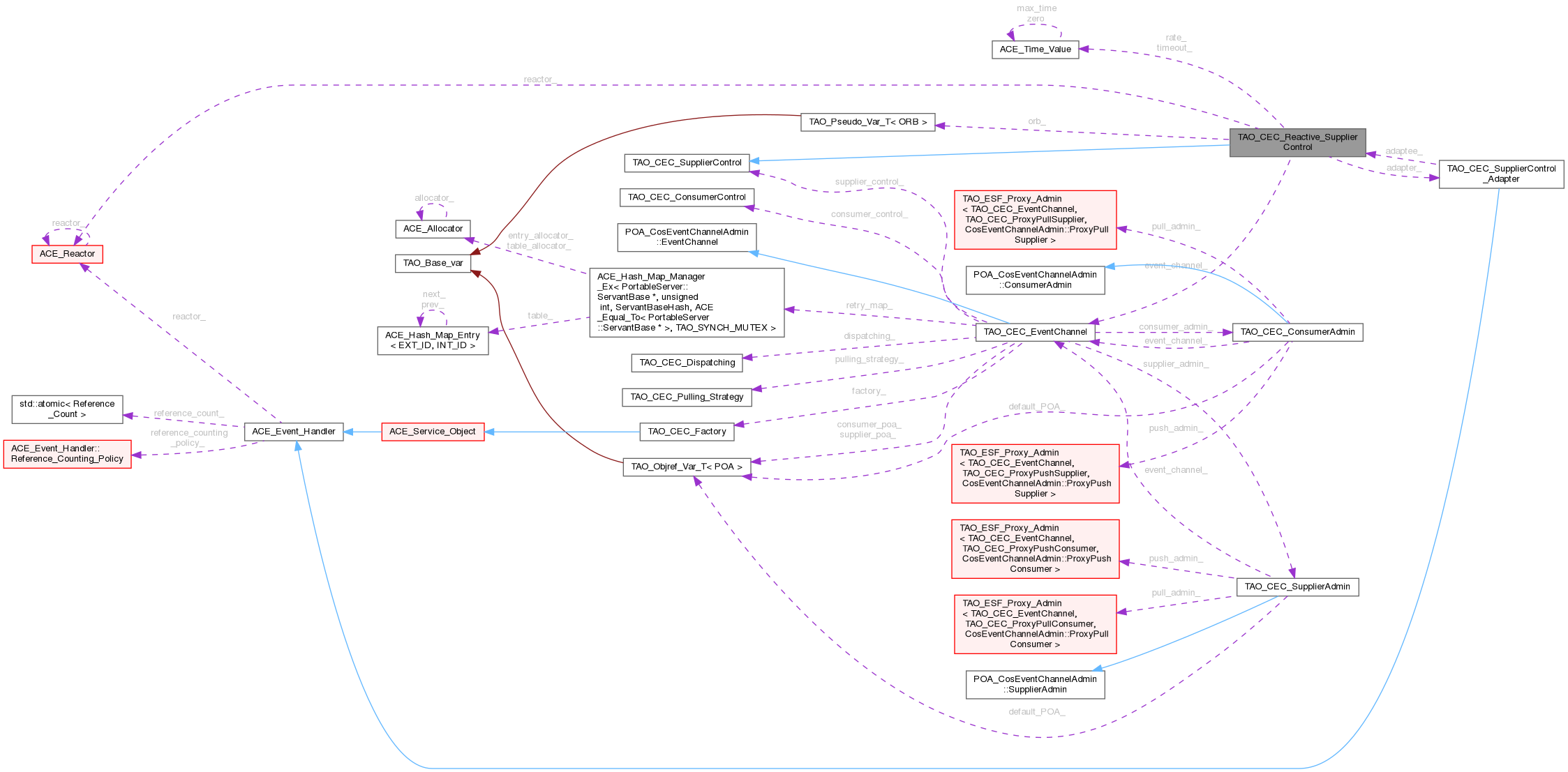

Collaboration diagram for TAO_CEC_Reactive_SupplierControl:

Public Member Functions
	TAO_CEC_Reactive_SupplierControl (const ACE_Time_Value &rate, const ACE_Time_Value &timeout, unsigned int retries, TAO_CEC_EventChannel *event_channel, CORBA::ORB_ptr orb)
virtual	~TAO_CEC_Reactive_SupplierControl ()
	Constructor for the typed ec.
void	handle_timeout (const ACE_Time_Value &tv, const void *arg)
	Receive the timeout from the adapter.
virtual int	activate ()
virtual int	shutdown ()
virtual void	supplier_not_exist (TAO_CEC_ProxyPushConsumer *proxy)
virtual void	supplier_not_exist (TAO_CEC_ProxyPullConsumer *proxy)
virtual void	system_exception (TAO_CEC_ProxyPullConsumer *proxy, CORBA::SystemException &)
	Some system exception was rasied while trying to push an event.
virtual bool	need_to_disconnect (PortableServer::ServantBase *proxy)
virtual void	successful_transmission (PortableServer::ServantBase *proxy)
	Allow others to inform us when a send or receive was successful.
Public Member Functions inherited from TAO_CEC_SupplierControl
	TAO_CEC_SupplierControl ()
	Constructor.
virtual	~TAO_CEC_SupplierControl ()
	destructor...

Private Member Functions
void	query_suppliers ()

Private Attributes
ACE_Time_Value	rate_
	The polling rate.
ACE_Time_Value	timeout_
	The polling timeout.
unsigned int	retries_
	The number of retries per proxy until it is disconnected.
TAO_CEC_SupplierControl_Adapter	adapter_
	The Adapter for the reactor events.
TAO_CEC_EventChannel *	event_channel_
	The event channel.
CORBA::ORB_var	orb_
	The typed event channel.
CORBA::PolicyCurrent_var	policy_current_
	To control the timeout policy in the thread.
CORBA::PolicyList	policy_list_
	Precomputed policy list to the set timeout.
ACE_Reactor *	reactor_
	The ORB reactor.

Detailed Description

SupplierControl.

Defines the interface for the supplier control strategy. This strategy handles misbehaving or failing suppliers. = MEMORY MANAGEMENT = LOCKING = TODO

Constructor & Destructor Documentation

TAO_CEC_Reactive_SupplierControl()

TAO_CEC_Reactive_SupplierControl::TAO_CEC_Reactive_SupplierControl	(	const ACE_Time_Value &	rate,
		const ACE_Time_Value &	timeout,
		unsigned int	retries,
		TAO_CEC_EventChannel *	event_channel,
		CORBA::ORB_ptr	orb )

Constructor. It does not assume ownership of the event_channel parameter.

~TAO_CEC_Reactive_SupplierControl()

TAO_CEC_Reactive_SupplierControl::~TAO_CEC_Reactive_SupplierControl ( )

virtual

Constructor for the typed ec.

destructor...

Member Function Documentation

activate()

int TAO_CEC_Reactive_SupplierControl::activate ( )

virtual

Activate any internal threads or timers used to poll the state of the suppliers

Reimplemented from TAO_CEC_SupplierControl.

handle_timeout()

void TAO_CEC_Reactive_SupplierControl::handle_timeout	(	const ACE_Time_Value &	tv,
		const void *	arg )

Receive the timeout from the adapter.

need_to_disconnect()

bool TAO_CEC_Reactive_SupplierControl::need_to_disconnect ( PortableServer::ServantBase * proxy )

virtual

Do we need to disconnect this supplier? The parameter type for proxy is PortableServer::ServantBase* due to the fact that this method will be used for TAO_CEC_ProxyPushSupplier's and TAO_CEC_ProxyPullSupplier's.

Reimplemented from TAO_CEC_SupplierControl.

query_suppliers()

void TAO_CEC_Reactive_SupplierControl::query_suppliers ( )

private

Check if the suppliers still exists. It is a helper method for handle_timeout() to isolate the exceptions.

shutdown()

int TAO_CEC_Reactive_SupplierControl::shutdown ( )

virtual

Reimplemented from TAO_CEC_SupplierControl.

successful_transmission()

void TAO_CEC_Reactive_SupplierControl::successful_transmission ( PortableServer::ServantBase * proxy )

virtual

Allow others to inform us when a send or receive was successful.

Reimplemented from TAO_CEC_SupplierControl.

supplier_not_exist() [1/2]

void TAO_CEC_Reactive_SupplierControl::supplier_not_exist ( TAO_CEC_ProxyPullConsumer * proxy )

virtual

Invoked by helper classes when they detect that a supplier does not exists (i.e. _non_existent() returns true and/or the CORBA::OBJECT_NOT_EXIST exception has been raised).

Reimplemented from TAO_CEC_SupplierControl.

supplier_not_exist() [2/2]

void TAO_CEC_Reactive_SupplierControl::supplier_not_exist ( TAO_CEC_ProxyPushConsumer * proxy )

virtual

Invoked by helper classes when they detect that a supplier does not exists (i.e. _non_existent() returns true and/or the CORBA::OBJECT_NOT_EXIST exception has been raised).

Reimplemented from TAO_CEC_SupplierControl.

system_exception()

void TAO_CEC_Reactive_SupplierControl::system_exception ( TAO_CEC_ProxyPullConsumer * proxy, CORBA::SystemException &  )

virtual

Some system exception was rasied while trying to push an event.

Reimplemented from TAO_CEC_SupplierControl.

Member Data Documentation

adapter_

TAO_CEC_SupplierControl_Adapter TAO_CEC_Reactive_SupplierControl::adapter_

private

The Adapter for the reactor events.

event_channel_

TAO_CEC_EventChannel* TAO_CEC_Reactive_SupplierControl::event_channel_

private

The event channel.

orb_

CORBA::ORB_var TAO_CEC_Reactive_SupplierControl::orb_

private

The typed event channel.

The ORB

policy_current_

CORBA::PolicyCurrent_var TAO_CEC_Reactive_SupplierControl::policy_current_

private

To control the timeout policy in the thread.

policy_list_

CORBA::PolicyList TAO_CEC_Reactive_SupplierControl::policy_list_

private

Precomputed policy list to the set timeout.

rate_

ACE_Time_Value TAO_CEC_Reactive_SupplierControl::rate_

private

The polling rate.

reactor_

ACE_Reactor* TAO_CEC_Reactive_SupplierControl::reactor_

private

The ORB reactor.

retries_

unsigned int TAO_CEC_Reactive_SupplierControl::retries_

private

The number of retries per proxy until it is disconnected.

timeout_

ACE_Time_Value TAO_CEC_Reactive_SupplierControl::timeout_

private

The polling timeout.

---

The documentation for this class was generated from the following files:

• CEC_Reactive_SupplierControl.h
• CEC_Reactive_SupplierControl.cpp
